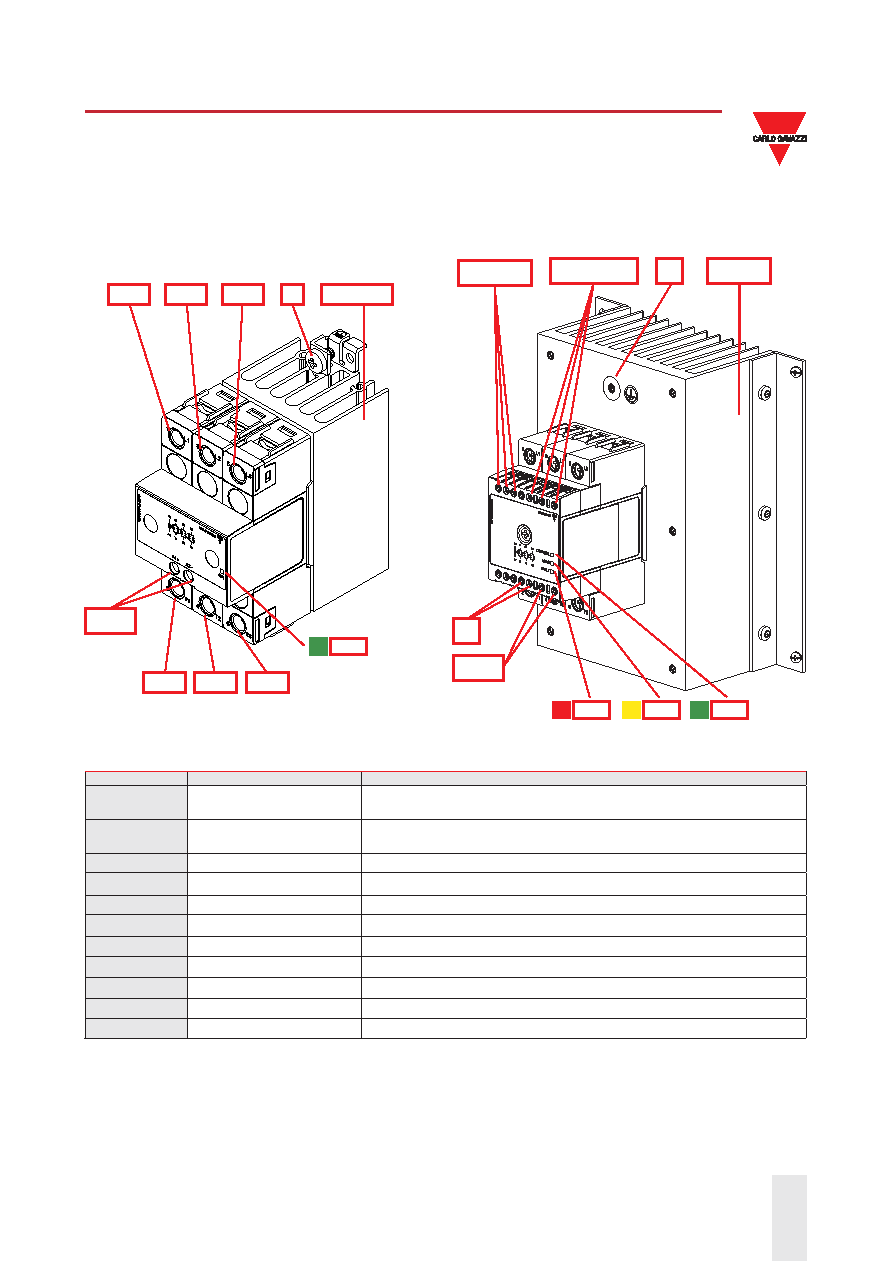

Structure

Element

Component

Function

1/L1, 3/L2, 5/L3 Power connections

Mains connections

2/T1, 4/T2, 6/T3 Power connections

Load connections

Aux. output

Auxiliary output

Changes state with change of state of SSR output

Alarm output

Electro mechanical relay

Alarm output; normally open, normally closed

A1, A2

Control connection

Terminals for control voltage

Us

Supply connection

Terminals for supply voltage

Green LED

CONTROL indicator

Indicates presence of control voltage and supply voltage

Yellow LED

LOAD indicator

Indicates the load status

Red LED

ALARM indicator

Indicates presence of an alarm condition

Heatsink

Integrated heatsink

DIN rail and panel mount versions available

PE

Protective Earth

Connection for Protective Earth

RGC..M

A1, A2

Us

LED

LED

LED

Alarm output

Aux. output

PE

Heatsink

RGC

1/L1

LED

A1, A2

Heatsink

3/L2

5/L3

6/T3

4/T2

2/T1

PE

Both RGC and RGC..M are available in DIN rail and panel mount versions. DIN rail mount solutions at higher current ratings include forced

ventilation. Check 'Dimensions' sections for further information.
