AD8614ART-R2 数据表(PDF) 7 Page - Analog Devices

部件名 AD8614ART-R2
功能描述  Single and Quad 18 V Operational Amplifiers
PDF  16 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AD [Analog Devices]
网页  http://www.analog.com
标志 AD - Analog Devices

AD8614ART-R2 数据表(HTML) 7 Page - Analog Devices

Back Button AD8614ART-R2 Datasheet HTML 3Page - Analog Devices AD8614ART-R2 Datasheet HTML 4Page - Analog Devices AD8614ART-R2 Datasheet HTML 5Page - Analog Devices AD8614ART-R2 Datasheet HTML 6Page - Analog Devices AD8614ART-R2 Datasheet HTML 7Page - Analog Devices AD8614ART-R2 Datasheet HTML 8Page - Analog Devices AD8614ART-R2 Datasheet HTML 9Page - Analog Devices AD8614ART-R2 Datasheet HTML 10Page - Analog Devices AD8614ART-R2 Datasheet HTML 11Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 7 / 16 page
background image

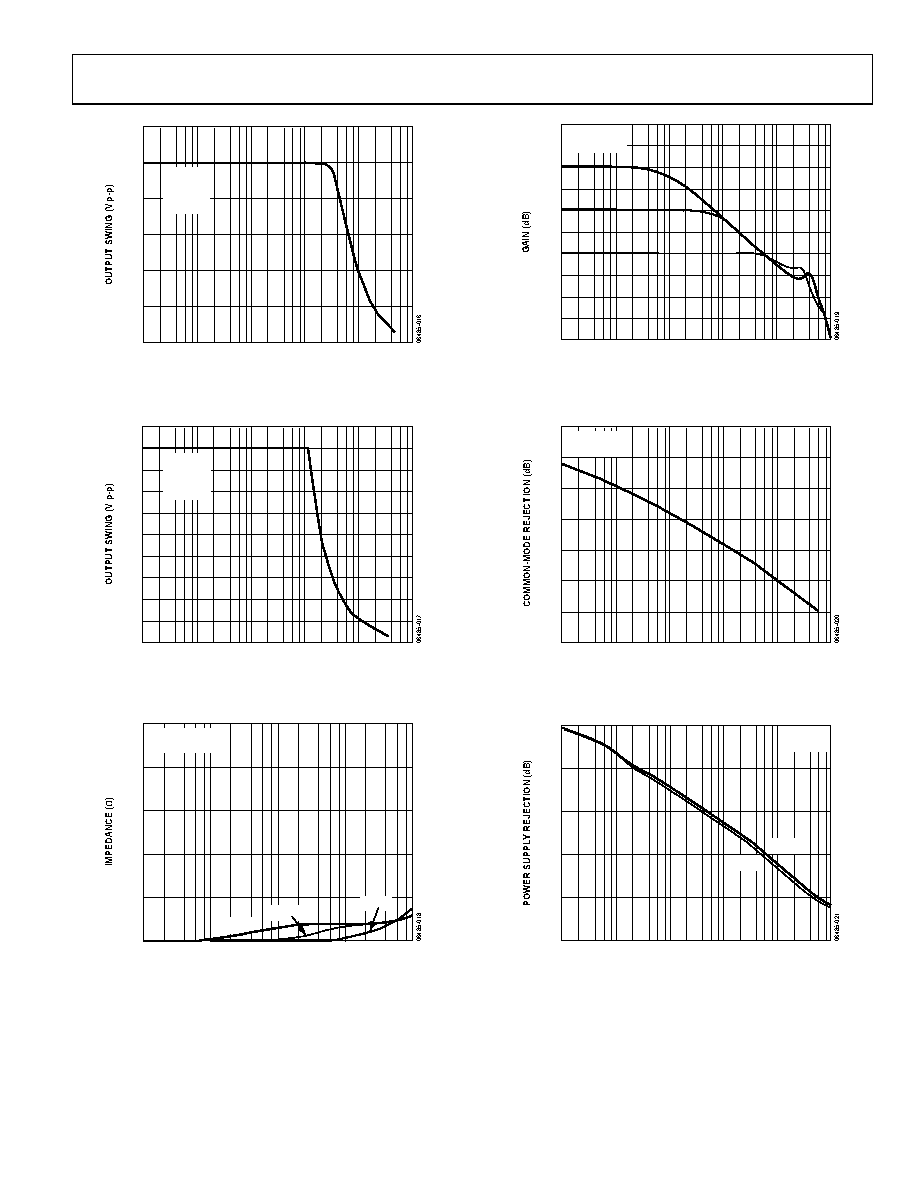

AD8614/AD8644
Rev. B | Page 7 of 16
FREQUENCY (Hz)
6
5
0
4
3
2
1
100
1k
10k
100k
1M
10M
VS =5V
AVCL =1
RL =2kΩ
TA = 25°C
Figure 16. Maximum Output Swing vs. Frequency, VS = 5 V
FREQUENCY (Hz)
20
18
0
10
6
2
4
8
16
14
12
100
1k
10k
100k
1M
10M
VS = 18V
AVCL =1
RL =2kΩ
TA = 25°C
Figure 17. Maximum Output Swing vs. Frequency, VS = 18 V
FREQUENCY (Hz)
300
240
0
180
120
60
5V ≤ VS ≤ 18V
TA =25°C
AV =1
AV =10
AV =100
1k
10k
100k
1M
10M
Figure 18. Closed-Loop Output Impedance vs. Frequency
FREQUENCY (Hz)
40
20
0
1k
10k
100k
1M
10M
100M
5V ≤ VS ≤ 18V
TA =25°C
Figure 19. Closed-Loop Gain vs. Frequency
FREQUENCY (Hz)
100
80
60
0
20
40
120
140
100
1k
10k
100k
1M
10M
5V ≤ VS ≤ 18V
TA =25°C
Figure 20. Common-Mode Rejection vs. Frequency
FREQUENCY (Hz)
100
0
80
60
40
20
10M
1M
100k
10k
1k
100
PSRR+
PSRR–
VS = 18V
TA = 25°C
Figure 21. Power Supply Rejection vs. Frequency
