AD822

Rev. G | Page 18 of 28

20kΩ

10kΩ

100pF

VIN

VOUT

+VS

0.01µF

1/2

AD822

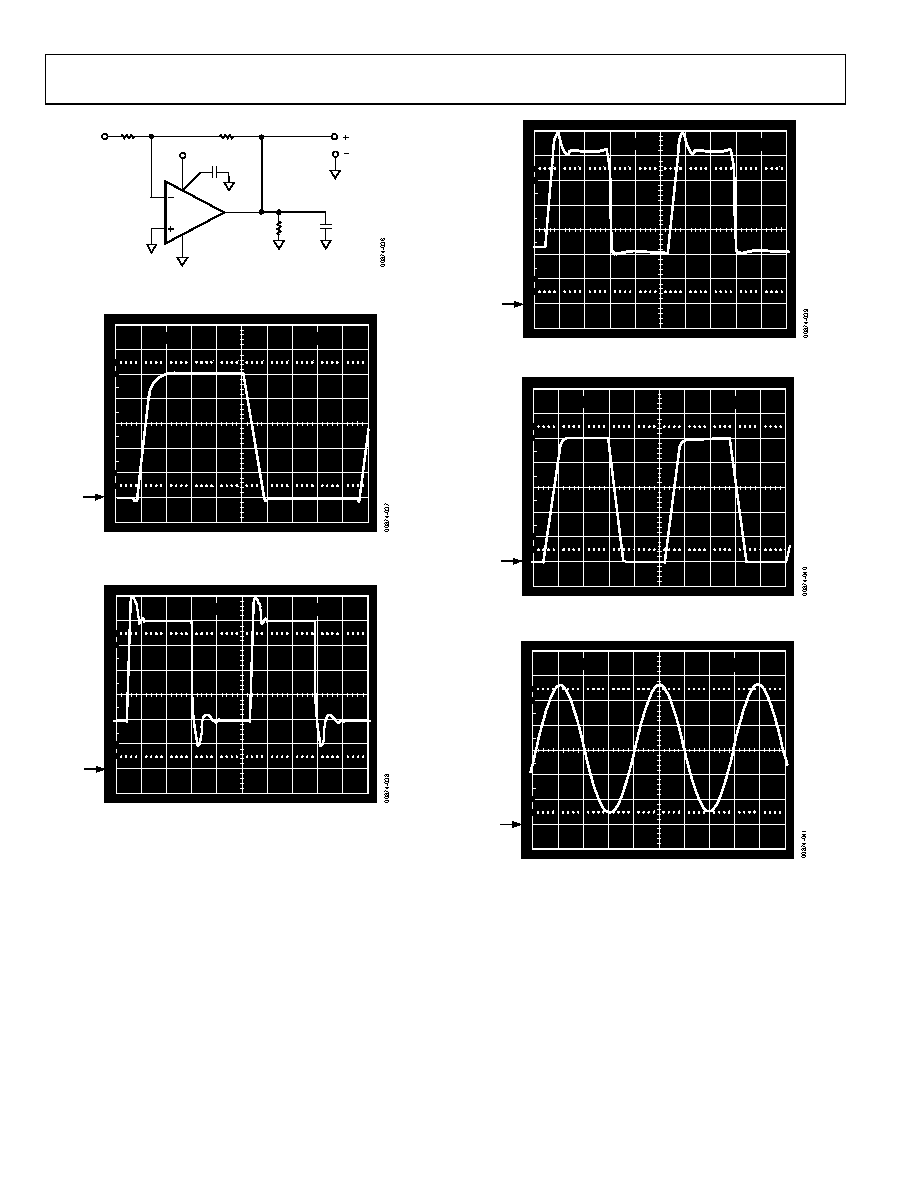

Figure 36. Gain-of-T2 Inverter

GND

100

2µs

Figure 37. VS = 5 V, 0 V; Unity Gain Follower Response to 0 V to 5 V Step

GND

100

10mV

2µs

Figure 38. VS = 5 V, 0 V; Unity Gain Follower Response to 40 mV Step,

Centered 40 mV above Ground, RL = 10 kΩ

GND

100

10mV

2µs

Figure 39. VS = 5 V, 0 V; Gain-of-2 Inverter Response to 20 mV Step,

Centered 20 mV below Ground, RL = 10 kΩ

GND

100

2µs

Figure 40. VS = 5 V, 0 V; Gain-of-2 Inverter Response to 2.5 V Step,

Centered −1.25 V below Ground, RL = 10 kΩ

GND

100

500mV

10µs

Figure 41. VS = 3 V, 0 V; Gain-of-2 Inverter, VIN = 1.25 V, 25 kHz, Sine Wave

Centered at −0.75 V, RL = 600 Ω
