Specifications subject to change without notice. Please check our website for latest information. Released: 2011/03/15

Sunlord

Sunlord Industrial Park, Guanguang Road, Shenzhen, China Tel: 0755-29832660 Fax: 0755-82269029 Web:http://www.sunlordinc.com E-mail: sunlord@sunlordinc.com

Multilayer Chip Ferrite Bead – PZ Series

Operating Temp. : -55℃~+125℃

FEATURES

●

Internal silver printed layers and magnetic shielded structures to minimize crosstalk

●

Large withstand current (allowable current: up to 6A)

●

Can be used in a wide range of frequency to suppress EMI

●

Three types material and wide range of impedance values for various applications

APPLICATIONS

●

Noise suppression for power line or large current signal of electric equipments such as computers

and peripheral devices, DVD cameras, LCD TVs, communication equipments, OA equipments, etc.

PRODUCT IDENTIFICATION

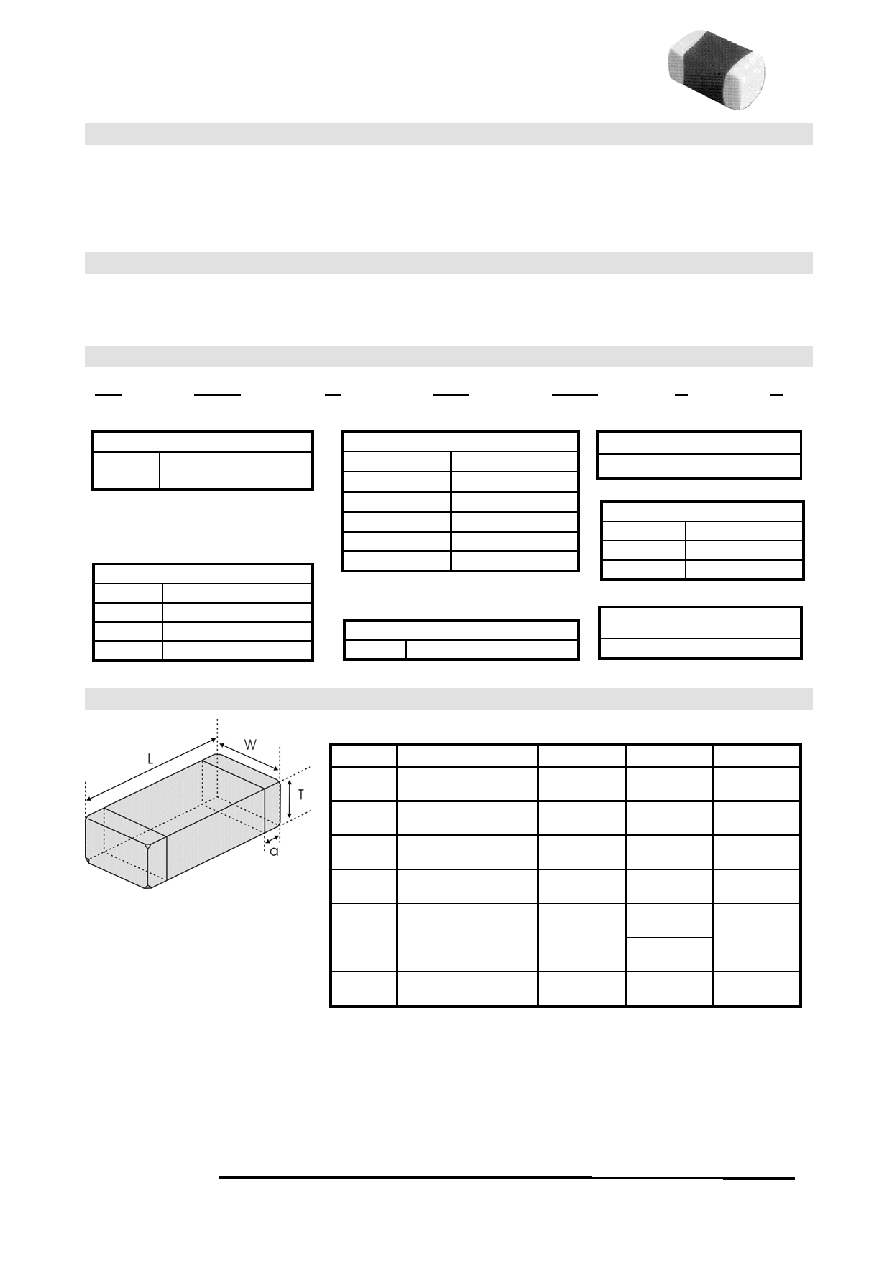

SHAPE AND DIMENSIONS

Unit: mm [inch]

Type

L

W

T

a

PZ0603

[0201]

0.6±0.05

[.024±.002]

0.3±0.05

[.012±.002]

0.3±0.05

[.012±.002]

0.15±0.05

[.006±.002]

PZ1005

[0402]

1.0±0.15

[.039±.006]

0.5±0.15

[.020±.006]

0.5±0.15

[.020±.006]

0.25±0.1

[.010±.004]

PZ1608

[0603]

1.6±0.15

[.063±.006]

0.8±0.15

[.031±.006]

0.8±0.15

[.031±.006]

0.3±0.2

[.012±.008]

PZ2012

[0805]

2.0 (+0.3, -0.1)

[.079 (+.012, -.004)]

1.25±0.2

[.049±.008]

0.85±0.2

[.033±.008]

0.5±0.3

[.020±.012]

0.85±0.2

[.033±.008]

PZ3216

[1206]

3.2±0.2

[.126±.008]

1.6±0.2

[.063±.008]

1.1±0.2

[.043±.008]

0.5±0.3

[.020±.012]

PZ4516

[1806]

4.5±0.2

[.178±.008]

1.6±0.2

[.063±.008]

1.6±0.2

[.063±.008]

0.5±0.3

[.020±.012]

②

External Dimensions (L×W) (mm)

0603 [0201]

0.6×0.3

1005 [0402]

1.0×0.5

1608 [0603]

1.6×0.8

2012 [0805]

2.0×1.25

3216 [1206]

3.2×1.6

4516 [1806]

4.5×1.6

①

Type

PZ

Chip Ferrite Bead For

Large Current

③

Material Code

D, E, U

④

Nominal Impedance

Example

Nominal Value

300

30Ω

121

120Ω

102

1000Ω

⑦

Hazardous Substance

Free Products

F

⑥

Packing

T

Tape & Reel

⑤

Rated Current

1R0

1.0A

2R5

2.5A

R60

0.6A

PZ

①

1608

②

U

③

121

④

-1R0

⑤

F

⑦

T

⑥
