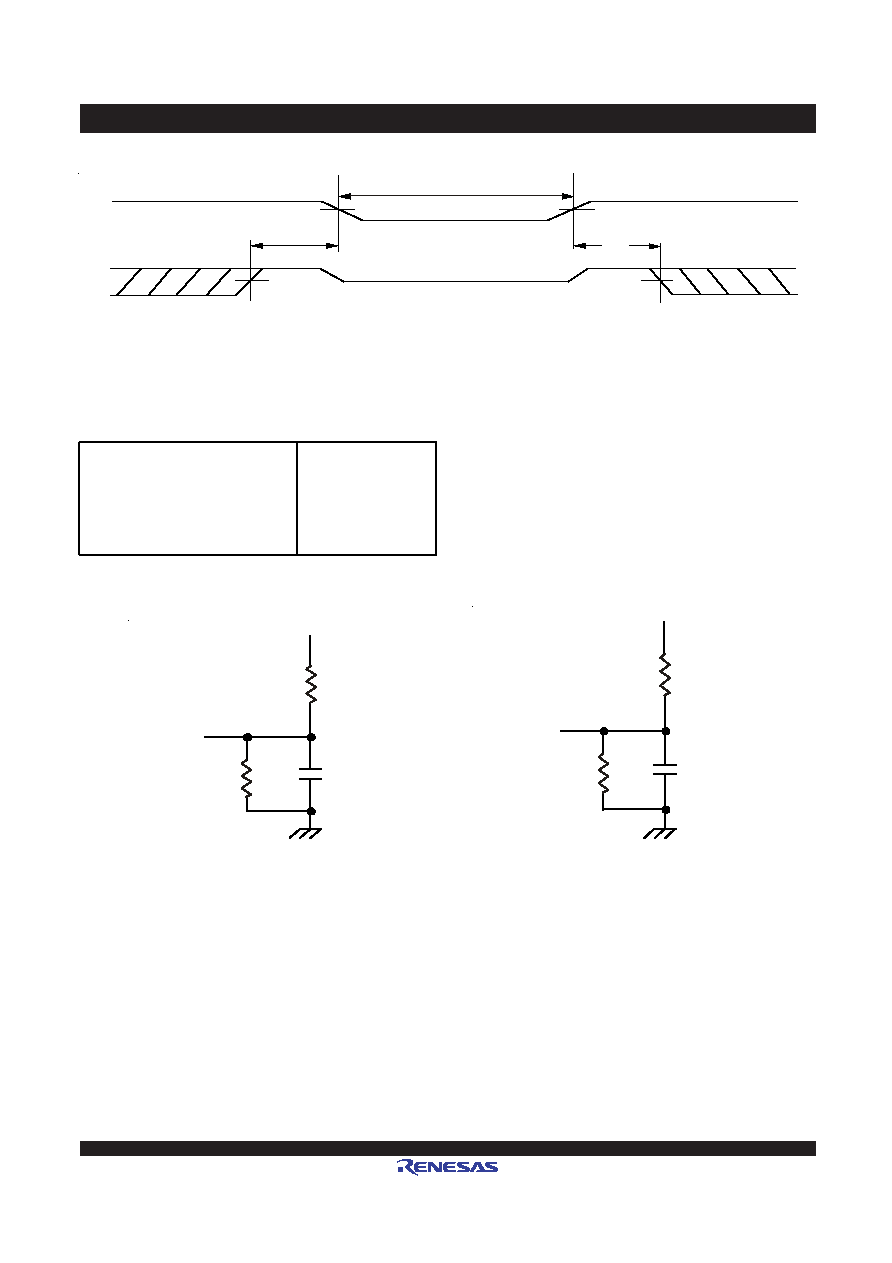

6.42
6116SA/LA
CMOS Static RAM 2K (16K x 8-Bit)
Military, Commercial, and Industrial Temperature Ranges
5
Jul.17.20
Low VCC Data Retention Waveform
AC Test Conditions
DATA RETENTION MODE
VCC
CS
tCDR
4.5V
VDR
≥ 2V
VDR
4.5V
tR
VIH
VIH
3089 drw 03
,
Figure 2. AC Test Load
(for tOLZ, tCLZ, tOHZ, tWHZ, tCHZ & tOW)
Figure 1. AC Test Load
*Including scope and jig.
3089 drw 04
30pF*
255
Ω
5V
DATAOUT
480
Ω
,
5pF*
255
Ω
5V
480
Ω
DATAOUT
3089 drw 05
,
Input Pulse Levels
Input Rise/Fall Times
Input Timing Reference Levels
Output Reference Levels
AC Test Load
GND to 3.0V
5ns
1.5V
1.5V
See Figures 1 and 2
3089 tbl 11
