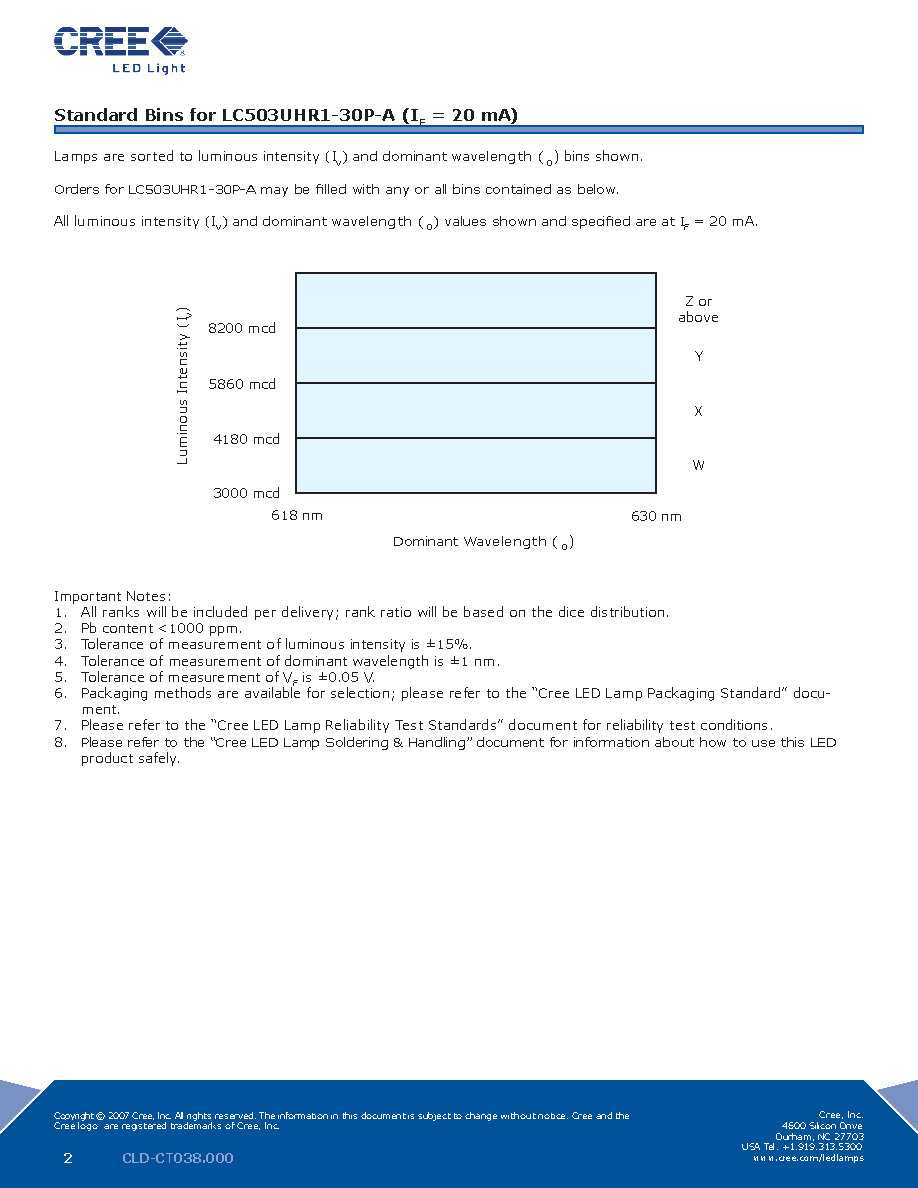

Standard Bins for LC503UHR-30P-A (I

Lamps are sorted to luminous intensity (I

Orders for LC503UHR1-30P-A may be filled with any or all bins contained as below.

All luminous intensity (I

Z or

above

Y

X

W

Important Notes:

All ranks will be included per delivery; rank ratio will be based on the dice distribution.

Pb content <1000 ppm.

Tolerance of measurement of luminous intensity is ±15%.

Tolerance of measurement of dominant wavelength is ±1 nm.

Tolerance of measurement of V

Packaging methods are available for selection; please refer to the “Cree LED Lamp Packaging Standard” docu-

ment.

Please refer to the “Cree LED Lamp Reliability Test Standards” document for reliability test conditions.

Please refer to the “Cree LED Lamp Soldering & Handling” document for information about how to use this LED

product safely.

1.

2.

3.

4.

5.

6.

7.

8.

618 nm

Dominant Wavelength (

630 nm

8200 mcd

5860 mcd

4180 mcd

3000 mcd
