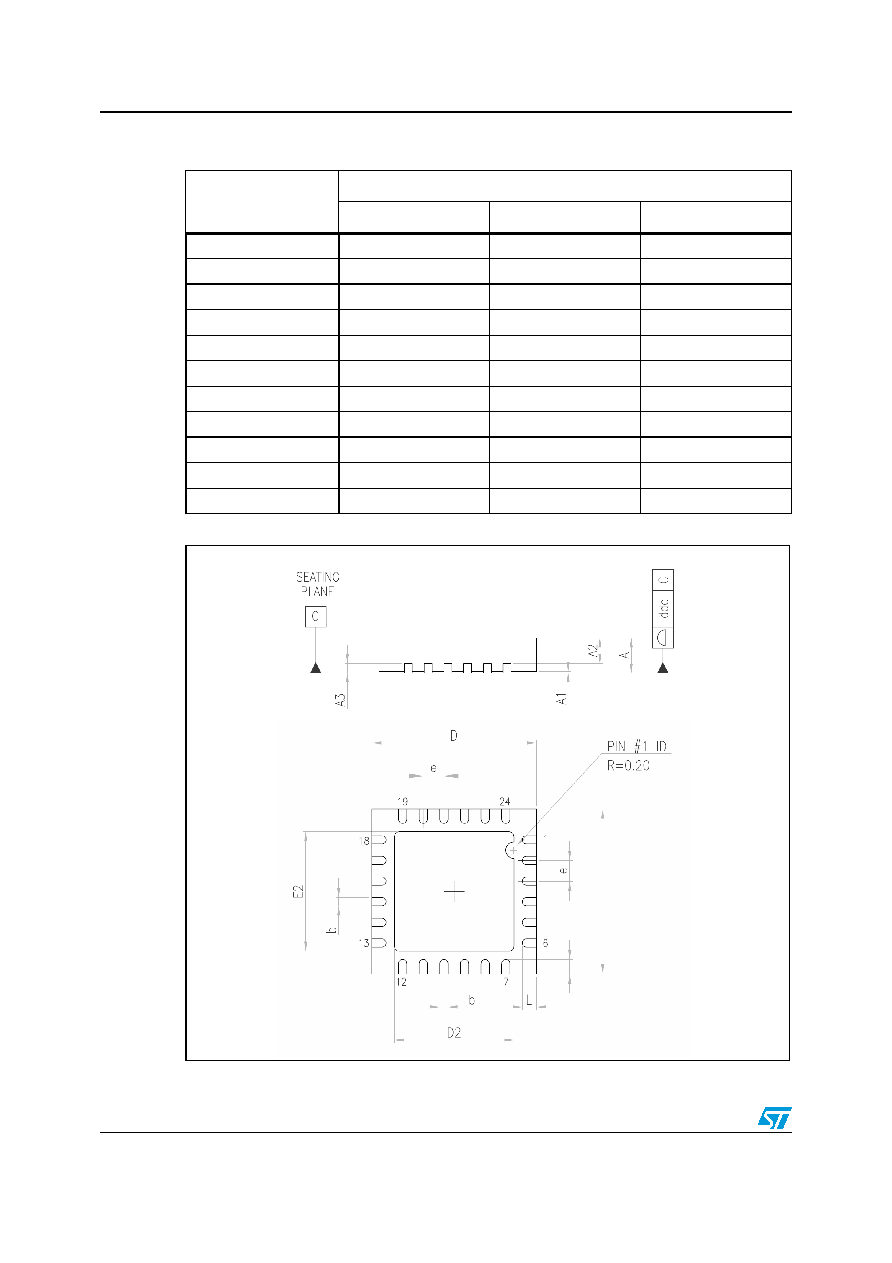

Package mechanical data
LED7706
28/31
Table 8.
VFQFPN-24 4 mm x 4 mm mechanical data
Dim.
mm
Min
Typ
Max
A
0.800.901.00
A1
0.00
0.02
0.05
A3
0.20
b
0.180.250.30
D
3.854.004.15
D2
2.40
2.50
2.60
E
3.854.004.15
E2
2.40
2.50
2.60
e0.50
L
0.300.400.50
ddd
0.08
Figure 16. Package dimensions
