A-19

EZ500 Series

EZ500 Series— for controlling

small applications with up to 12

input/output signals. Models are

available with and without displays.

DIN rail mounted.

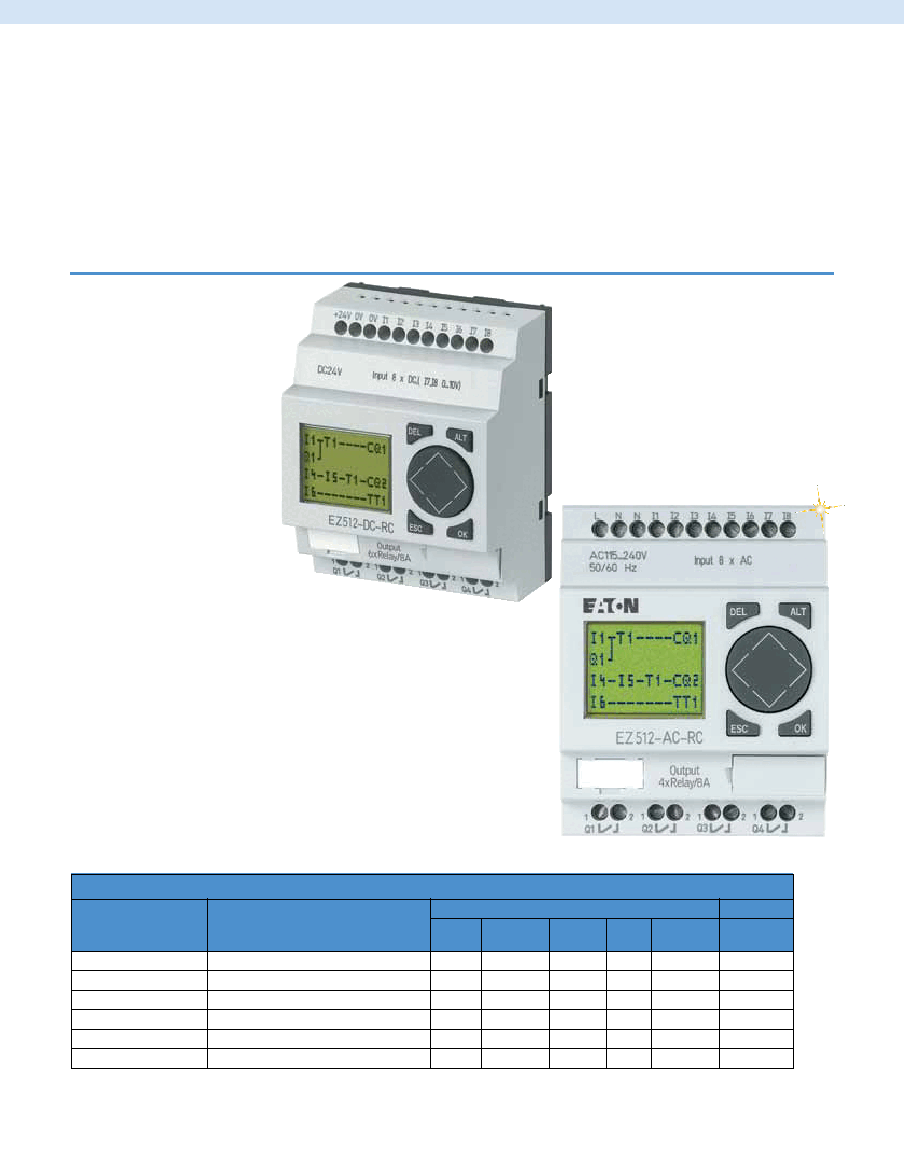

EZ512-AC-RC shown

smaller than actual size.

EZ512-DC-RC

shown smaller

than actual size.

To Order

Inputs

Outputs

24

110 to

12

24

MODEl nO.

DEsCRIptIOn

Vac

240 Vac

Vdc

Vdc AnAlOG

RElAY

EZ512-AC-R

12 I/O, no clock, display

—

8

—

—

—

4

EZ512-AC-RC

12 I/O, clock, display

—

8

—

—

—

4

EZ512-AC-RCX

12 I/O, clock, no display

—

8

—

—

—

4

EZ512-DC-R

12 I/O, no clock, display

—

—

—

8

2

4

EZ512-DC-RC

12 I/O, clock, display

—

—

—

8

2

4

EZ512-DC-RCX

12 I/O, clock, no display

—

—

—

8

2

4

Comes complete with installation guide.

Ordering Example: EZ512-AC-RCX, 12 I/O, clock, no display.

Everything Needed is Built-In

Depending on the device selected, EZ and

EZD products provide users with timing

relays, flash relays, counters, comparators,

timer switches and other ready-to-use

functions. The circuit diagram display

of serial and parallel connections, unlike

the display of AND and OR operations in

a function block diagram, offers a more

manageable display of the circuit. Every

EZ and EZD intelligent relay features an

integrated power flow display to ensure

safe operation during commissioning and

helps identify errors in the circuit diagram.

For ease-of-use, energized rungs are

highlighted, and non-energized rungs

are dimmed.

Security Means Safety

The finished circuit diagram is stored

internally and can also be saved externally on

a memory module (EEPROM) for transport,

security and backup. Multi-level password

protection secures your circuit diagram from

unauthorized viewing, editing, copying or

deleting.

l

8 Digital Inputs

l

4 Digital Inputs

l

128 Rungs of 3 Contacts

and 1 Coil Each

l

16 Operating and

Message Texts

l

2 Analog Inputs (10-Bit)

Optional (Not with

240 Vac)

l

2 High-Speed Inputs,

1 kHz (Only DC Devices)
