PLUGS AND SOCKETS

4 pole

AG4MPCH

Male chassis connec-

tor, Horizontal PCB,

Machined contacts,

Thermoplastic shell

3 pole

AG3FCRV

4 pole

AG4FCRV

5 pole

AG5FCRV

6 pole

AG6FCRV

Female chassis con-

nector,

Stamped contacts,

Nickel Finish

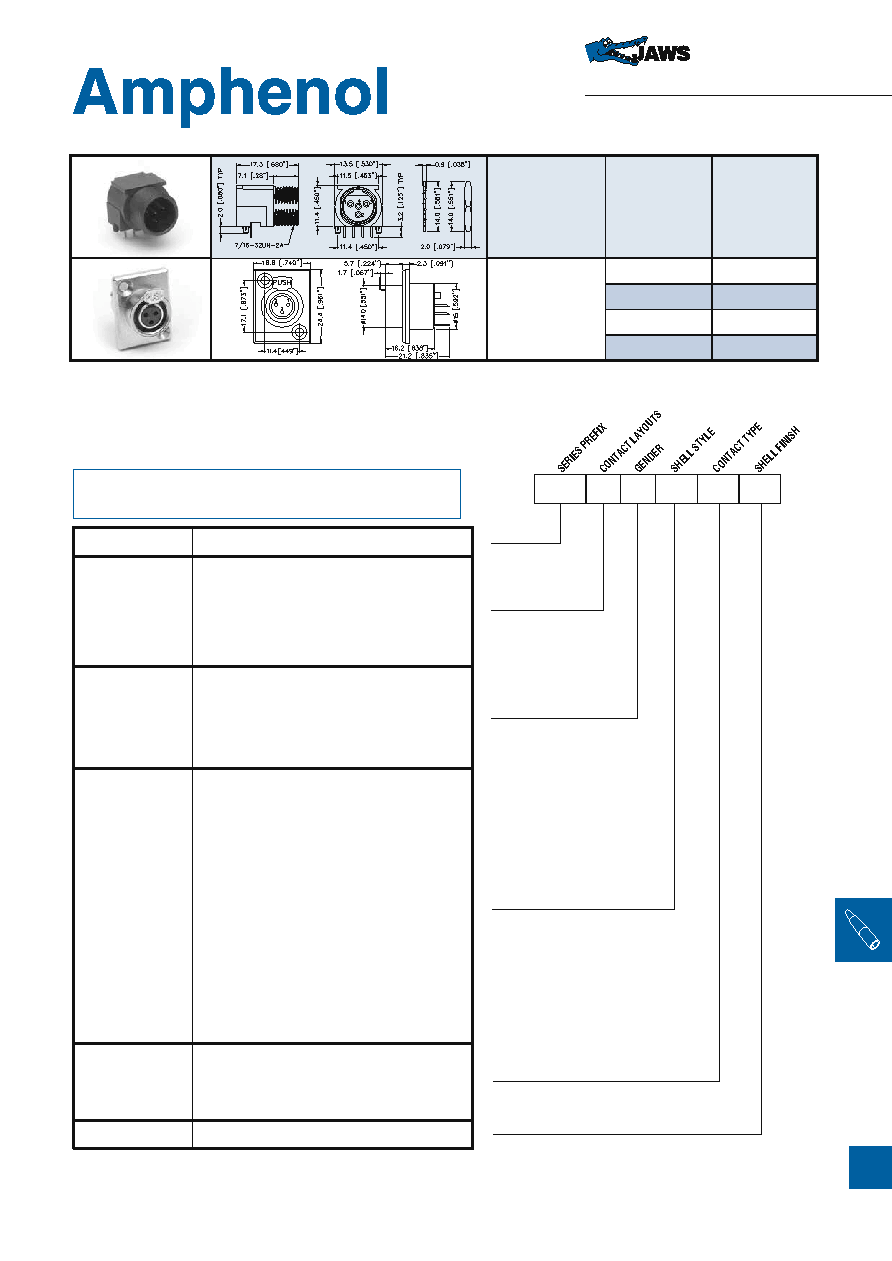

PART NUMBER BREAKDOWN

G TYPE CONNECTORS

E. G . AG3MCCHB

AG (Series Prefix), 3 contacts, Male, Chassis Connector,Horizontal PCB Contacts,

Black finish.

SERIES PREFIX

CONTACT LAYOUTS

AG

3

M CC

H

B

AG

Series Prefix

=

4

4 Contacts

=

6

6 Contacts

=

3

3 Contacts

=

5

5 Contacts

=

CONTACT TYPE

SHELL FINISH

Blank

Solder Buckets

(All styles except PC, CR)

=

Blank

Nickel Plated Finish

=

B

Black Finish

=

H

Horizontal PCB (Style CC, PC only)

=

V

Vertical PCB (Style CR only)

=

SHELL STYLE

Blank

Cable Connector Standard

(Male or Female)

=

J

Cable Connector Large Cable

clamp / boot O.D (Male or Female)

=

L

Cable Connector with locking ring

(Female)

=

LL

Latchless (Chassis Connector)

=

CC

Chassis Connector Circular Metal

(Male)

=

CE

Rear Mount (Chassis Connector)

=

CM

Mid Mount (Chassis Connector)

=

CR

Chassis Connector Rectangular

Metal (Female)

=

PC

Chassis Connector Plastic (Male)

=

GENDER

F

Female Socket Contacts

=

M

Male Pin Contacts

=
