HG2402RDR-RSP 数据表(PDF) 1 Page - Infinite Electronics International, Inc.

部件名 HG2402RDR-RSP
功能描述  Antenna, Stubby STR, RP SMA Plug
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  L-COM [Infinite Electronics International, Inc.]
网页  https://www.l-com.com/
标志 L-COM - Infinite Electronics International, Inc.

HG2402RDR-RSP 数据表(HTML) 1 Page - Infinite Electronics International, Inc.

  HG2402RDR-RSP Datasheet HTML 1Page - Infinite Electronics International, Inc.
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image
REV
K. Blomgren
COLOR VARIATIONS
09/29/10
A
MAY VARY
-
Initial Release
--
CATEGORY
PRODUCT DESCRIPTION
DIMENSIONS ARE IN INCHES [mm]
CONFIGURATION DETAILS OF
01845
SCALE:
SIZE
CAD FILE:
DWG. NO.
A
SHEET
OF
REV.
DATE
APPROVALS
DRAWN BY
CHECKED BY
APPROVED BY
1
NONE
PROJECTION
-
B.Puchaski
A
B
C
D
45 BEECHWOOD DRIVE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
A
B
C
D
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
3
09/28/10
2
4
FSCM NO.
6
UNDIMENSIONED FEATURES
MAY OCCUR
7
A
HG2402RDR-RSP.SLDDRW
NORTH ANDOVER, MA
5
1
09/28/10
REVISIONS
HG2402RDR-RSP
8
DESCRIPTION
APPROVED
1
DATE
K.Blomgren
09/28/10
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
2
3
4
5
6
7
8
B.Puchaski
43321
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES:
.X = ±.1
.XX = ±.01
.XXX = ±.005
ANGULAR TOLERANCES:
ALL = ± 1°

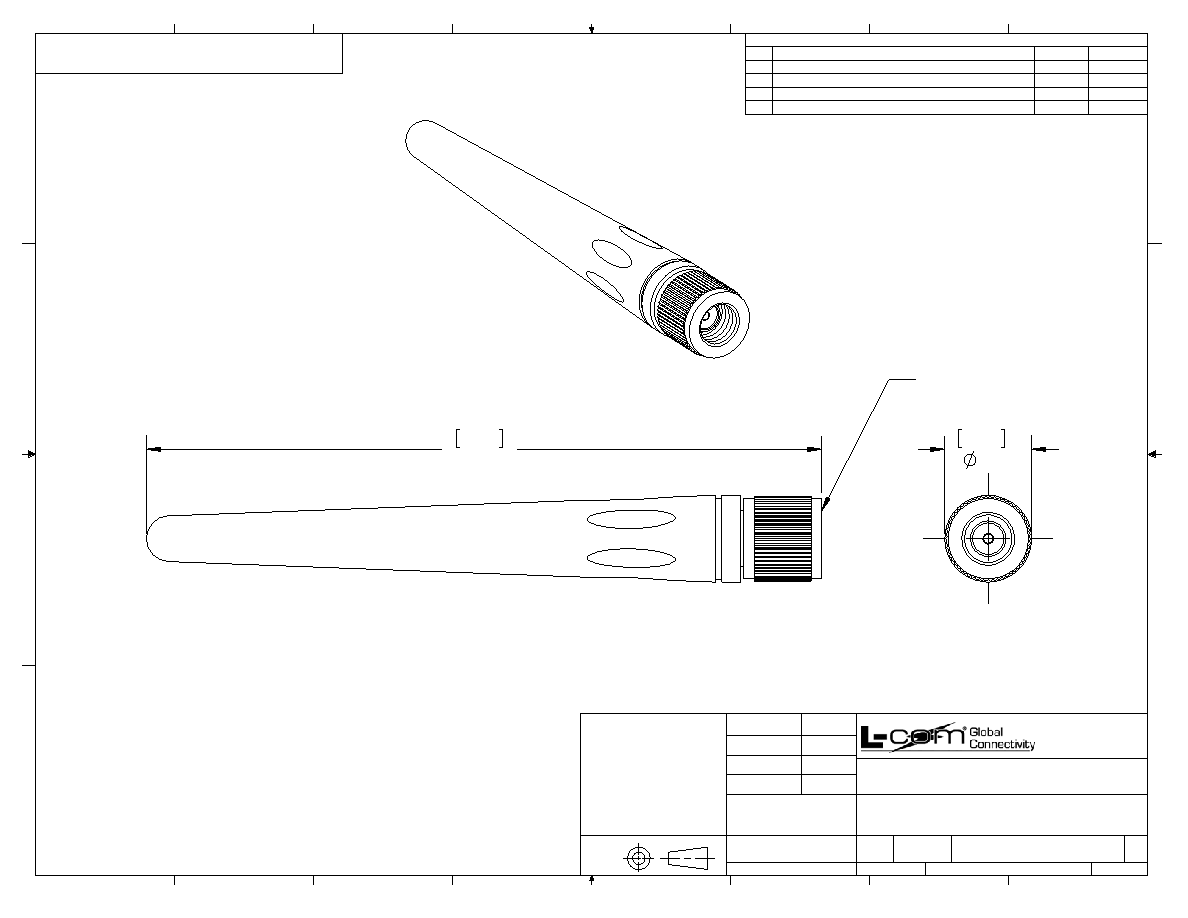

ANTENNA
Antenna, Stubby STR, RP SMA Plug
NOTES:
ELECTRICAL:
FREQUENCY RANGE: 2.4 GHz (2.4~2.5GHz)
ELECTRIC WAVE: 1/4, MONOPOLE ANTENNA
V.S.W.R. : <2
IMPEDENCE: 50 Ohm, NOMINAL
GAIN: 2dBi
PACKAGING:
COMPONENT SHALL BE INDIVIDUALLY PACKAGED IN ACCORDANCE
WITH L-COM SPECIFICATION PKG-00012
BAG LABEL AS PER L-COM SPECIFICATIION LSP-010
RP-SMA
3.13
79.4
.40
10.2
