824-960/1710-2200/2400 MHz Tri-Band 2dBi Patch

Omni-directional Multi-Band UMTS Antenna

Applications and Features

Applications:



PCS cellular radio applications



UMTS, GSM, G3, ISM, WLAN, RFID applications



Mobile applications



Low profile mounting –stick on Foam Tape



Remote antenna location for better reception

Features:



Superior performance



Compact size



Can be used with 900/1800/1900/2400 MHz systems



Mounting foam tape backing system with attached 3-Meter

cable



Indoor or outdoor use



RoHS Compliant

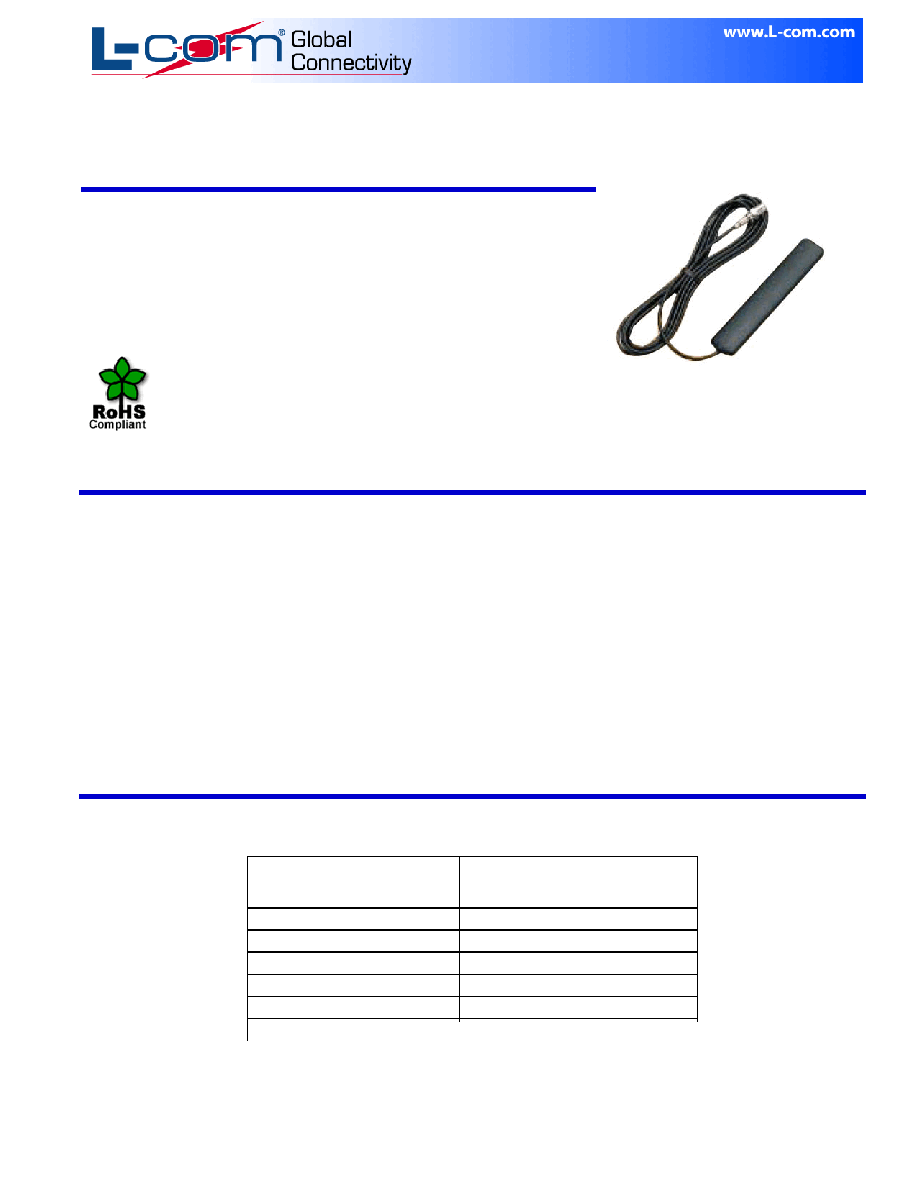

HG924-2TP-RSP

Description

This compact UMTS/WLAN Tri-Band 2dBi Omni-directional antenna provides broad coverage and is designed to operate in

824-960MHz, 1710-2200MHz and 2400MHz bands. This Tri-Band design eliminates the need to purchase different antennas for

each frequency. In the 824MHz-960MHz band it is ideally suited for GSM, ISM, WLAN, RFID applications In the

1710MHz-2200MHz bands it can be used with UMTS10=900/2100MHz applications and Personal Communication Services (PCS)

cellular radio wireless applications. The 2400MH+Hz band is available for WLAN applications.

The compact size of this antenna is ideal where Omni-directional coverage and low visibility are desired. Mobile applications,

including service vehicles, public transportation, law enforcement, mining and construction vehicles, as well a numerous other

commercial and industrial applications where mobility is required, can be serviced with this antenna. The foam double sided tape

provides a secure and reliable mounting mechanism allowing deployment in many places. The 3-meter RG174 cable provides the

use r with flexible options where to place the antenna.

Specifications

Antenna Electrical Specifications

Frequency Ranges

824 - 960 MHz

1710 - 2200 MHz

2400 MHz

Gain

2 dBi

Maximum Input Power

10 W

VSWR

≤ 2.0

Impedance

50 Ohms

Coax Cable

Up to 3.0 Meters RG174 Cable

Connector

RP-SMA Plug (others optional)
