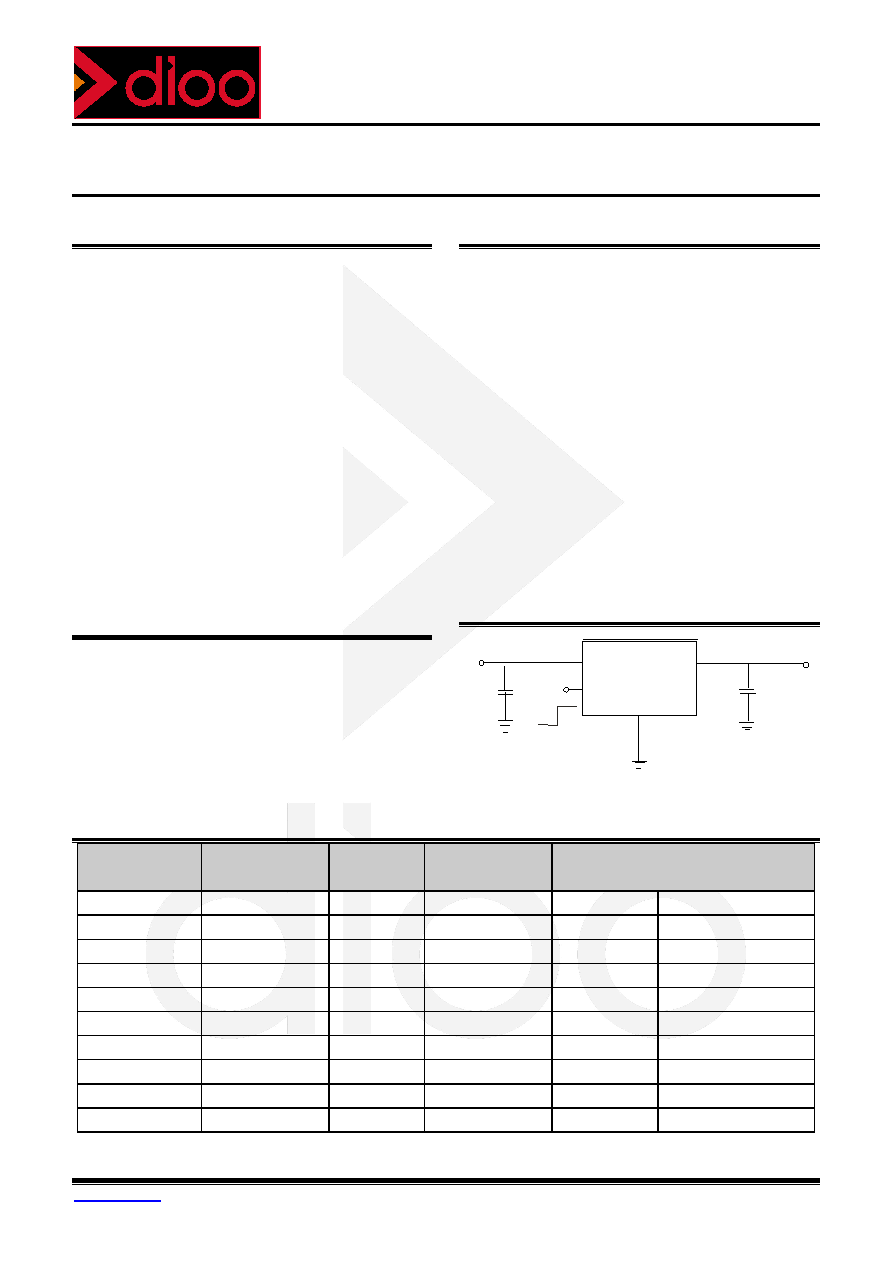

1 / 11 page

Rev 1.6

www.dioo.com

DIO7758• Rev. 1.6

DIO7758

300 mA, Ultra-Low-Noise, Low-IQ LDO

Features



Operating input voltage range: 1.6 V to 5.5 V



Output voltage range: 0.8 V to 3.3 V



Output current: 300 mA



Ultra-Low quiescent current: Typ. 25 µA



Dropout voltage : 140mV at IOUT=300 mA



PSRR: 75dB at 1 kHz, IOUT = 20 mA



Output voltage Tolerance: ±1%



Stable with ceramic capacitors 1 µF



Thermal-overload protection



Short-circuit protection



DIO7758A for active discharge option



Available in small DFN2*2-6 package



These devices are Pb−Free, Halogen

Free/BFR Free and are RoHS Compliant

Applications



MP3/MP4 Players



Cellphones, Radiophone, Digital Cameras



Bluetooth, Wireless Handsets



Others portable electronics device

Descriptions

The DIO7758 series is a high-accuracy, low-noise,

high-speed, high-PSRR, and low-dropout CMOS

Linear regulator with high ripple rejection. The

devices offer a new level of cost-effective

performance in cellular phones, laptop and

notebook computers, and other portable devices.

The DIO7758 has the fold-back maximum output

current which depends on the output voltage. So

the current limit functions both as short circuit

protection and as an output current limiter.

The device is available in the DFN2*2-6 package.

Typical Applications

V

OUT

CIN

1 µF

IN

OUT

EN

GND

V

COUT

On

Off

Ordering Information

Order Part

Number

Top Marking

TA

Package

DIO7758A08CD6

75AD

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000

DIO7758A10CD6

75AE

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000

DIO7758A11CD6

75AC

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000

DIO7758A12CD6

75AF

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000

DIO7758A15CD6

75AG

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000

DIO7758A18CD6

75AH

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000

DIO7758A25CD6

75AJ

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000

DIO7758A28CD6

75AK

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000

DIO7758A30CD6

75AM

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000

DIO7758A33CD6

75AN

Green

-40 to 125°C

DFN2*2-6

Tape & Reel,3000
