SL08-M1JN

■

SL08-M2JN

■

SL08-M1KT□

■

SL08-M2KT□

※

For No Buzzer Models,

do not require wiring.

■

Flash Pattern List

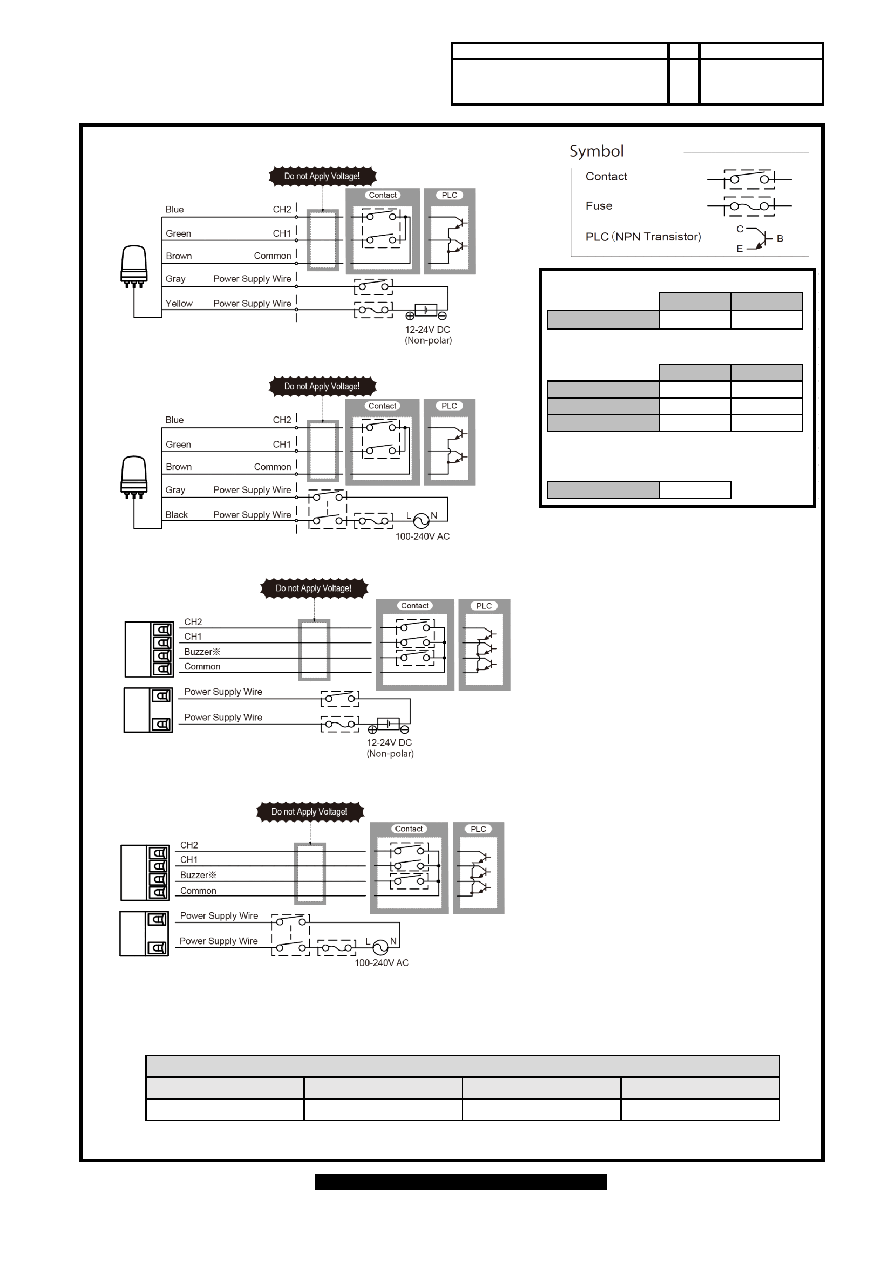

[5.Wiring Example]

Drawing No.

Rev.

Page

SL08-M1JN-

W18

【

External contact capacity of power supply line】

Current Capacity (Is)

3A or more

1A or more

【

External contact capacity of signal line and buzzer line】 ※1

Current Capacity (Is)

10mA or more 10mA or more

Withstand Voltage (Vs)

20V or more

Leakage Current (IL)

0.1mA or less

【

Fuse】

Fuse Rating

250V 1A

※

1 When using NPN transistor open collector.

CH1 OFF/CH2 OFF

CH1 ON/CH2 OFF

CH1 OFF/CH2 ON

CH1 ON/CH2 ON

Off

Continuous

Blinking

Triple-flash

Wiring【CH1/CH2】

5/5
