E5CSV

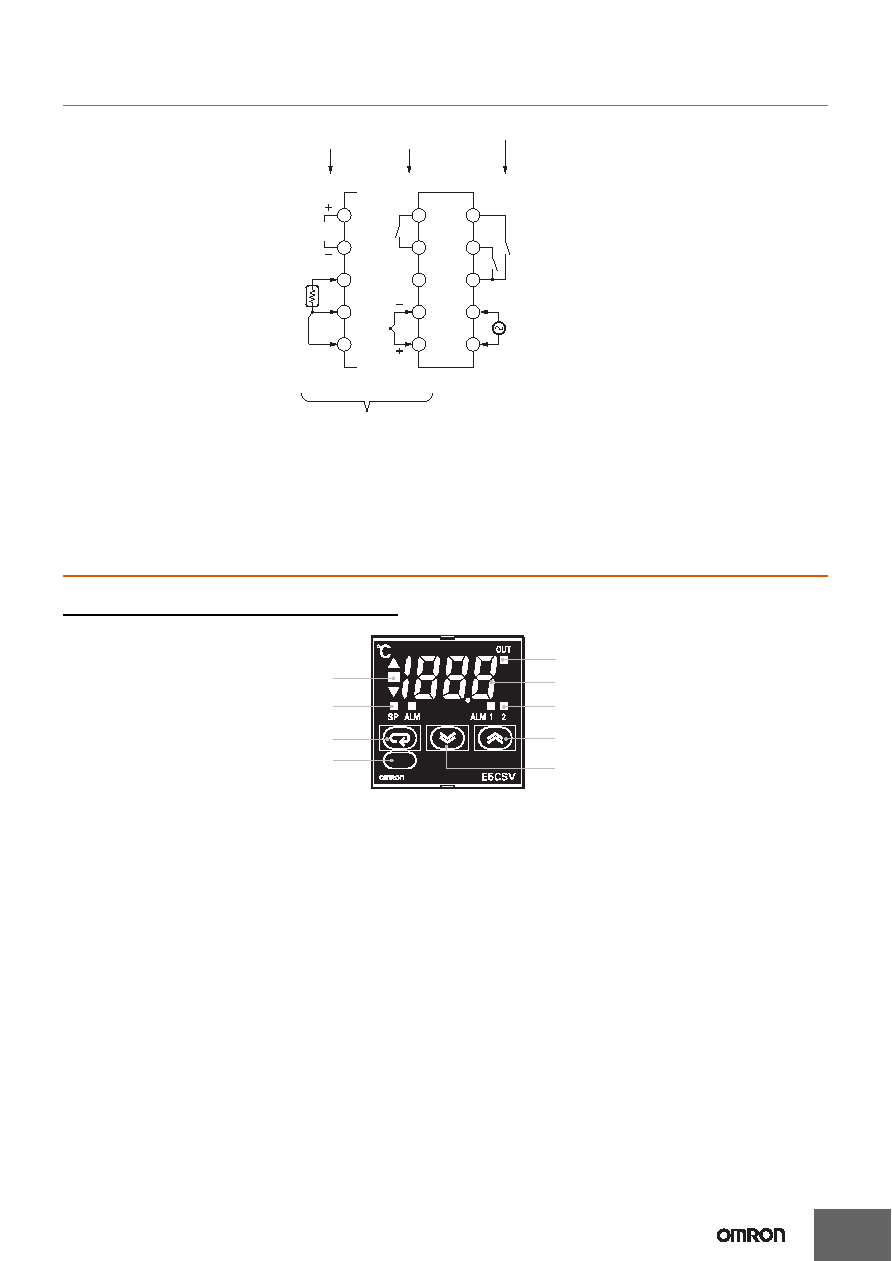

External Connection Diagram

Note: 1. The voltage output (12 VDC, 21 mA) is not electrically isolated from the internal circuits. When using a grounding thermocouple, do not

connect output terminals 1 or 2 to ground. Otherwise, unwanted current paths will cause measurement errors.

2. Models with 100 to 240 VAC and 24 VAC/VDC are separate. Models using 24 VDC have no polarity.

3. The number of alarm outputs depends on the model.

Nomenclature

E5CSV Models with Terminal Blocks

8

9

10

7

6

3

4

5

2

1

1

2

1

2

3

4

5

12 VDC,

21 mA

Alarm output

Alarm output 2 (See note 3

Alarm output 1 (See note 3

Relay output

models

Voltage output

models

(See note 1.)

Thermocouple/

platinum resistance thermometer universal-input

100 to 240 VAC, 50/60 Hz

(24 VAC/VDC)

(See note 2.)

A

B

B

Thermocouple

input

Relay output

Voltage output

Platinum resistance

thermometer input

Output indicator

Alarm indicators

Temperature display

Up Key

Down Key

Deviation indicators

Mode indicators

Mode Key

Lock Release Key
