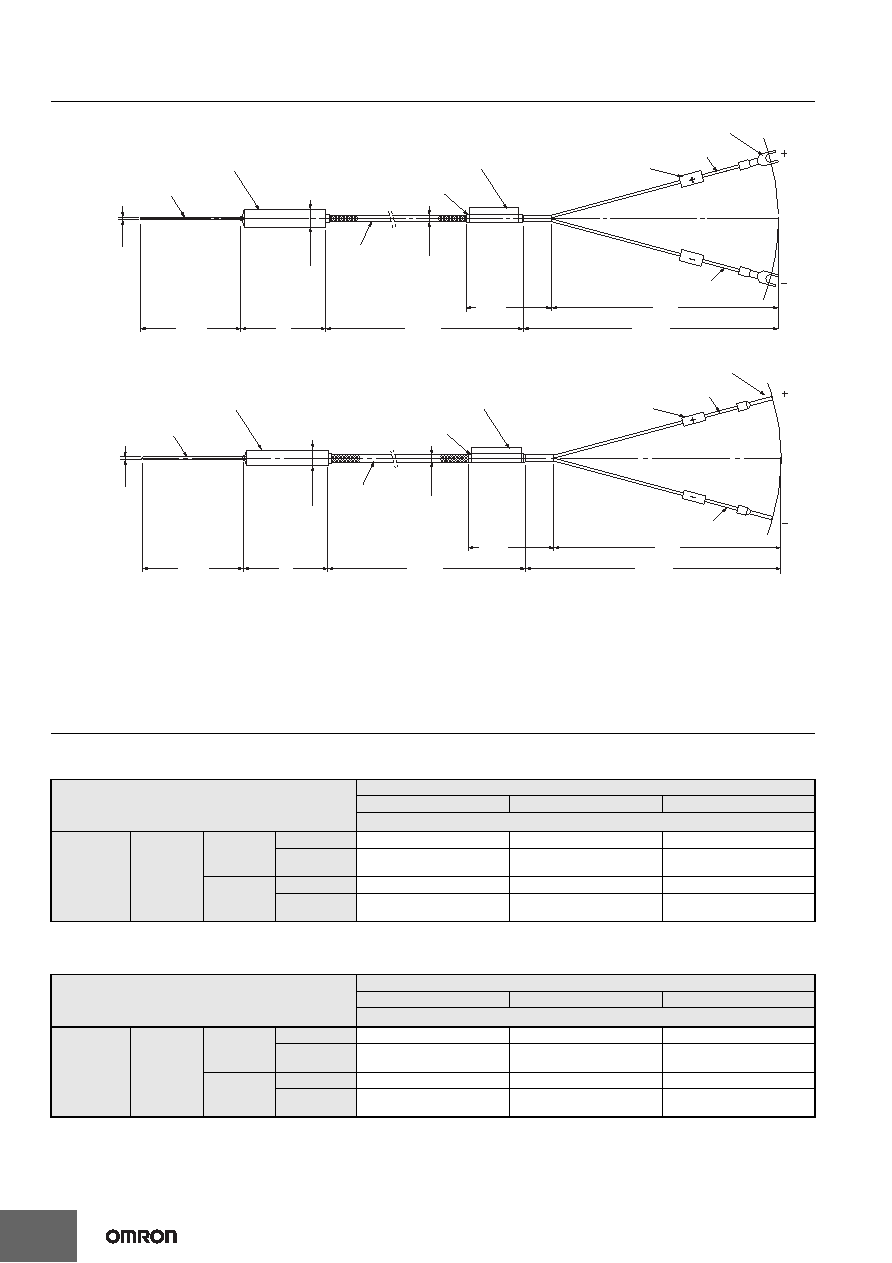

52 / 56 page  E52 52 Dimensions *1. Lead wires (compensating conductor) (excluding Y-type crimp terminals) Heat-resistance model (0 to 200°C): PFA glass-wool sheath with stainless outer shield Flexible, heat-resistance model (0 to 200°C): PFA glass-wool sheath with stainless outer shield *2. Temperature range of sleeve: 0 to 260°C *3. The sheath can be easily bent. Performance will not be adversely affected even if the sheath is bent somewhat. Do not bend the sheath beyond the following value. Minimum bending radius: 2 mm Bendable section: 8 mm or farther from the end List of Models Custom-made models are available on request. Refer to page 51 for details. Y-type crimp terminals for M3.0 Ferrules Terminal type Protective tubing diameter D (mm) Protective tubing length L (cm) Lead wire type Lead wire length M (m) 0.5 1 2 Model Exposed-lead Models 1 dia. 6 Heat resistive E52-CA6AY D=1 S1 0.5M E52-CA6AY D=1 S1 1M --- Flexible Heat resistive --- E52-CA6AY D=1 S2 1M E52-CA6AY D=1 S2 2M 12 Heat resistive E52-CA12AY D=1 S1 0.5M E52-CA12AY D=1 S1 1M --- Flexible Heat resistive --- E52-CA12AY D=1 S2 1M E52-CA12AY D=1 S2 2M Terminal type Protective tubing diameter D (mm) Protective tubing length L (cm) Lead wire type Lead wire length M (m) 0.5 1 2 Model Exposed-lead Models 1 dia. 6 Heat resistive E52-CA6AF D=1 S1 0.5M E52-CA6AF D=1 S1 1M --- Flexible Heat resistive --- E52-CA6AF D=1 S2 1M E52-CA6AF D=1 S2 2M 12 Heat resistive E52-CA12AF D=1 S1 0.5M E52-CA12AF D=1 S1 1M --- Flexible Heat resistive --- E52-CA12AF D=1 S2 1M E52-CA12AF D=1 S2 2M 1 ±0.05 dia. Shrinkable tube (blue) Lead wire *1 Sheath (ASTM316L) *3 Sleeve (PPS resin) *2 Product label 90 ±10 (80) 30 ±5 L ±3% M ±4% S1: 5.5 dia. S2: 6.4 dia. S1: 2.8 dia. S2: 3.6 dia. Red: + White: − 30 Y-type crimp terminals for M3.0 Mark tube (white) +0.1 −0.3 +0.1 −0.3 Y-type crimp terminals for M3.0 Ferrules Sheath (ASTM316L) *3 Sleeve (PPS resin) *2 Lead wire *1 S1: 2.8 dia. S2: 3.6 dia. Shrinkable tube (blue) Product label Mark tube (white) Red: + White: − S1: 5.5 dia. S2: 6.4 dia. +0.1 −0.3 +0.1 −0.3 1 ±0.05 dia. 90 ±10 (80) 30 ±5 L ±3% M ±4% 30 Ferrules |
|
