E5CD/E5ED

39

Operation

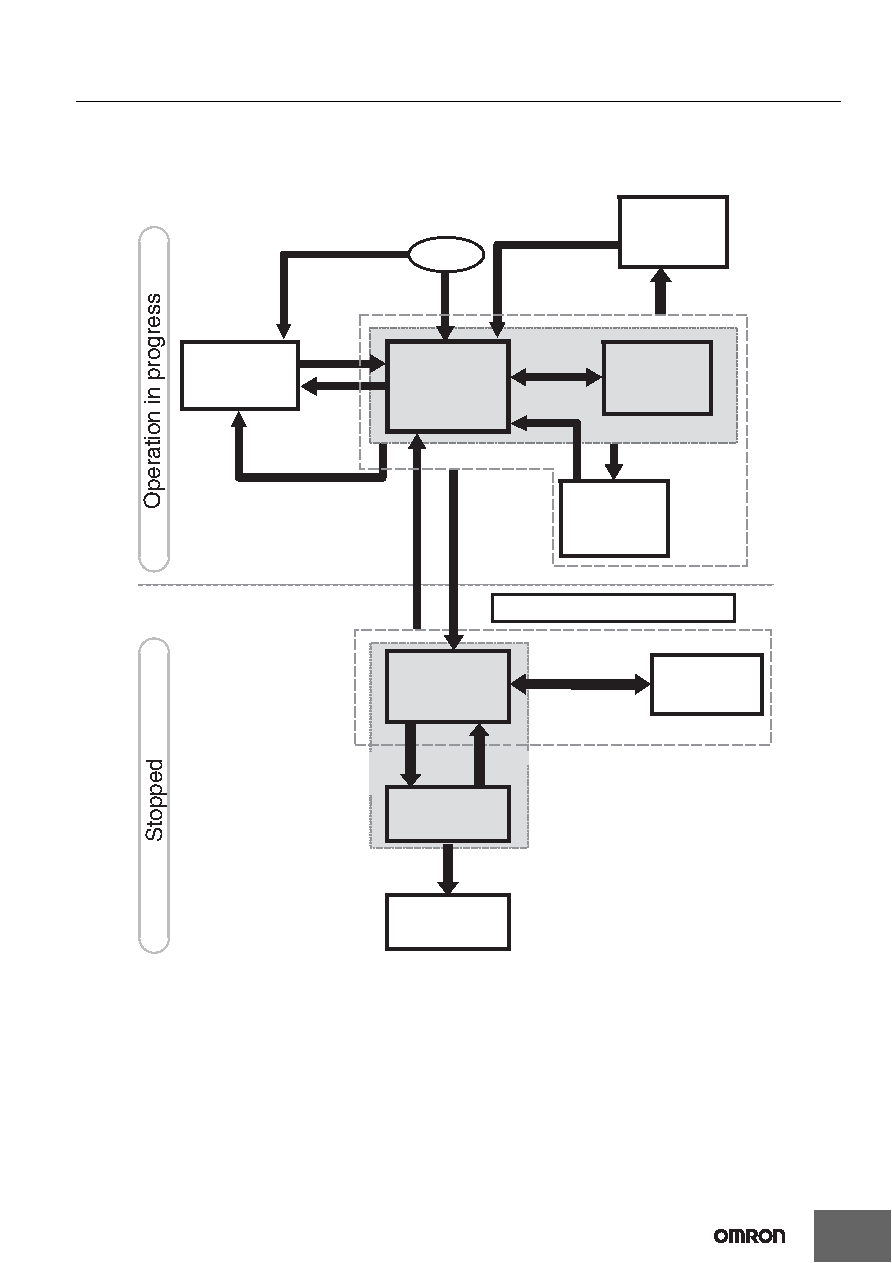

Setting Levels Diagram

This diagram shows all of the setting levels. To move to the advanced function setting level and calibration level, you must enter passwords. Some

parameters are not displayed depending on the protect level setting and the conditions of use.

Control stops when you move from the operation level to the initial setting level.

*1. Set the PF Setting parameter to a-m (Auto/Manual).

*2. The No. 1 display will flash when the keys are pressed for 1 s or longer.

*3. Set the PF Setting parameter to pfdp (monitor/setting items).

Communications

Setting Level

Advanced Function

Setting Level

Power ON

Initial Setting Level

Operation Level

Adjustment Level

Press the

O + M Keys for

at least 1 s

Only when Manual Mode was used

just before power OFF

Level changes

automatically.

Press the

S Key.

*3

Press the

S Key.

*3

Protect Level

Calibration Level

Manual Control

Level

Press the

O Key for at least 1 s.

Press the

O Key

for at least 1 s or

the

S Key for at

least 1 s*1

Used to set the MV

manually.

Used for SP, alarm

values, and other basic

settings and monitoring.

Used to set protection

for operations.

Used to change adjustment

parameters (PID constants,

adjustment sensitivity, etc.).

Press the

O + M

Keys for at least 3 s.*2

Release protection and

then enter the password

(−169) for the

amoV

(Move to Advanced

Setting Level)

parameter.

Used to set application functions.

Enter the password (1201)

while

cmov (Move to

Calibration Level

parameter) is displayed.

Used to set the input type

and other basic settings.

Press the

O Key

for at least 1 s.

Used to set up

communications.

Press the

O Key for

at least 3 s*2

Press the

O Key for less than 1 s.

(models with communications only).

Press the

O Key once.

O Key for at

least 3 s while

a-m is

displayed.

*2

S Key for at least 1 s

*1

Monitor/Setting

Item Level

Used to display

specified monitor

and setting items.

Control and auxiliary outputs stop.
