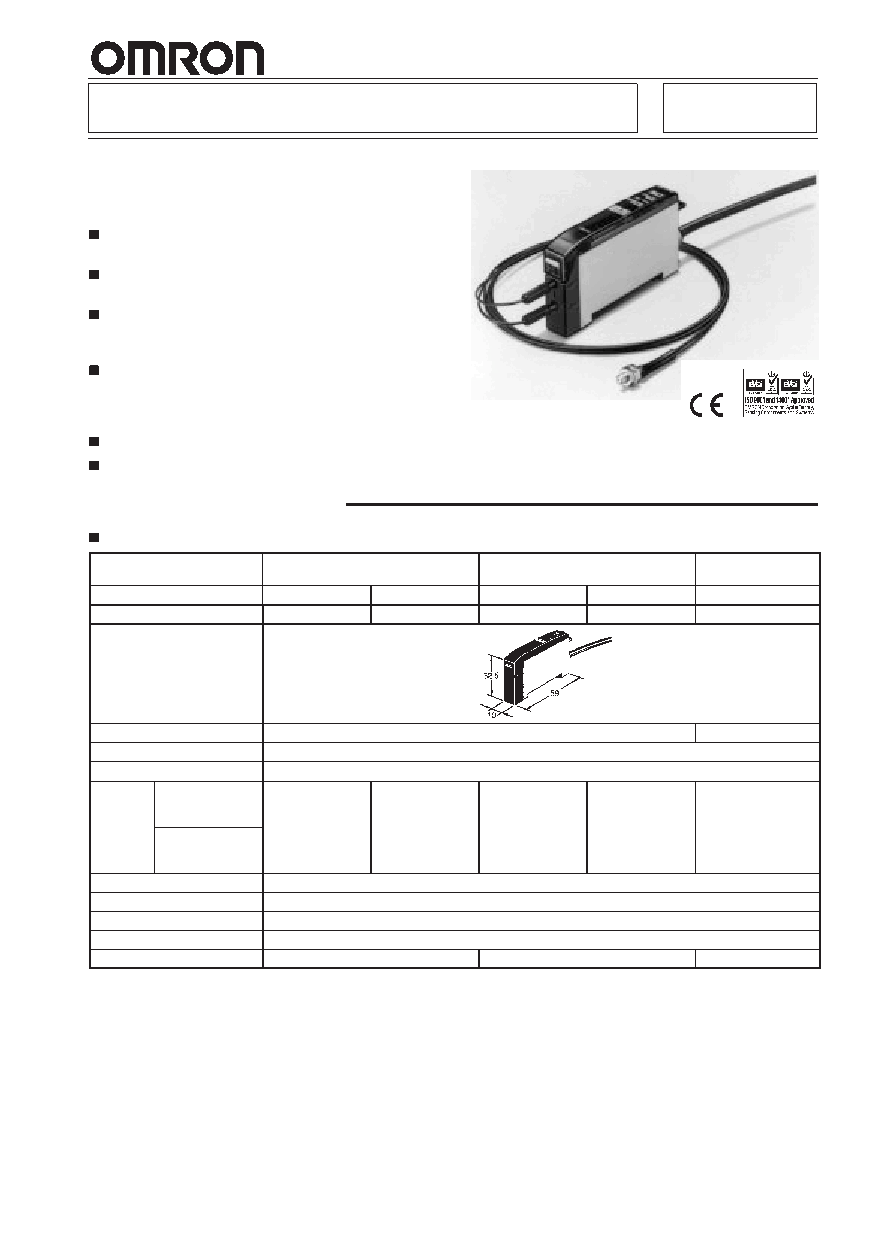

Fine Tuning Fiber Photoelectric Sensor

E3X-NH

High-precision Sensing with Auto- and

Manual-tuning

Solves All the Problems of Conventional Models

Suitable for high-precision positioning using the

fine sensitivity adjustment function.

Manual-tuning allows threshold adjustments while

sensing objects are moving.

Operation conditions can be seen at a glance

through the incident level indicators and threshold

indicators.

Auto-tuning feature incorporates an automatic

sensitivity compensation function ensuring an

optimum margin for changes in sensing objects or

ambient environments.

Offers the longest sensing distance.

Newly added mark-sensing models (blue LED).

Ordering Information

Amplifier Units

Item

General-purpose models

Timer-function models

Mark-sensing

models

Output

NPN

PNP

NPN

PNP

NPN

Model

E3X-NH11

E3X-NH41

E3X-NH21

E3X-NH51

E3X-NHB11

Appearance

Light source (Wave length)

Red LED (680 nm)

Blue LED (470 mm)

Power supply voltage

12 to 24 VDC

±10%, ripple (p-p) 10% max.

Current consumption

75 mA max.

Output

Control output

NPN open

collector,

load current:

50

A

PNP open

collector,

load current:

50

A

NPN open

collector,

load current:

50

A

PNP open

collector,

load current:

50

A

NPN open collector,

load current:

50 mA max.,

id

l

lt

Alarm output

50 mA max.,

residual voltage:

1 V max.

50 mA max.,

residual voltage:

1 V max.

50 mA max.,

residual voltage:

1 V max.

50 mA max.,

residual voltage:

1 V max.

,

residual voltage:

1 V max.

Circuit protection

Output short-circuit, reverse polarity, mutual interference prevention

Response time

1 ms max. for operation and reset respectively

Sensitivity setting

Teaching method

Fine sensitivity adjustment

Automatic or manual fine threshold adjustment (13 levels)

Timer function

---

OFF-delay timer set to 40 ms

---
