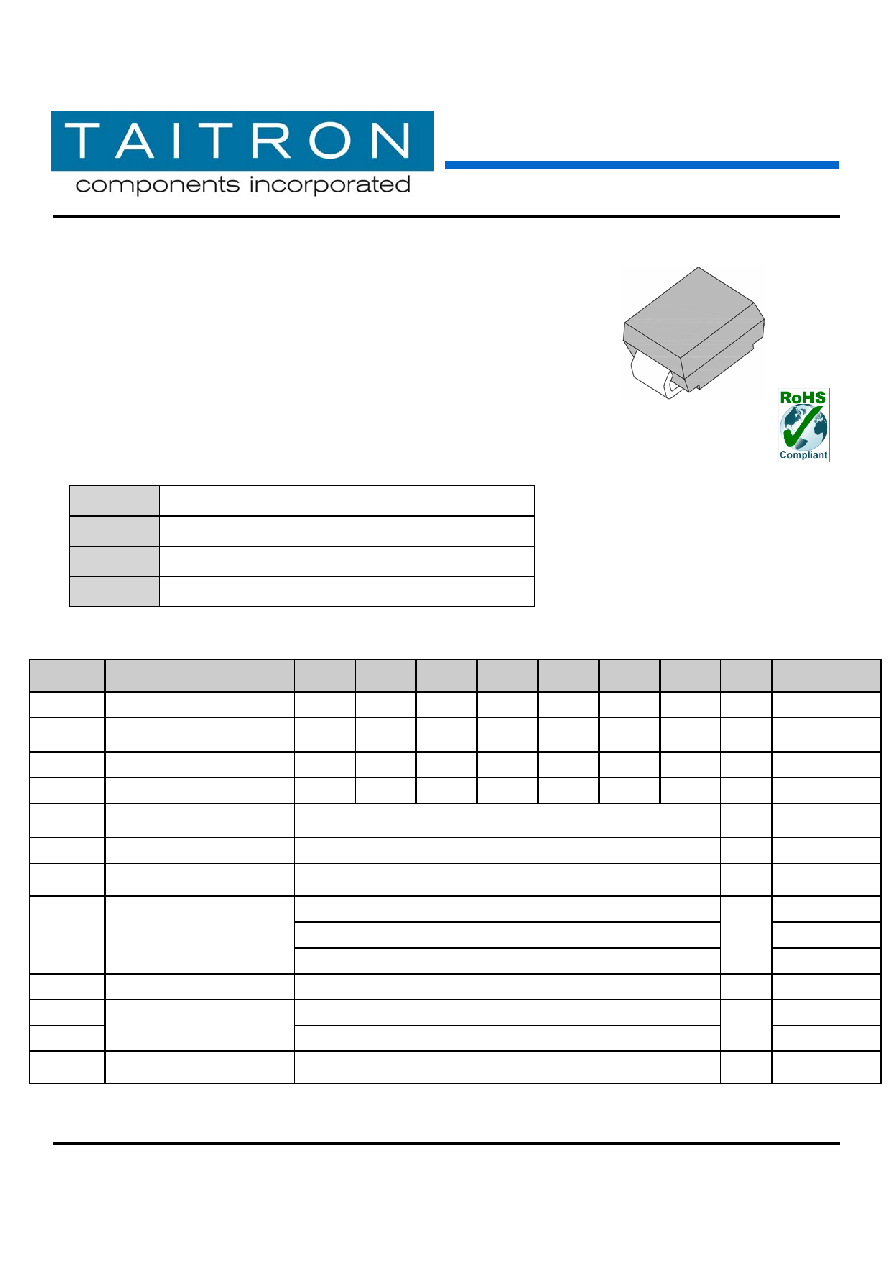

Rev. B/AH 2008-05-26

GF3AB - GF3MB

3.0A Surface Mount Sintered

Glass Passivated Rectifier

TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com

Page 1 of 5

Tel: (800)-TAITRON

(800)-824-8766

(661)-257-6060

Fax: (800)-TAITFAX

(800)-824-8329

(661)-257-6415

3.0A Surface Mount Sintered Glass Passivated Rectifier

Features

• Sintered glass passivated (SGP) rectifier chip

• Glass passivated cavity-free junction

• High forward surge current capability

• Plastic package has underwriters laboratory

flammability classification 94V-0

• High temperature soldering: 260 °C / 10 seconds at terminals

• RoHS compliant

Mechanical Data

Case:

JEDEC SMB(DO-214AA) molded plastic

Terminals:

Solder plated solderable per MIL-STD-750, Method 2026

Polarity:

Cathode end indicated by color band

Weight:

0.004 Ounce, 0.12 gram

Maximum Ratings & Electrical Characteristics (T

Ambient=25ºC unless noted)

Symbol

Description

GF3AB

GF3BB

GF3DB

GF3GB

GF3JB

GF3KB

GF3MB

Unit

Conditions

Marking Code

GF3A

GF3B

GF3D

GF3G

GF3J

GF3K

GF3M

VRRM

Max. Recurrent Peak Reverse

Voltage

50

100

200

400

600

800

1000

V

VRMS

Max. RMS Voltage

35

70

140

280

420

560

700

V

VDC

Max. DC Blocking Voltage

50

100

200

400

600

800

1000

V

IF(AV)

Max. Average Rectified

Current

3.0

A

IFSM

Peak Forward Surge Current

115

A

VF

Max. Instantaneous Forward

Voltage

1.0

V

IF=3.0A

5

TA=25 °C

50

TA=125 °C

IR

Max. DC Reverse Current at

Rated DC Blocking Voltage

100

µA

TA=150 °C

CJ

Typical Junction Capacitance

40

pF

Rθ-JA

47

Rθ-JL

Max. Thermal Resistance

13

° C/W

TJ,TSTG

Operating Junction and

Storage Temperature Range

-65 to 175

° C

SMB

(DO-214AA)
