Function

The M3T-28DP-WS is a converter for connecting the

emulation pod for PC4701 to the RSS type emulator MCU

(M3XXXXRSS, M3XXXXERSS, and M3XXXXRLSS).

Application

Use the M3T-28DP-WS to connect the 30-pin narrow-pitch

probe of emulation pod to the M3T-28DP-WS's connector.

Insert it into an RSS type emulator MCU.

Since the M3T-28DP-WS has two connectors mounted on its

board, you can connect the emulation pod probe to the target

without worrying about the target MCU's up and down

directions.

The M3T-28DP-WS is a standard equipment of the emulation

pod for PC4701 system.

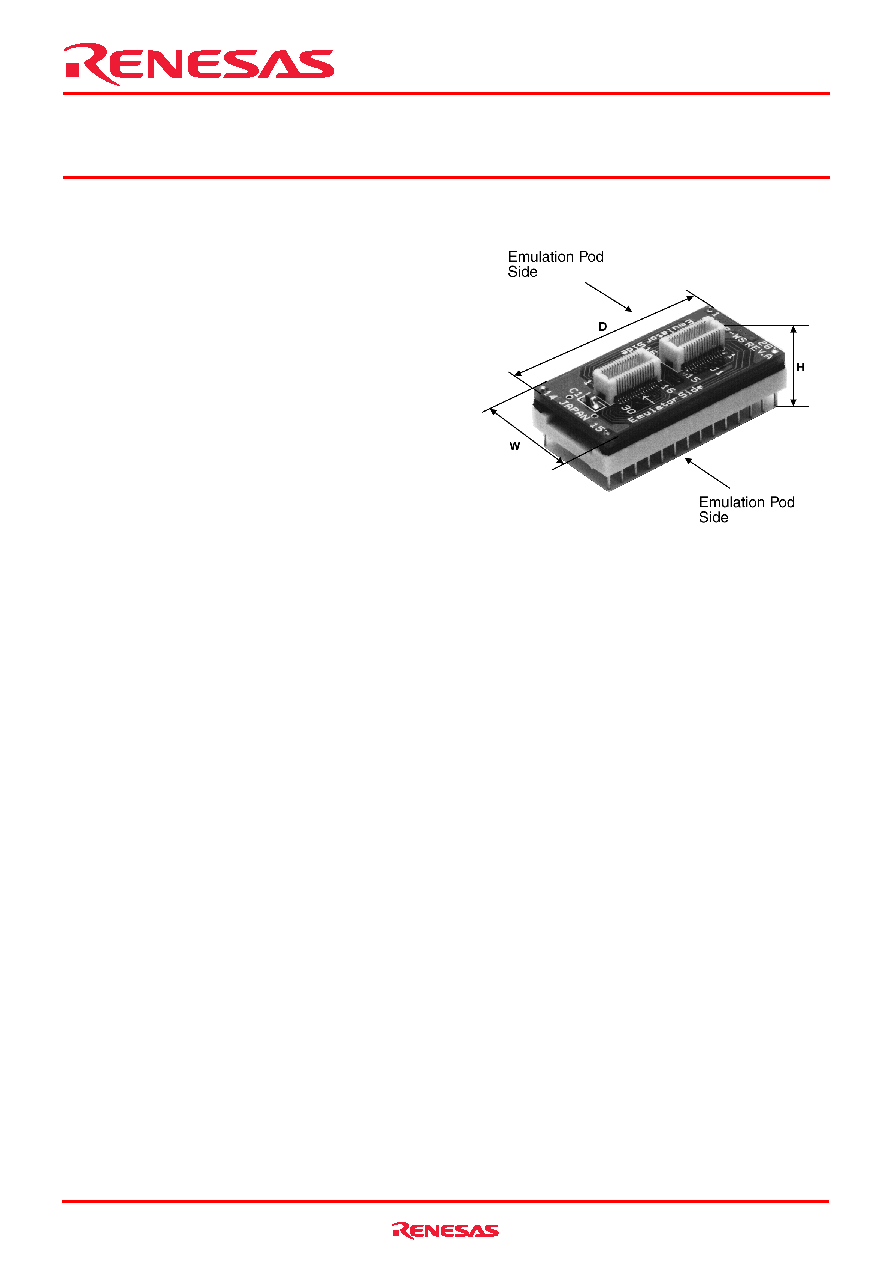

Dimensions

35.0(D)×18.0(W)×14.0(H)mm

* PC4701 is a generic name representing the PC4701U, PC4701M,

PC4701HS, PC4701L, PC4700H and PC4700L. Production of the

PC4701M, PC4701HS, PC4701L, PC4700H and PC4700L has been

discontinued.

M3T-28DP-WS

Converter for Connecting Emulator Probe to RSS Type Emulator MCU

(for PC4701 system)

[Ordering Information] See Appendix H "Ordering Information".
