Document Number: 25020

For technical questions, contact: aluminumcaps1@vishay.com

www.vishay.com

Revision: 17-Jul-08

287

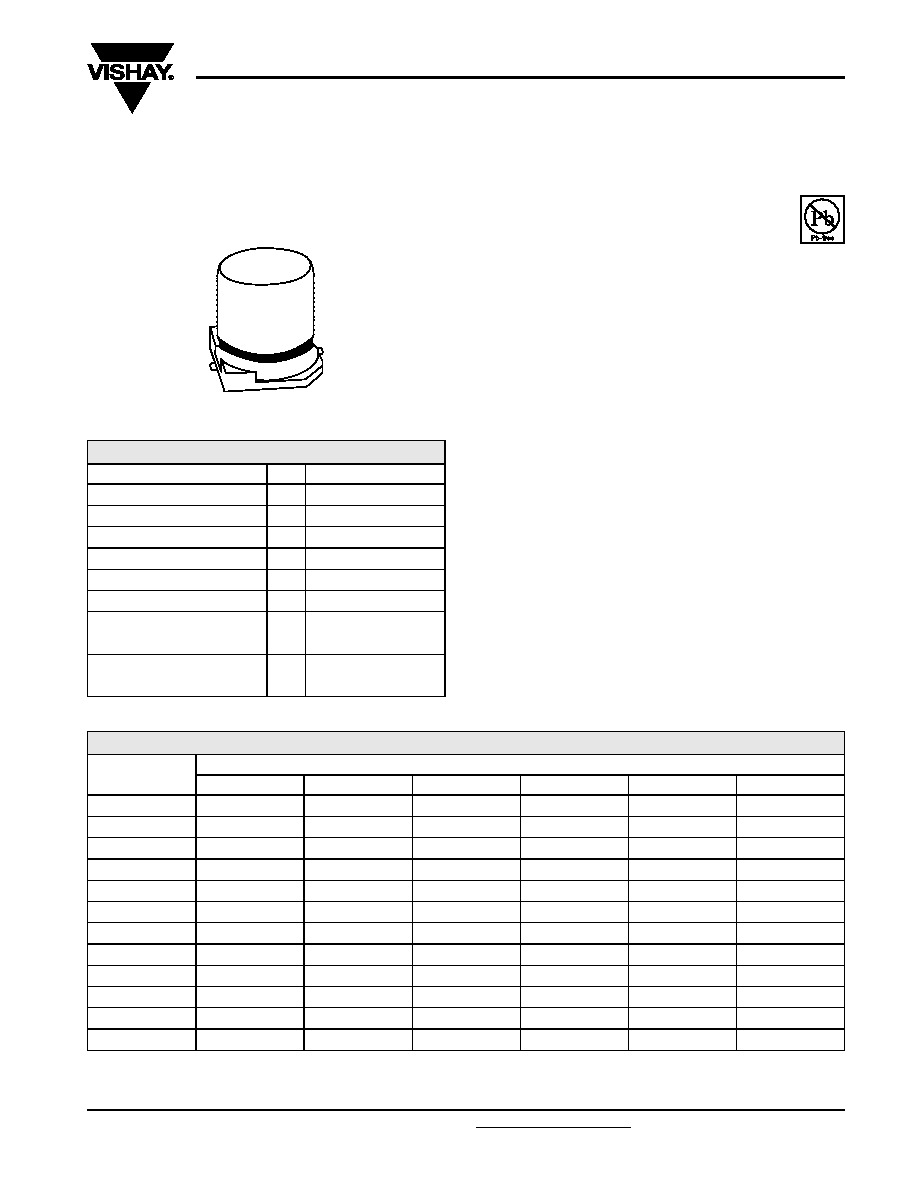

Aluminum Capacitors

ECL

Vishay Roederstein

FEATURES

• Polarized aluminum electrolytic capacitors,

non solid electrolyte

• Extra low impedance, high ripple current

• Temperature up to 105 °C

• RoHS compliant

APPLICATIONS

• SMD technology, for high mounting density

• Industrial and professional applications

• General industrial, consumer

• Smoothing, filtering, buffering

PACKAGING

• Supplied in blister tape

QUICK REFERENCE DATA

DESCRIPTION

UNIT

VALUE

Nominal case size (Ø D x L )

mm

6 x 5.8 to 12.5 x 13.5

µF

10 to 1500

Capacitance tolerance

%

± 20

Rated voltage range

V

6.3 to 100

Category temperature range

°C

- 40 to 105

Load life

h

2000

Based on sectional

specification

IEC 60384-4/

EN 130300

Climatic category

IEC 60068

40/105/56

RoHS

COMPLIANT

(µF)

RATED VOLTAGE (V)

6.3

1016

253550

10

→→

→→→

6.3 x 5.8

22

→→

→→→

6.3 x 5.8

33

→→

→→

6.3 x 5.8

8 x 6.2

47

→→

→→

6.3 x 5.8

8 x 6.2

68

→→

→

6.3 x 5.8

8 x 6.2

8 x 10

100

→→

6.3 x 5.8

8 x 6.2

8 x 10

10 x 10

220

6.3 x 5.8

6.3 x 7.7

8 x 6.2

8 x 10

10 x 10

-

330

8 x 6.2

→

8 x 10

-

-

-

470

→

8 x 10

10 x 10

-

-

-

680

→

10 x 10

-

-

-

-

1000

10 x 10

-

-

-

-

-

1500

10 x 10

-

-

-

-

-
