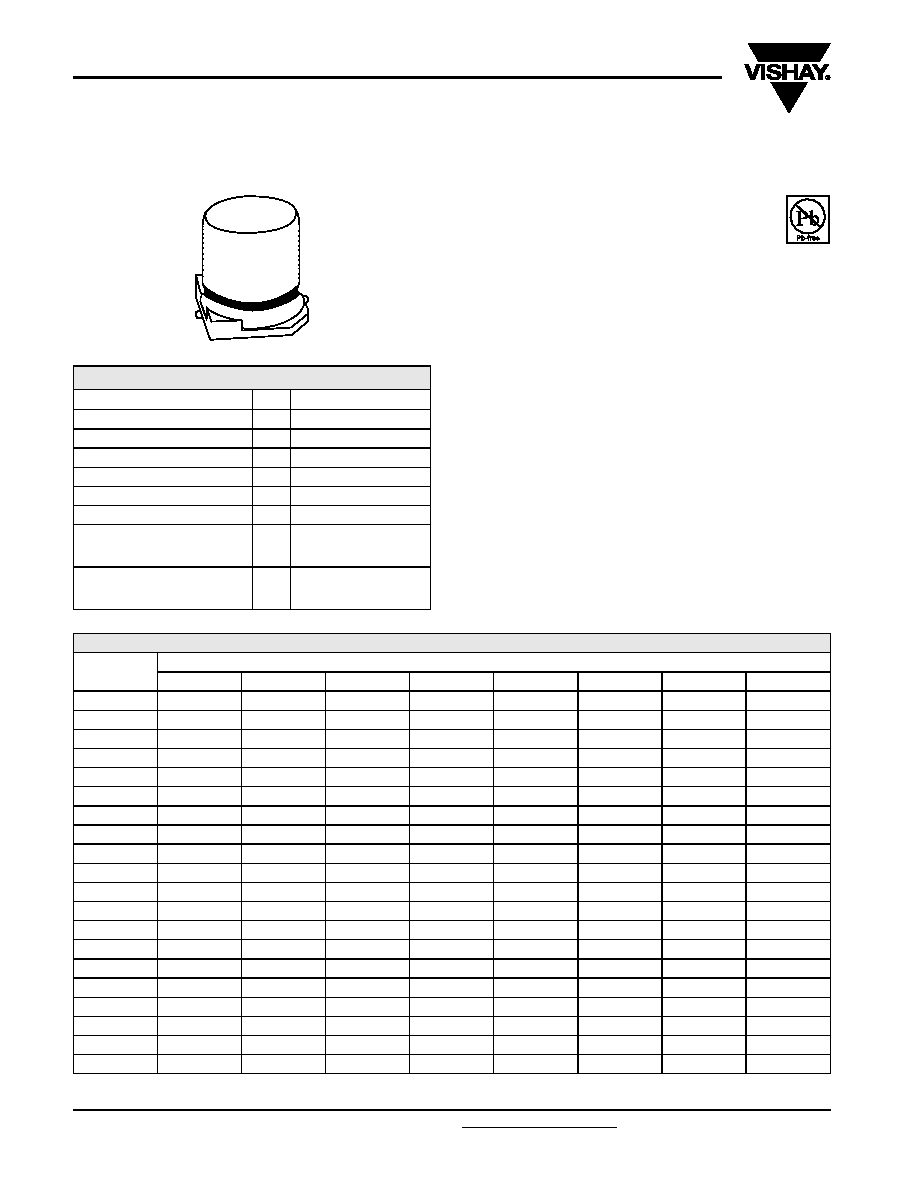

Vishay Roederstein

Aluminum Capacitors

FEATURES

• Polarized aluminum electrolytic capacitors

• SMD style

• High CU-product

• Miniature dimension

• Reflow soldering

• RoHS compliant

APPLICATIONS

• General use

• Consumer electronics

• Low-headroom, height restricted low mass units

• Filtering, smoothing, coupling

PACKAGING

• Supplied in blister tape

QUICK REFERENCE DATA

DESCRIPTION

UNIT

VALUE

Nominal case size (Ø D x L )

mm

4 x 5.3 to 12.5 x 13.5

µF

0.10 to 2200

Capacitance tolerance

%

± 20

Rated voltage range

V

6.3 to 100

Category temperature range

°C

- 40 to + 85

Load life

h

2000

Based on sectional

specification

IEC 60384-4/EN 130300

Climatic category

IEC 60068

40/105/56

RoHS

COMPLIANT

(µF)

RATED VOLTAGE (V)

6.3

1016

253550

63

100

0.10

→→→

→→

4 x 5.3

-

-

0.22

→→→

→→

4 x 5.3

-

-

0.33

→→→

→→

4 x 5.3

-

-

0.47

→→→

→→

4 x 5.3

-

-

1.0

→→→

→→

4 x 5.3

-

-

2.2

→→→

→→

4 x 5.3

→

5 x 5.3

3.3

→→→

→→

4 x 5.3

→

6.3 x 5.8

4.7

→→→

→→

5 x 5.3

→

6.3 x 5.8

10

→→→

→

4 x 5.3

5 x 5.3

6.3 x 5.8

8 x 10

22

→→→

5 x 5.3

→

6.3 x 5.3

8 x 6.2

8 x 10

33

→→→

5 x 5.3

6.3 x 5.3

6.3 x 7.7

8 x 10

10 x 10

47

→→

5 x 5.3

6.3 x 5.3

8 x 6.2

8 x 10

→

10 x 10

68

→→→

→→

→→

12.5 x 13.5

100

5 x 5.3

→

6.3 x 5.3

8 x 6.2

8 x 10

10 x 10

→

12.5 x 13.5

220

→

8 x 6.2

6.3 x 7.7

8 x 10

→

10 x 10

12.5 x 13.5

-

330

6.3 x 7.7

→

8 x 10

→

10 x 10

12.5 x 13.5

-

-

470

→

8 x 10

→

10 x 10

12.5 x 13.5

-

-

-

1000

8 x 10

10 x 10

→

12.5 x 13.5

-

-

-

-

1500

10 x 10

→

12.5 x 13.5

-

-

-

-

-

2200

→

12.5 x 13.5

-

-

-

-

-

-
