TDF1778 数据表(PDF) 2 Page - STMicroelectronics

部件名 TDF1778
功能描述  DUAL 2-A SOURCE DRIVER
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  STMICROELECTRONICS [STMicroelectronics]
网页  http://www.st.com
标志 STMICROELECTRONICS - STMicroelectronics

TDF1778 数据表(HTML) 2 Page - STMicroelectronics

  TDF1778 Datasheet HTML 1Page - STMicroelectronics TDF1778 Datasheet HTML 2Page - STMicroelectronics TDF1778 Datasheet HTML 3Page - STMicroelectronics TDF1778 Datasheet HTML 4Page - STMicroelectronics TDF1778 Datasheet HTML 5Page - STMicroelectronics TDF1778 Datasheet HTML 6Page - STMicroelectronics TDF1778 Datasheet HTML 7Page - STMicroelectronics TDF1778 Datasheet HTML 8Page - STMicroelectronics TDF1778 Datasheet HTML 9Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 2 / 10 page
background image

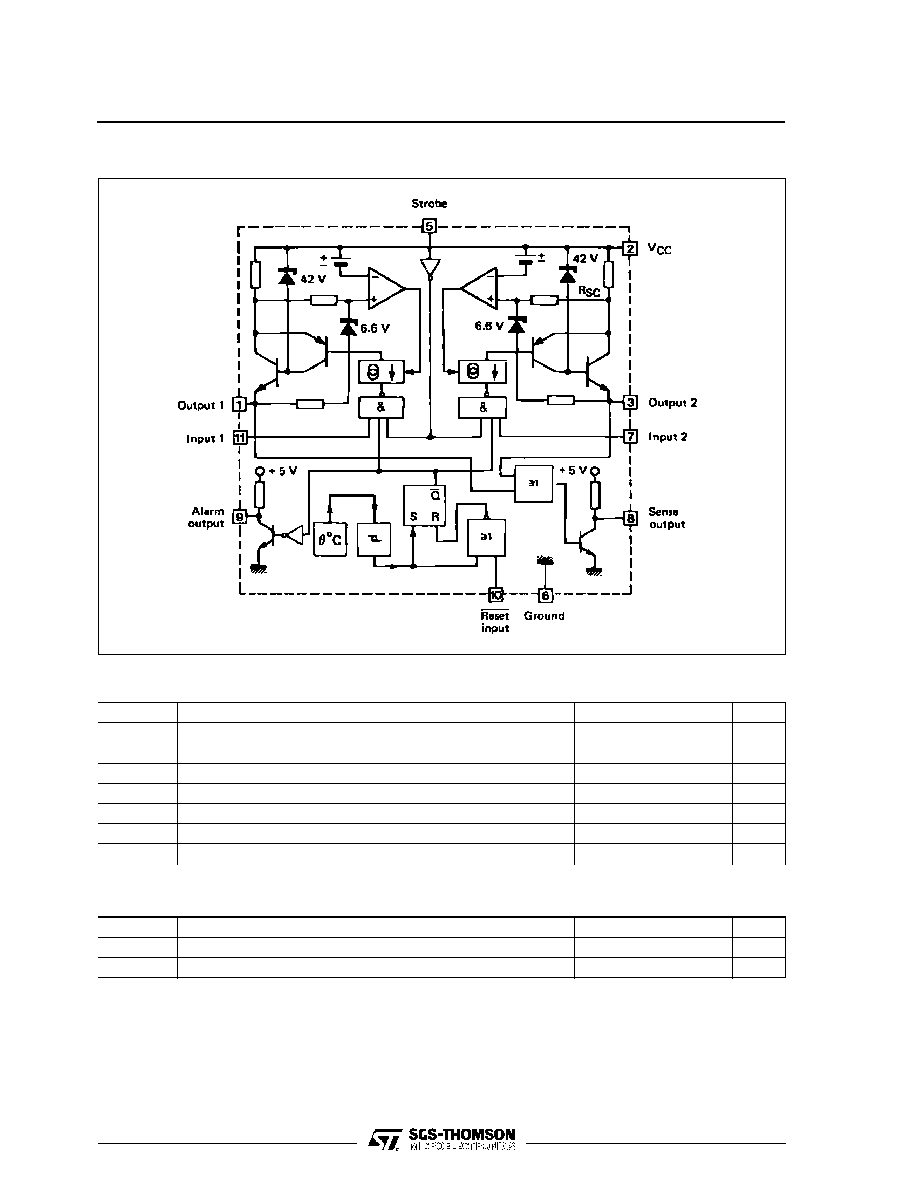

BLOCK DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
VCC
Supply Voltage
35 V (60 V/10 ms)
V
VI,Vreset
Input Voltage (pins 7, 10 and 11)
– 30 to + 50
V
Vstrobe
Strobe Input Voltage
– 0.5 to VCC
V
IO
Output Current
Internally Limited
A
Ptot
Power Dissipation
Internally Limited
W
Toper
Operating Ambient Temperature Range
– 40 to + 85
°C
Tj
Junction Temperature
+ 150
°C
THERMAL DATA
Symbol
Parameter
Value
Unit
Rth(j–c)
Junction-case Thermal Resistance
Max.
3
°C/W
Rth(j–a)
Junction-ambient Thermal Resistance
Max.
40
°C/W
TDF1778
2/10
