ADA4505-2ACBZ-R7 数据表(PDF) 10 Page - Analog Devices

部件名 ADA4505-2ACBZ-R7
功能描述  10 關A, Rail-to-Rail I/O, Zero Input Crossover Distortion Amplifiers
PDF  20 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AD [Analog Devices]
网页  http://www.analog.com
标志 AD - Analog Devices

ADA4505-2ACBZ-R7 数据表(HTML) 10 Page - Analog Devices

Back Button ADA4505-2ACBZ-R7 Datasheet HTML 6Page - Analog Devices ADA4505-2ACBZ-R7 Datasheet HTML 7Page - Analog Devices ADA4505-2ACBZ-R7 Datasheet HTML 8Page - Analog Devices ADA4505-2ACBZ-R7 Datasheet HTML 9Page - Analog Devices ADA4505-2ACBZ-R7 Datasheet HTML 10Page - Analog Devices ADA4505-2ACBZ-R7 Datasheet HTML 11Page - Analog Devices ADA4505-2ACBZ-R7 Datasheet HTML 12Page - Analog Devices ADA4505-2ACBZ-R7 Datasheet HTML 13Page - Analog Devices ADA4505-2ACBZ-R7 Datasheet HTML 14Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 10 / 20 page
background image
ADA4505-2/ADA4505-4
Rev. A | Page 10 of
20
0
100
1k
10k
100k
1M
FREQUENCY (Hz)
TA = 25°C, unless otherwise noted.
120
100
80
60
40
20
VSY = 1.8V

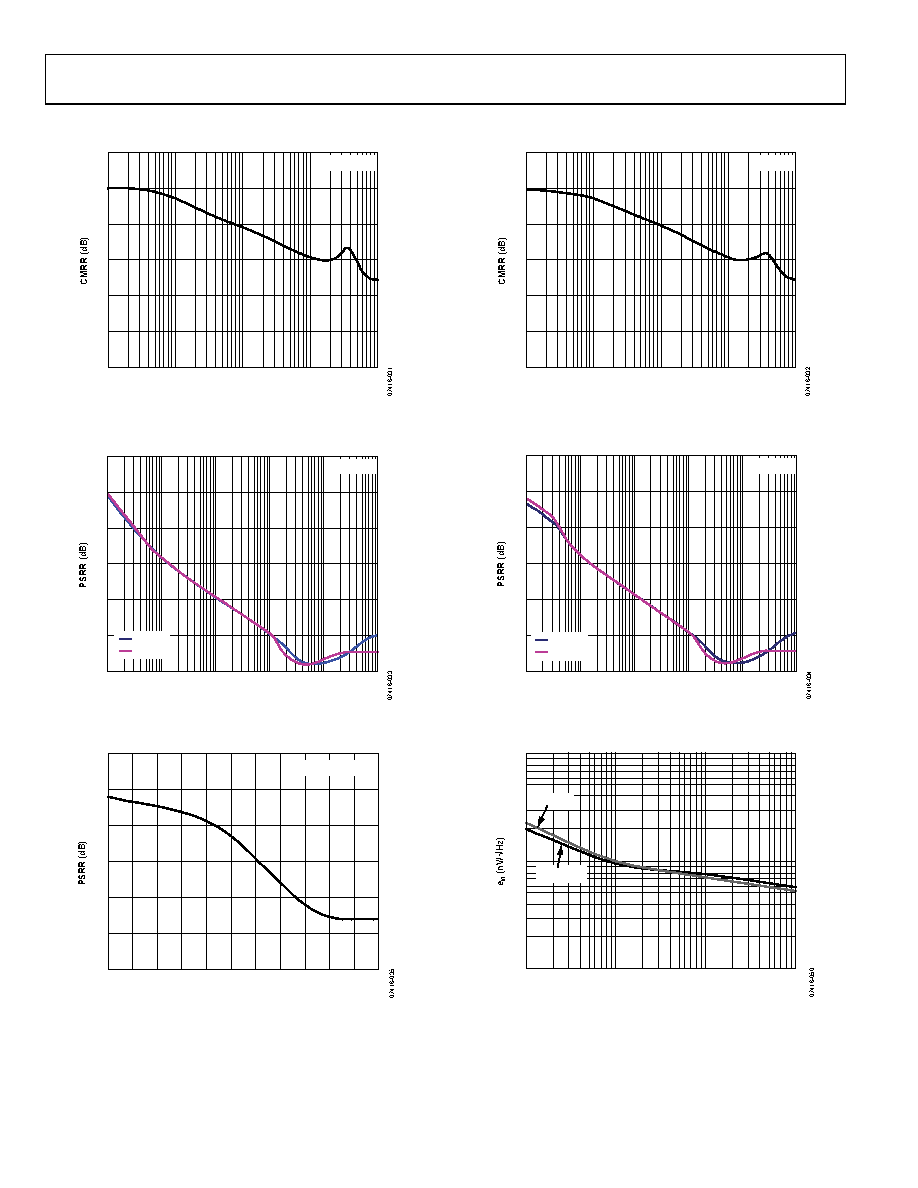

Figure 28. CMRR vs. Frequency
120
100
80
60
40
20
120
100
80
60
40
20
0
100
1k
10k
100k
1M
FREQUENCY (Hz)
VSY = 5V
Figure 31. CMRR vs. Frequency
120
100
80
60
40
20
0
10
100
1k
10k
100k
1M
FREQUENCY (Hz)
0
10
100
1k
10k
100k
1M
FREQUENCY (Hz)
VSY = 1.8V
PSRR+
PSRR–
Figure 29. PSRR vs. Frequency
140
130
120
110
100
90
VSY = 5V
PSRR+
PSRR–
Figure 32. PSRR vs. Frequency
1k
100
10
1
10
100
1000
FREQUENCY (Hz)
80
–40 –25 –10
5
20
35
50
65
80
95
110 125
TEMPERATURE (°C)
1.8V ≤ VSY ≤ 5V
Figure 30. PSRR vs. Temperature
VSY = 5V
VSY = 1.8V
Figure 33. Voltage Noise Density vs. Frequency
