Adam Technologies, Inc.

84

INTRODUCTION:

Adam Tech Flush Mount Straight PCB tail D-Sub connectors are a

popular interface for many limited space I/O applications. Offered in

9, 15 and 25 positions they are an excellent choice for a low cost

industry standard connection and are ideal for low profile design

requirements. Adam Tech connectors are manufactured with

precision stamped contacts offering a choice of contact plating and a

wide selection of mating and mounting options.

FEATURES:

Low profile space saving design

Industry standard compatibility

Durable metal shell design

Precision formed contacts

Variety of Mating and mounting options

MATING CONNECTORS:

Adam Tech D-Subminiatures and all industry standard

D-Subminiature connectors.

SPECIFICATIONS:

Material:

Standard insulator: PBT, 30% glass reinforced, rated UL94V-0

Optional Hi-Temp insulator: Nylon 6T

Insulator Color: Black

Contacts: Phosphor Bronze

Shell: Steel, Tin or Zinc plated

Hardware: Brass, Nickel plated

Contact Plating:

Electrical:

Operating voltage: 250V AC / DC max.

Current rating: 5 Amps max.

Contact resistance: 20 m

Ω max. Initial

Insulation resistance: 5000 M

Ω min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Insertion force: 0.75 lbs max

Extraction force: 0.44 lbs min

Temperature Rating:

Operating temperature: -65°C to +125°C

Soldering process temperature:

Standard insulator: 235°C

Hi-Temp insulator: 260°C

PACKAGING:

Anti-ESD plastic trays

APPROVALS AND CERTIFICATIONS:

UL Recognized Fil No. E224053

CSA Certified File No. LR1578596

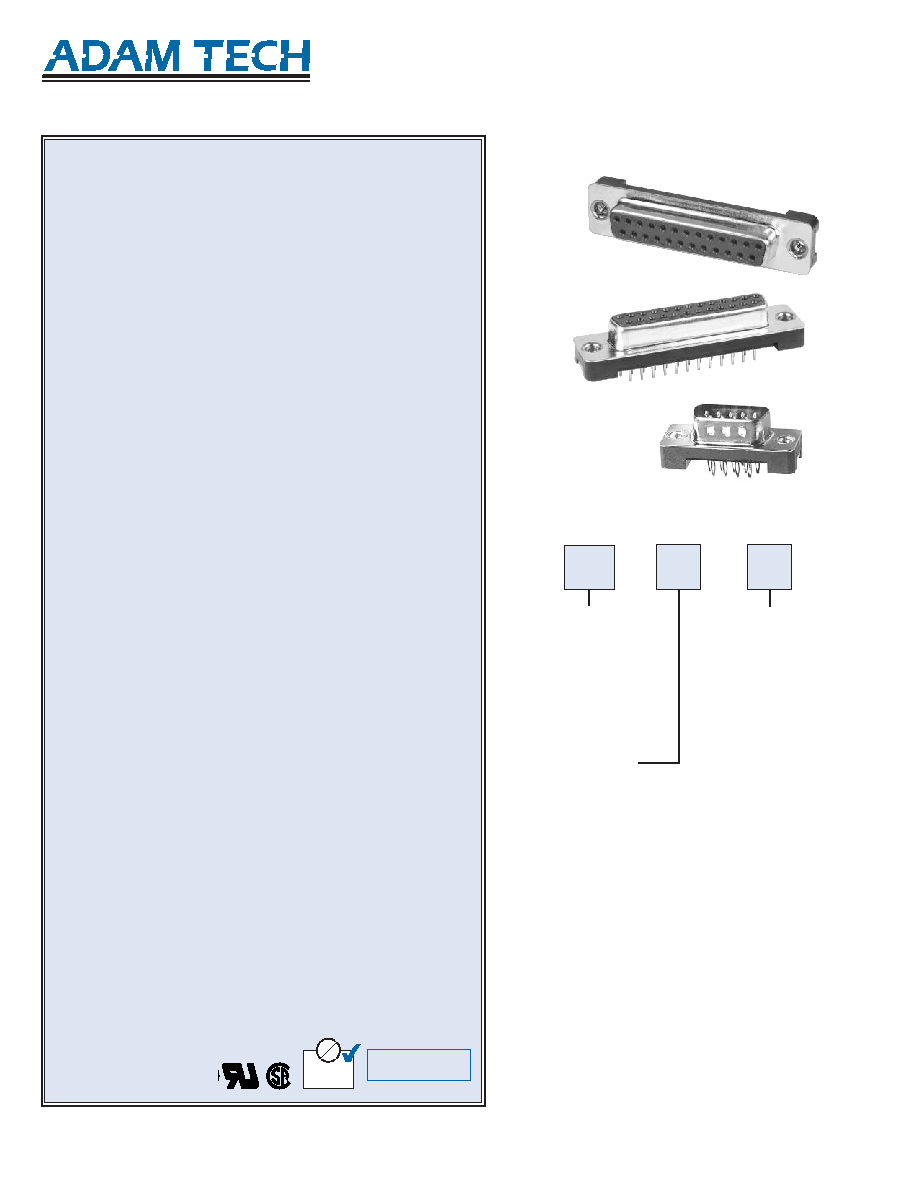

D-SUBMINIATURE

FLUSH MOUNT STRAIGHT PCB TAIL

DPA & DSA SERIES

ORDERING INFORMATION

DB25

SA

M2

SHELL SIZE/

POSITIONS

DE09 = 9 Position

DA15 = 15 Position

DB25 = 25 Position

DC37 = 37 Position

CONTACT TYPE

PA = Plug, Flush mount,

Straight PCB Tail

SA = Socket, Flush Mount,

Straight PCB Tail

MOUNTING OPTIONS

M1 = Thru Holes

Mounting

M2 = Threaded Holes

Mounting

M1-R3 = Riveted Round

Jackscrews

M1-R-BL = Riveted Round

Jackscrews with

Boardlock

M2-JS = Threaded Hole

Mounting with

removable

Jackscrews

M2- BL = Riveted #4-40

Internal Threaded

Standoffs with

Boardlocks

M2-BL-JS = Removable

Jackscrew with

Boardlock

OPTIONS:

Add designator[s) to end of part number

15 = 15 µin gold plating in contact area

30 = 30 µin gold plating in contact area

PF = Press Fit Pins

HT = Hi-Temp insulator for hi-temp soldering

processes up to 260°C

®

®

V

D E

UL

®

RoHS

COMPLIANT

2002 / 95 / EC

2002 / 95 / EC

Pb

RoHS

COMPLIANT

HI-TEMP

INSULATOR

A V A I L A B L E
