ADE-R1MHW+ 数据表(PDF) 2 Page - Mini-Circuits

部件名 ADE-R1MHW+
功能描述  High Reliability Mixer Level 13 (LO Power 13 dBm) 5 to 600 MHz
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  MINI [Mini-Circuits]
网页  http://www.minicircuits.com
标志 MINI - Mini-Circuits

ADE-R1MHW+ 数据表(HTML) 2 Page - Mini-Circuits

  ADE-R1MHW+ Datasheet HTML 1Page - Mini-Circuits ADE-R1MHW+ Datasheet HTML 2Page - Mini-Circuits
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image
ISO 9001 ISO 14001 CERTIFIED
Mini-Circuits®
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site
The Design Engineers Search Engine Provides ACTUAL Data Instantly From MINI-CIRCUITS At: www.minicircuits.com
RF/IF MICROWAVE COMPONENTS
minicircuits.com
ALL NE
W

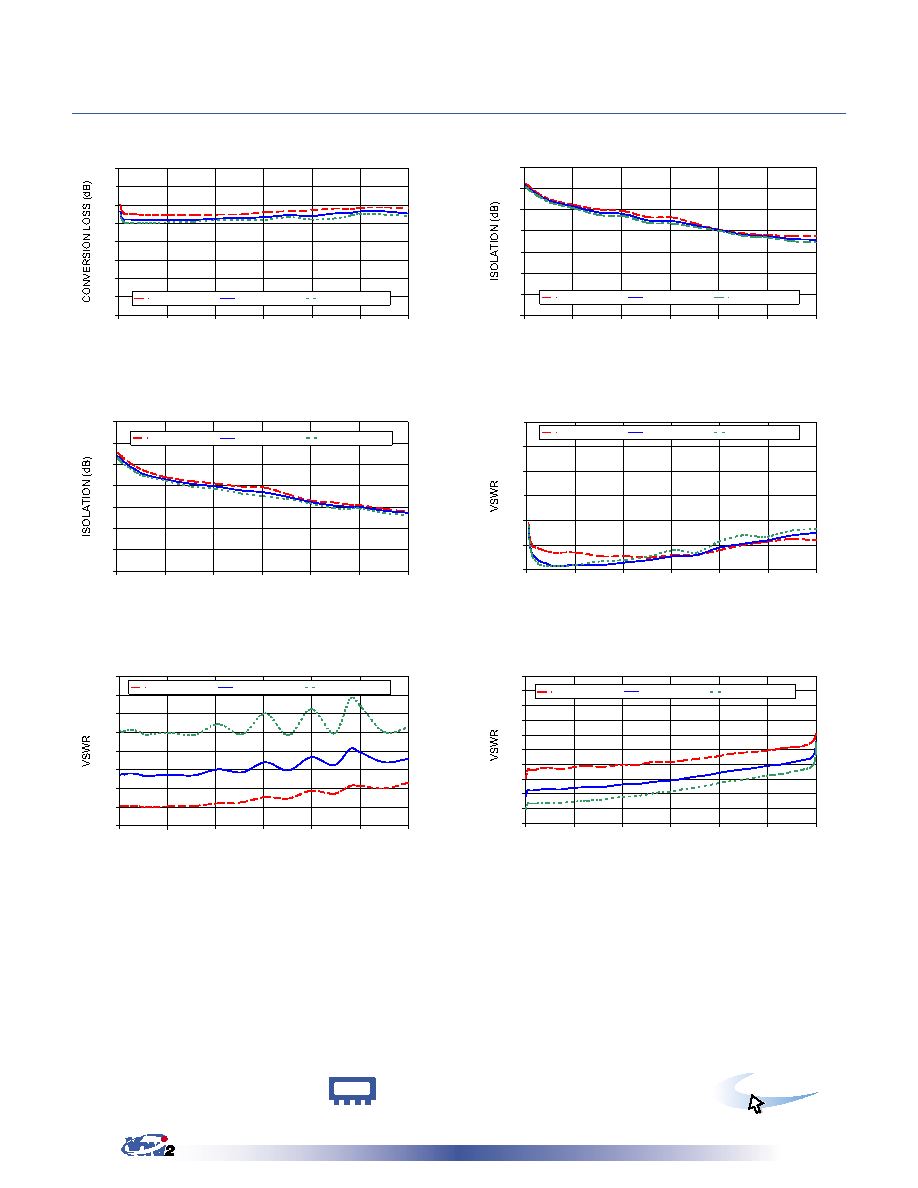

Performance Charts
Page 2 of 2
ADE-R1MHW+
CONVERSION LOSS
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
0
100
200
300
400
500
600
FREQUENCY (MHz)
LO= +10 dBm
LO= +13 dBm
LO= +16 dBm
at IF Freq of 30 MHz
ADE-R1MHW+
L-R ISOLATION
0
10
20
30
40
50
60
70
0
100
200
300
400
500
600
FREQUENCY (MHz)
LO= +10 dBm
LO= +13 dBm
LO= +16 dBm
ADE-R1MHW+
RF VSWR
1.0
1.2
1.4
1.6
1.8
2.0
2.2
0
100
200
300
400
500
600
FREQUENCY (MHz)
LO= +10 dBm
LO= +13 dBm
LO= +16 dBm
ADE-R1MHW+
L-I ISOLATION
0
10
20
30
40
50
60
70
0
100
200
300
400
500
600
FREQUENCY (MHz)
LO= +10 dBm
LO= +13 dBm
LO= +16 dBm
ADE-R1MHW+
LO VSWR
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0
100
200
300
400
500
600
FREQUENCY (MHz)
LO= +10 dBm
LO= +13 dBm
LO= +16 dBm
ADE-R1MHW+
IF VSWR
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
0
100
200
300
400
500
600
FREQUENCY (MHz)
LO= +10 dBm
LO= +13 dBm
LO= +16 dBm
ADE-R1MHW+
