ADEX-R10LH 数据表(PDF) 2 Page - Mini-Circuits

部件名 ADEX-R10LH
功能描述  High Reliability Mixer Level 10 (LO Power 10 dBm) 10 to 1000 MHz
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  MINI [Mini-Circuits]
网页  http://www.minicircuits.com
标志 MINI - Mini-Circuits

ADEX-R10LH 数据表(HTML) 2 Page - Mini-Circuits

  ADEX-R10LH Datasheet HTML 1Page - Mini-Circuits ADEX-R10LH Datasheet HTML 2Page - Mini-Circuits
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image
ISO 9001 ISO 14001 CERTIFIED
Mini-Circuits®
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site
The Design Engineers Search Engine Provides ACTUAL Data Instantly From MINI-CIRCUITS At: www.minicircuits.com
RF/IF MICROWAVE COMPONENTS
minicircuits.com
ALL NE
W
Page 2 of 2

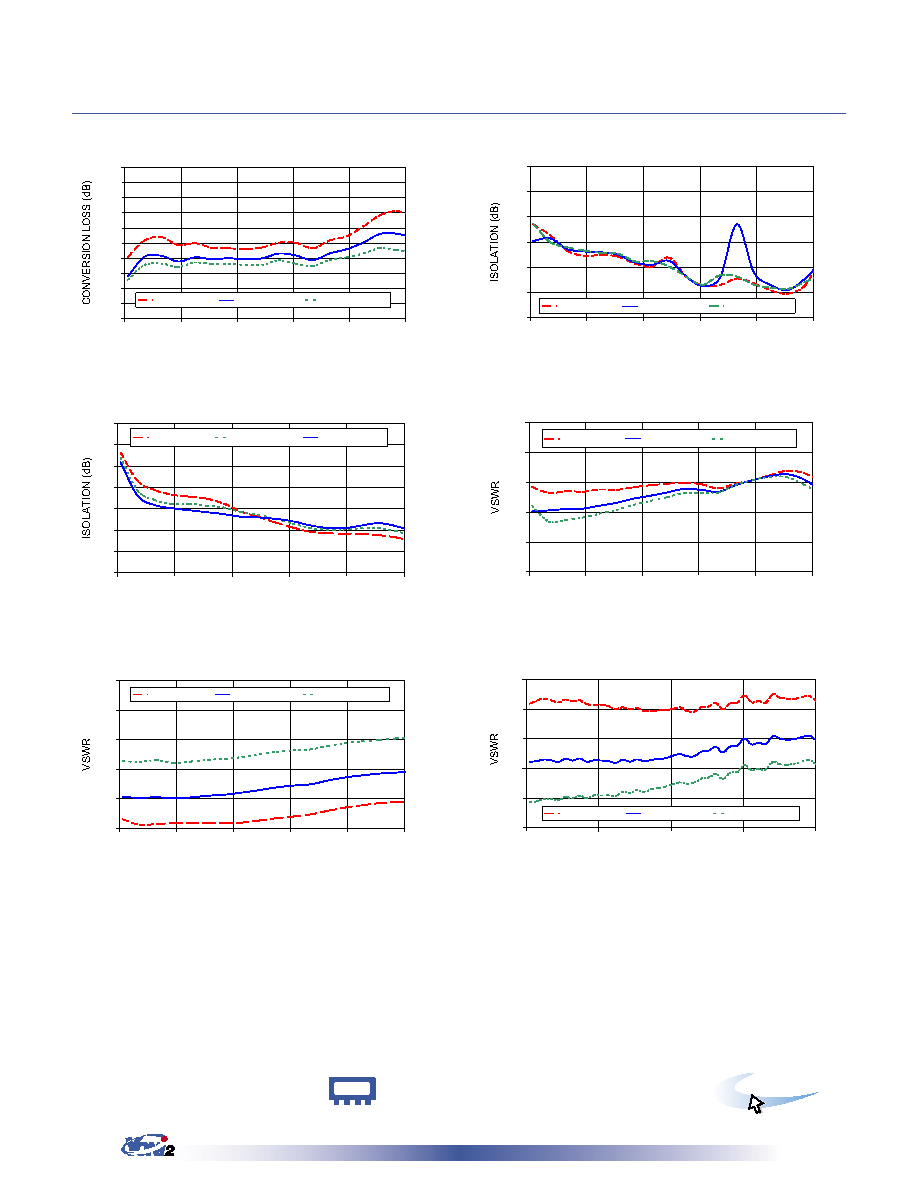

Performance Charts
ADEX-R10LH+
CONVERSION LOSS
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
0
200
400
600
800
1000
FREQUENCY (MHz)
LO= +7 dBm
LO= +10 dBm
LO= +13 dBm
at IF Freq of 30 MHz
ADEX-R10LH+
L-R ISOLATION
40
50
60
70
80
90
100
0
200
400
600
800
1000
FREQUENCY (MHz)
LO= +7 dBm
LO= +10 dBm
LO= +13 dBm
ADEX-R10LH+
RF VSWR
1.0
1.2
1.4
1.6
1.8
2.0
0
200
400
600
800
1000
FREQUENCY (MHz)
LO= +7 dBm
LO= +10 dBm
LO= +13 dBm
ADEX-R10LH+
L-I ISOLATION
10
20
30
40
50
60
70
80
0
200
400
600
800
1000
FREQUENCY (MHz)
LO= +7 dBm
LO= +10 dBm
LO= +13 dBm
ADEX-R10LH+
LO VSWR
1.0
1.5
2.0
2.5
3.0
3.5
0
200
400
600
800
1000
FREQUENCY (MHz)
LO= +7 dBm
LO= +10 dBm
LO= +13 dBm
ADEX-R10LH+
IF VSWR
1.0
1.2
1.4
1.6
1.8
2.0
0
200
400
600
800
FREQUENCY (MHz)
LO= +7 dBm
LO= +10 dBm
LO= +13 dBm
ADEX-R10LH+
