Functional Specifications

Ordering Information

DMS-EB-RMS-C AC-to-RMS conversion board

DMS-BZL1-C

Bezel assembly

DMS-BZL2-C

Bezel assembly with sealing gasket

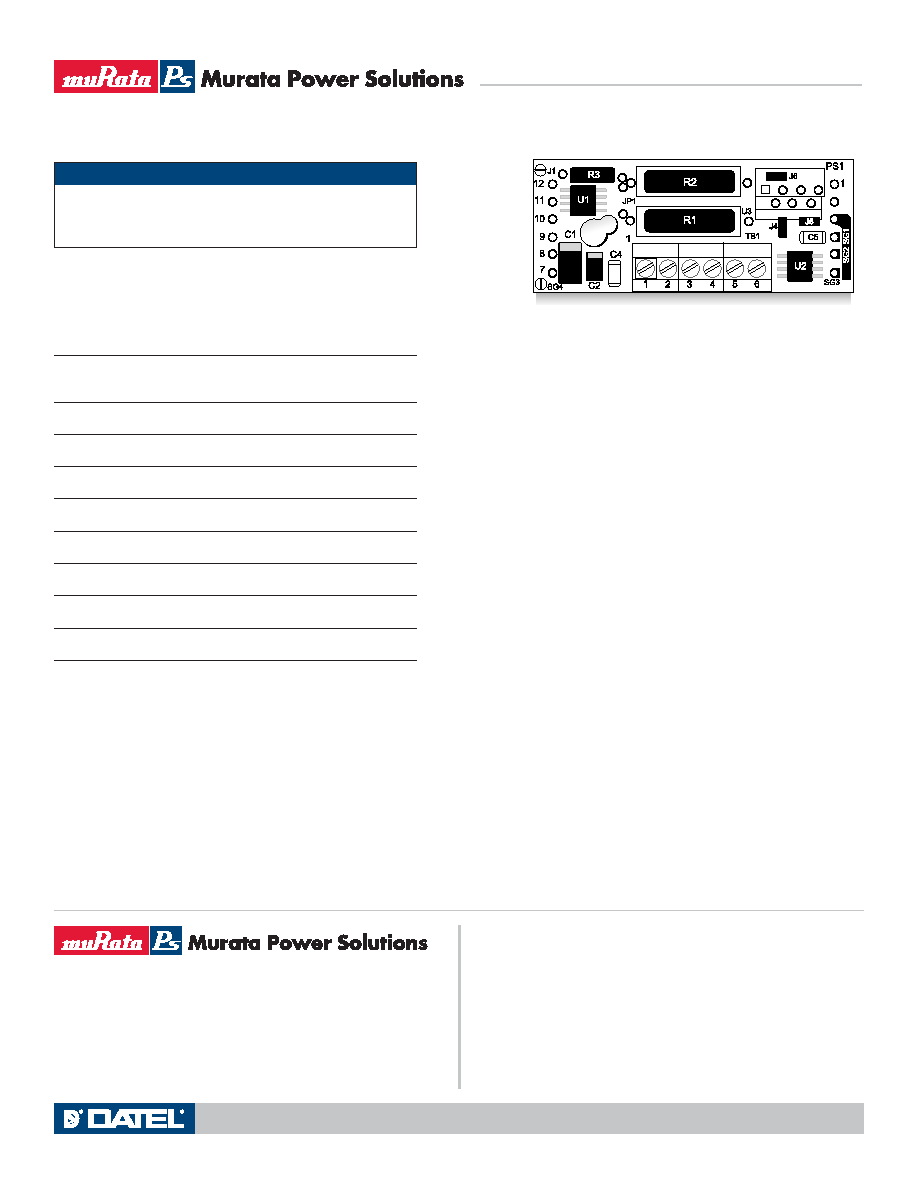

Figure 2. DMS-EB-RMS Board

Vac Measurement Range:

±200mV meters

0 to 199.9Vac

±2V meters

0 to 750Vac

Conversion Accuracy:

0-200Vac

±0.5%

0-750Vac

±2%

Crest Factors

3, maximum

Input Frequency Range

40Hz to 2kHz

Primary Operating Power

+5V (±5%)

Current Consumption (Board only)

+0.5mA typ., +1mA max.

Operating Temperature Range

0 to +60°C

Storage Temperature Range

–20 to +75°C

Humidity

0 to 95%, non-condensing

Dimensions

2.02" (51.31mm)W x 0.83" (21.08mm)H

DMS-EB-RMS

AC-to-RMS Converter Application Board for DMS-30PC/LCD Meters
