F i n i s a r

Features:

● High reliability

● Low insertion Loss

● High Isolation

● Optimized for different

wavelengths

● Wide operating

temperature range

Specifications:

Single stage free space isolator specifications

:

*Note: Over all wavelengths and temperatures.

Parameters

Units

Specification

CWL

nm

1310

1550

Operating

wavelength

nm

1300-1320

1540-1560

Operating

temperature

°C

-40 to 85

Insertion loss

dB

< 0.3

Min. Isolation *

dB

> 20

> 21

Isolation

at

center

wavelength

dB

>33 dB @ 23°C

Clear aperture

mm

> 0.8 diameter

Tilt angle

DEG

6 +/- 1

Storage temperature

°C

-40 to +100

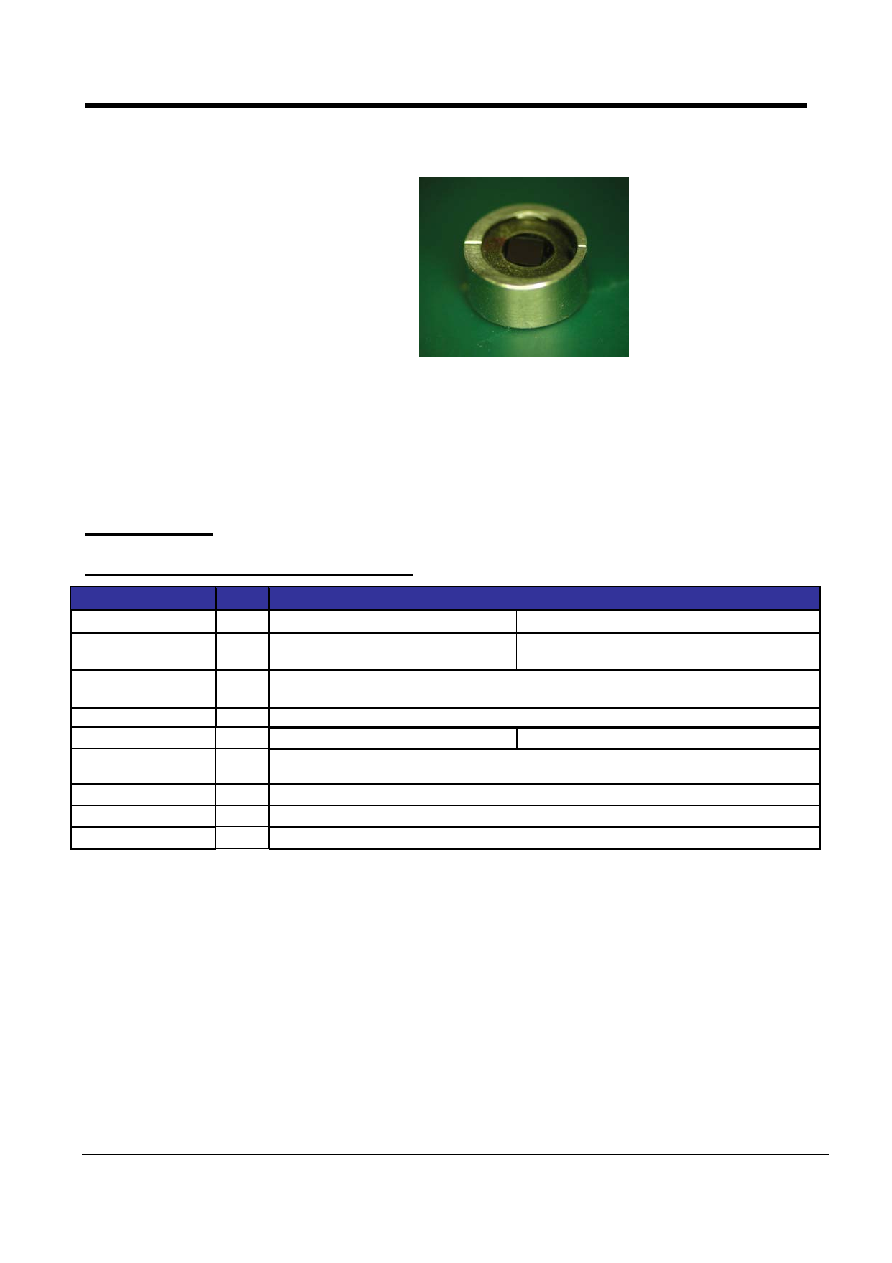

Free Space Isolator

Finisar free space isolators are used in various TOSAs, which require isolation to prevent

feedback into the laser. Available in single stage and semi-double stage designs.

Finisar free space isolators offer excellent performance with low insertion loss, high

isolation. Our proprietary bonding process, and years of volume manufacturing experience,

results in a high reliability record. Bare isolator chips survive more than 5,000hrs of damp

heat testing without delamination.

Finisar Shanghai Inc.

No. 66 Huiqing Rd., East Zhangjiang Hi-Tech Park, Shanghai,

China 201201

Main: +86-21-38559200

Fax: +86-21-68919894

Finisar Corporation

1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA

Main: (408) 548-1000 Fax: (408)543-0083

Feb.09 Rev.A
