Applications

• Multi-phase regulators

• Voltage Regulator Module (VRM)

• Portable electronics

• Servers and workstations

• Data networking and storage systems

• Notebook and desktop computers

• Graphics cards and battery power systems

• DCR sensing

Environmental Data

• Storage temperature range: -40°C to +125°C

• Operating temperature range: -40°C to +125°C

(Range is application specific)

• Solder reflow temperature: J-STD-020D compliant

Packaging

• Supplied in tape and reel packaging, 900 parts per reel, 13” dia. reel

Description

• 125°C maximum total temperature operation

• 11.0 x 8.0 x 4.90mm surface mount package

• Ferrite core material

• High current carrying capacity

• Low core losses

• Controlled DCR tolerance for sensing circuits

• Inductance range from 101nH to 226nH

• Current range from 39 to 81Amps

• Frequency range up to 2MHz

• RoHS compliant

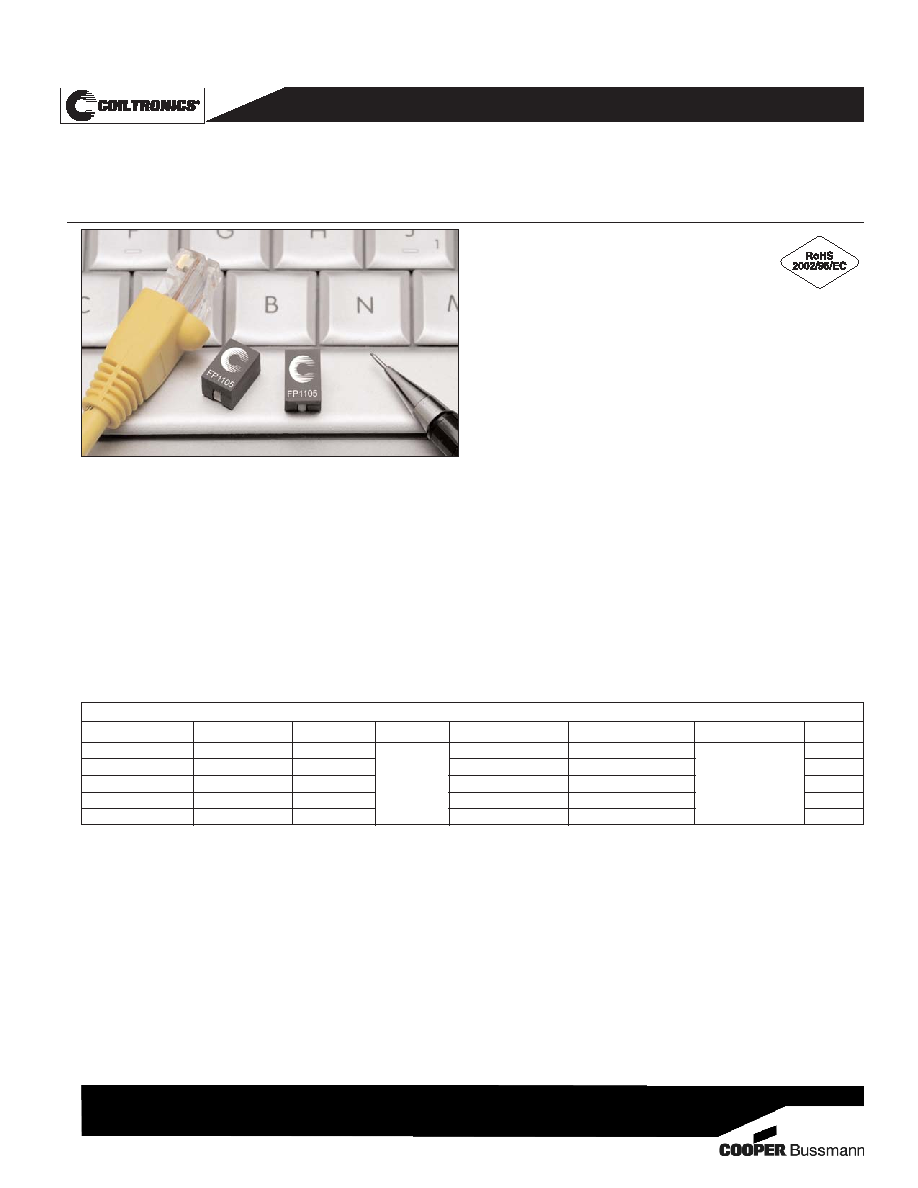

High Current, Low-Profile Power Inductors

FLAT-PAC™ FP1105 Series

05-05-08

BU-SB08211

Page 1 of 4

Data Sheet: 4324

SMD Device

1 Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.10Vrms, 0.0Adc

2 Full Load Inductance (FLL) Test Parameters: 100kHz, 0.1Vrms,Isat1

3Irms: DC current for an approximate temperature rise of 40°C without core loss. Derating is

necessary for AC currents. PCB pad layout, trace thickness and width, air-flow and proximity of

other heat generating components will affect the temperature rise. It is recommended the part

temperature not exceed 125°C under worst case operating conditions verified in the end

application.

4Isat1: Peak current for approximately 20% rolloff at +25°C.

5Isat2: Peak current for approximately 20% rolloff at +125°C.

6 K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K * L * ΔI * 10

-3,B

p-p : (Gauss),

K: (K-factor from table), L: (inductance in nH),

ΔI (peak-to-peak ripple current in amps).

7 Part Number Definition: FP1105Rx-Rxx-R

• FP1105 = Product code and size

• Rx is the DCR indicator

• Rxx= Inductance value in

μH, R = decimal point

• “-R” suffix = RoHS compliant

Product Specifications

Part Number

OCL

Irms

FP1105R1-R10-R

100

72

81

63

467

FP1105R1-R12-R

120

86

66

50

467

FP1105R1-R15-R

150

109

46

54

42

0.35 ± 8.6%

467

FP1105R1-R20-R

192

138

42

34

467

FP1105R1-R22-R

226

163

39

28

467
