DRQ73-R33-R 数据表(PDF) 4 Page - Cooper Bussmann, Inc.

部件名 DRQ73-R33-R
功能描述  Dual Winding, Shielded Inductors/Transformer
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  COOPER [Cooper Bussmann, Inc.]
网页  http://www.cooperbussmann.com
标志 COOPER - Cooper Bussmann, Inc.

DRQ73-R33-R 数据表(HTML) 4 Page - Cooper Bussmann, Inc.

  DRQ73-R33-R Datasheet HTML 1Page - Cooper Bussmann, Inc. DRQ73-R33-R Datasheet HTML 2Page - Cooper Bussmann, Inc. DRQ73-R33-R Datasheet HTML 3Page - Cooper Bussmann, Inc. DRQ73-R33-R Datasheet HTML 4Page - Cooper Bussmann, Inc. DRQ73-R33-R Datasheet HTML 5Page - Cooper Bussmann, Inc. DRQ73-R33-R Datasheet HTML 6Page - Cooper Bussmann, Inc. DRQ73-R33-R Datasheet HTML 7Page - Cooper Bussmann, Inc.
Zoom Inzoom in Zoom Outzoom out
 4 / 7 page
background image
1207
BU-SB07326
Page 4 of 7

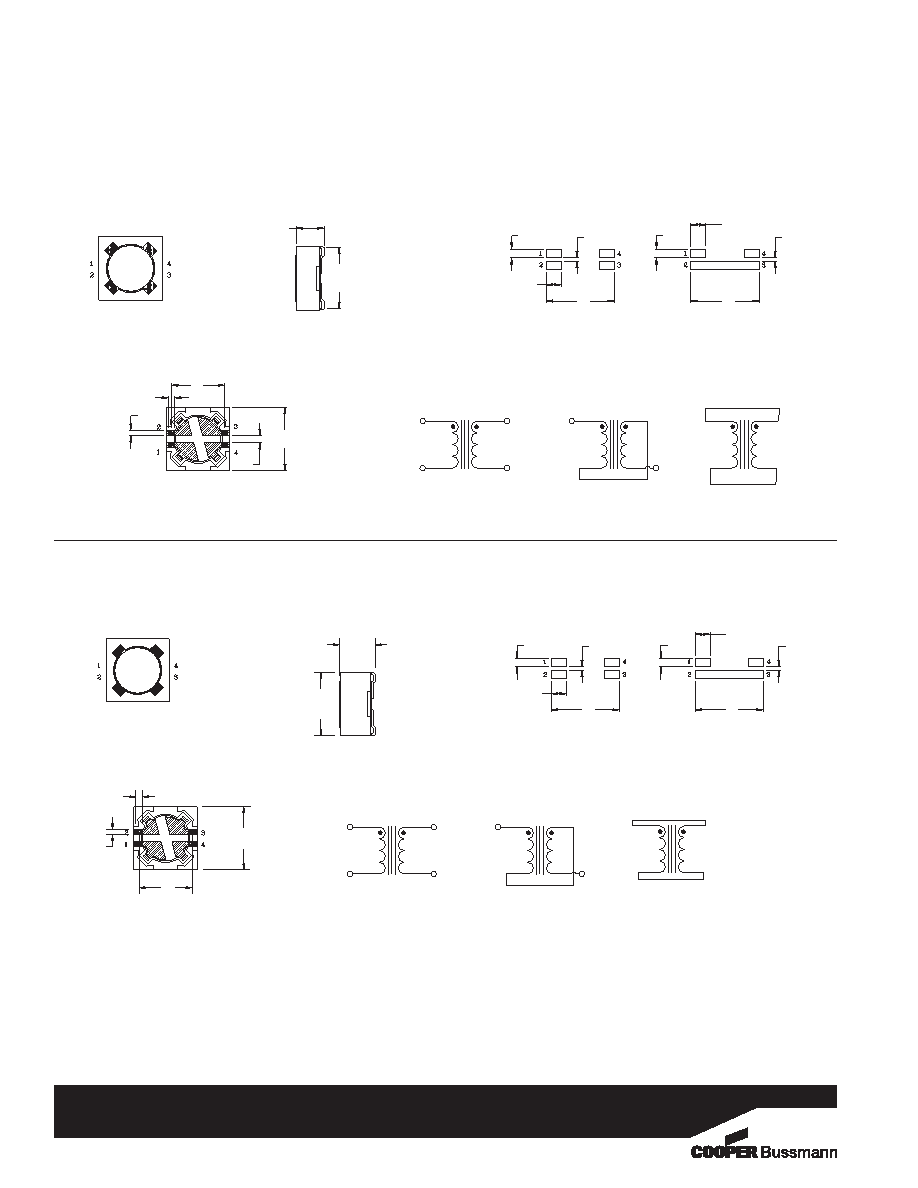

Data Sheet 4311
