CTX110652-R 数据表(PDF) 3 Page - Cooper Bussmann, Inc.

部件名 CTX110652-R
功能描述  CCFL Transformer Application Note
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  COOPER [Cooper Bussmann, Inc.]
网页  http://www.cooperbussmann.com
标志 COOPER - Cooper Bussmann, Inc.

CTX110652-R 数据表(HTML) 3 Page - Cooper Bussmann, Inc.

  CTX110652-R Datasheet HTML 1Page - Cooper Bussmann, Inc. CTX110652-R Datasheet HTML 2Page - Cooper Bussmann, Inc. CTX110652-R Datasheet HTML 3Page - Cooper Bussmann, Inc. CTX110652-R Datasheet HTML 4Page - Cooper Bussmann, Inc.
Zoom Inzoom in Zoom Outzoom out

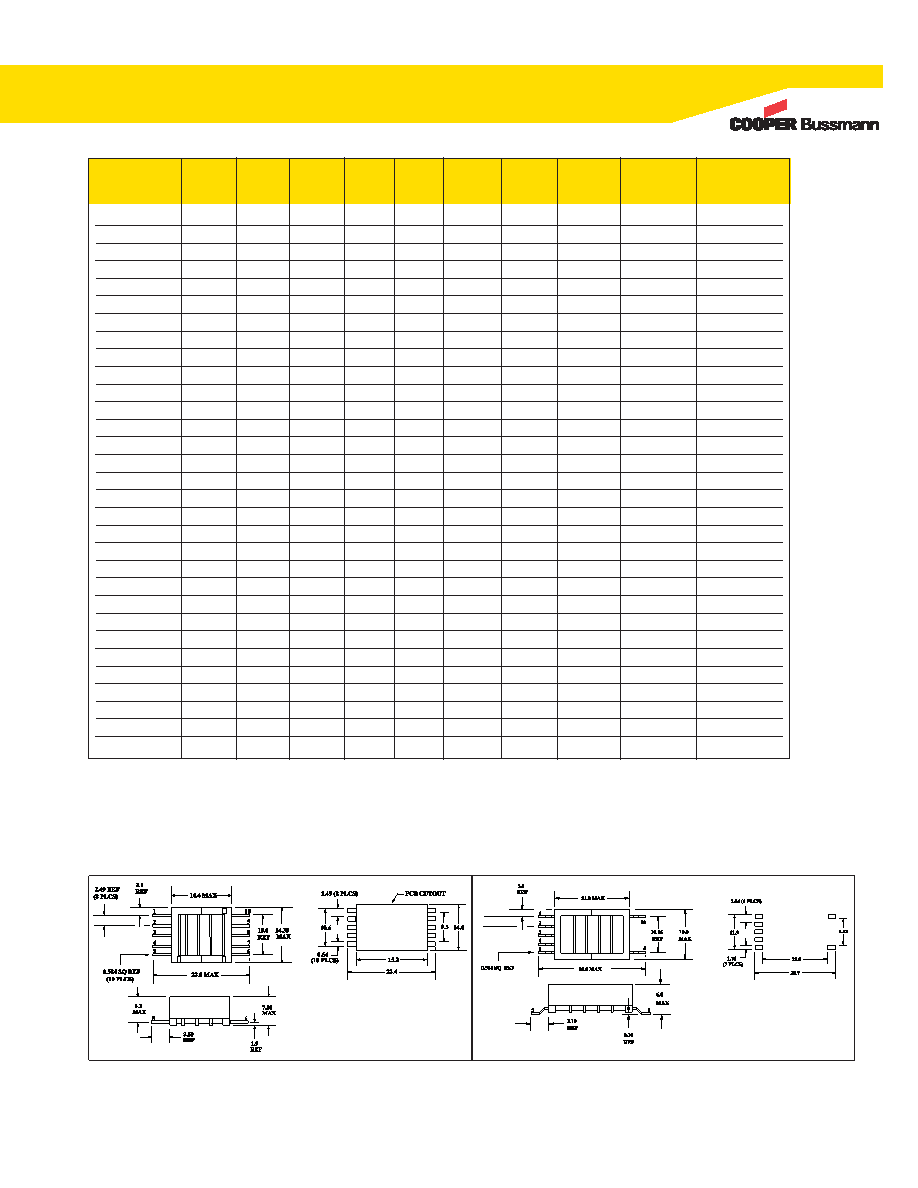

 3 / 4 page
background image
Part
Power
TR1
TR2
Lpri
Vpri
Isec
DCRpri
DCRsec Schematic Mechanical
Number
Watts
Ns/Np
Np/FB
μH
Volts
mA max
Ω max
Ω max Reference
Reference
CTX110652-R
2.5
67
6
43
20
5
0.220
285
A
A
CTX110655-R
2.5
67
6
43
20
5
0.220
285
B
A
CTX110657-R
2.5
86
2
26
15
5
0.212
285
B
A
CTX110659-R
2.5
100
4
19
13
5
0.190
285
B
A
CTX210652-R
2.5
67
6
43
20
5
0.220
285
A
C
CTX210655-R
2.5
67
6
43
20
5
0.220
285
B
C
CTX210657-R
2.5
86
2
26
15
5
0.212
285
B
C
CTX210659-R
2.5
100
4
19
13
5
0.190
285
B
C
CTX210403-R
4.00
50
6
44
26
7
0.220
165
C
B
CTX210407-R
4.00
86
4.7
27
15
7
0.160
220
C
B
CTX210409-R
4.00
100
4
20
13
7
0.160
220
C
B
CTX210411-R
4.00
125
4
20
10
7
0.160
330
C
B
CTX310403-R
4.00
50
6
44
26
7
0.220
165
C
D
CTX310407-R
4.00
86
4.7
27
15
7
0.160
220
C
D
CTX310409-R
4.00
100
4
20
13
7
0.160
220
C
D
CTX310411-R
4.00
125
4
20
10
7
0.160
330
C
D
CTX110600-R
6.00
67
6
44
20
12
0.160
176
D
E
CTX110603-R
6.00
50
6
44
26
12
0.160
132
C
E
CTX110605-R
6.00
67
6
44
20
12
0.160
176
C
E
CTX110607-R
6.00
86
4.7
27
15
12
0.132
176
C
E
CTX110609-R
6.00
100
6
20
13
12
0.132
176
C
E
CTX110611-R
6.00
125
4
20
13
12
0.132
291
C
E
CTX210600-R
6.00
67
6
44
20
12
0.160
176
D
F
CTX210603-R
6.00
50
6
44
26
12
0.160
132
C
F
CTX210605-R
6.00
67
6
44
20
12
0.160
176
C
F
CTX210607-R
6.00
86
4.7
27
15
12
0.132
176
C
F
CTX210609-R
6.00
100
6
20
13
12
0.132
176
C
F
CTX210611-R
6.00
125
4
20
13
12
0.132
291
C
F
CTX410805-R
14.00
67
5
24
30
30
0.030
262
F
G
CTX410807-R
14.00
86
4
16
23
30
0.024
272
F
G
CTX410809-R
14.00
100
4
16
23
30
0.024
314
F
G
Full primary turns used in turns ratio calculation.
Ns/Np= Turns Secondary/Turns Primary.
Np/FB= Turns Primary/FeedBack Winding.
