Ultra-Miniature SMT DIP Slides

Series JS

PACKAGING (CONTINUED)

(2.7)

1.06

(0.3)

.012

(6.6)

.260

5

°

Direction of Feed

(1.5) Dia Typ

.059

(1.5) Dia Typ

.059

(4.0) Typ

.157

(12.0) Typ

.472

(2.0) Typ

.079

(1.75)

.069

(11.5)

.453

(24.0)

.945

(8.7)

.343

(4.0)

.157

(2.3)

.091

Direction of Feed

(1.5) Dia Typ

.059

(1.5) Dia Typ

.059

(4.0) Typ

.157

(12.0) Typ

.472

(2.0) Typ

.079

(1.75)

.069

(11.5)

.453

(24.0)

.945

(8.7)

.343

(4.0)

.157

(2.3)

.091

(2.7)

1.06

(0.3)

.012

(11.7)

.461

5

°

(80.0) Dia

3.150

(30.4) Max

1.197

(24.4)

.961

R

Typ

(2.0)

.079

(10.5)

.413

Typ

(6.5)

.256

(330.0)

13.0

Overall Dia

Reel Dimensions for JS0404FP4-R & JS0408FP4-R

Tape Dimensions for JS0408FP4-R

Tape Dimensions for JS0404FP4-R

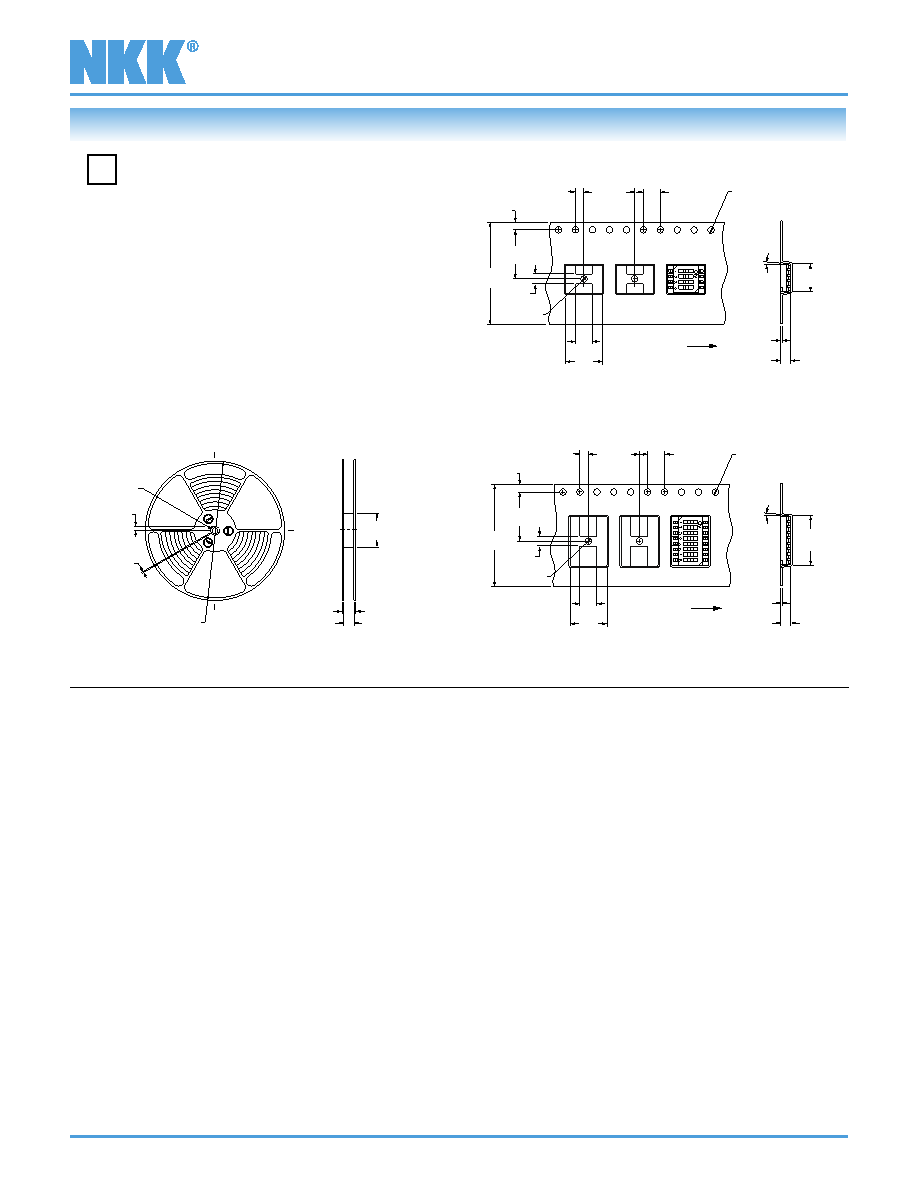

Tape-Reel Packaging for Flush Actuator

Switches are packaged in OFF position.

Switches are not available in bulk and must

be ordered in the following increments:

JS0404FP4-R: 2,000 pieces per tape-reel

JS0408FP4-R: 2,000 pieces per tape-reel

Minimum Leader Length: 15.75” (400mm)

Minimum Trailer Length:

6.3” (160mm)

Tape-reel packaging meets EIA-481-2 Standard.
