Ultra-Miniature SMT DIP Slides

Series JS

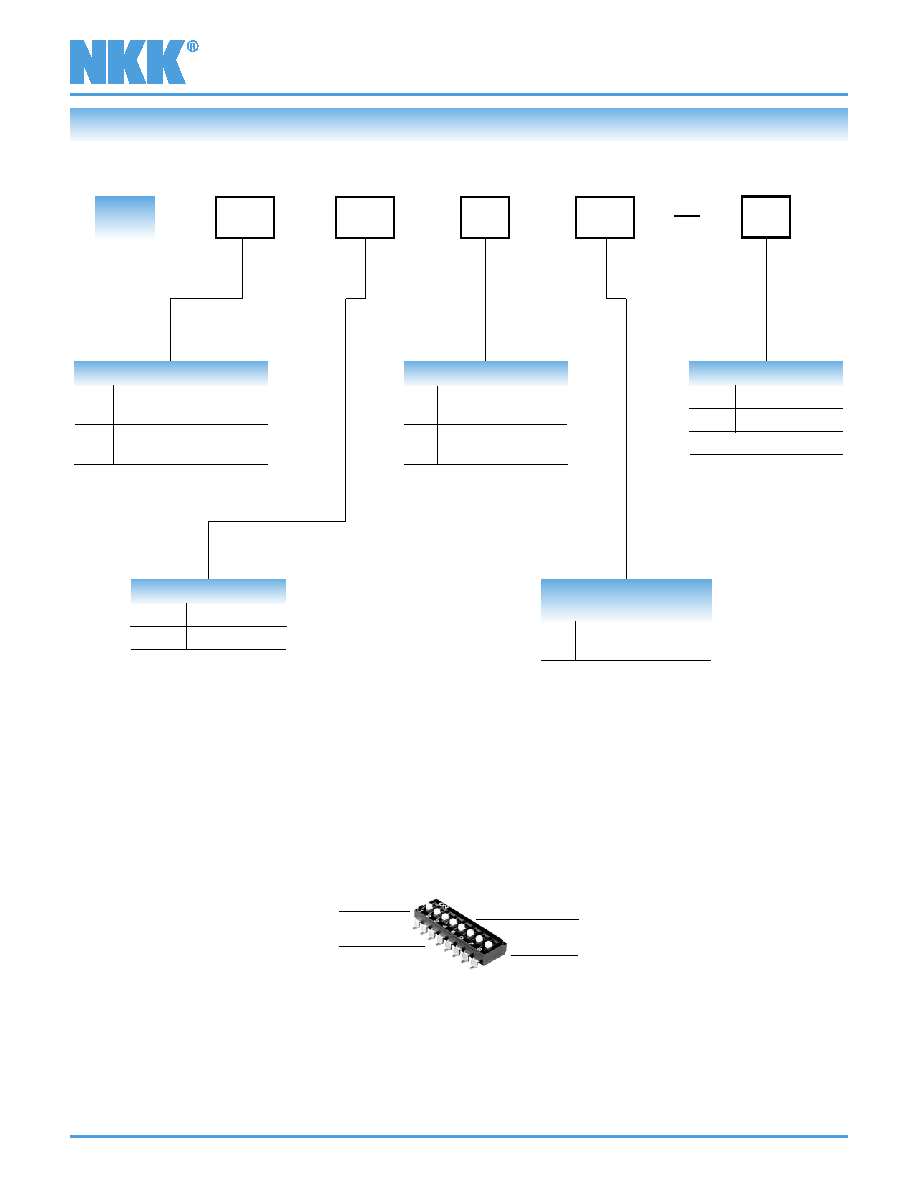

TYPICAL SWITCH ORDERING EXAMPLE

02

JS

SPST OFF-ON Circuit

Gold Contacts with 25mA Rating

Extended Slide Actuator, 8 Positions

.100” (2.54mm) Terminal Spacing

MOUNTING

02

SMT .100” (2.54mm)

for Extended Actuator

04

SMT .050” (1.27mm)

for Flush Actuator

CONTACT MATERIAL

& RATING

P4

Gold Rated

25mA @ 24V DC

A

DESCRIPTION FOR TYPICAL ORDERING EXAMPLE

JS0208AP4-S

P4

NO. OF POSITIONS

04

4 Positions

08

8 Positions

S

PACKAGING

S

Stick-Tube

R

Tape-Reel

Not available in bulk

08

ACTUATOR

A

Extended for 02

Mounting Code

F

Flush for 04

Mounting Code

Stick-Tube Packaging
