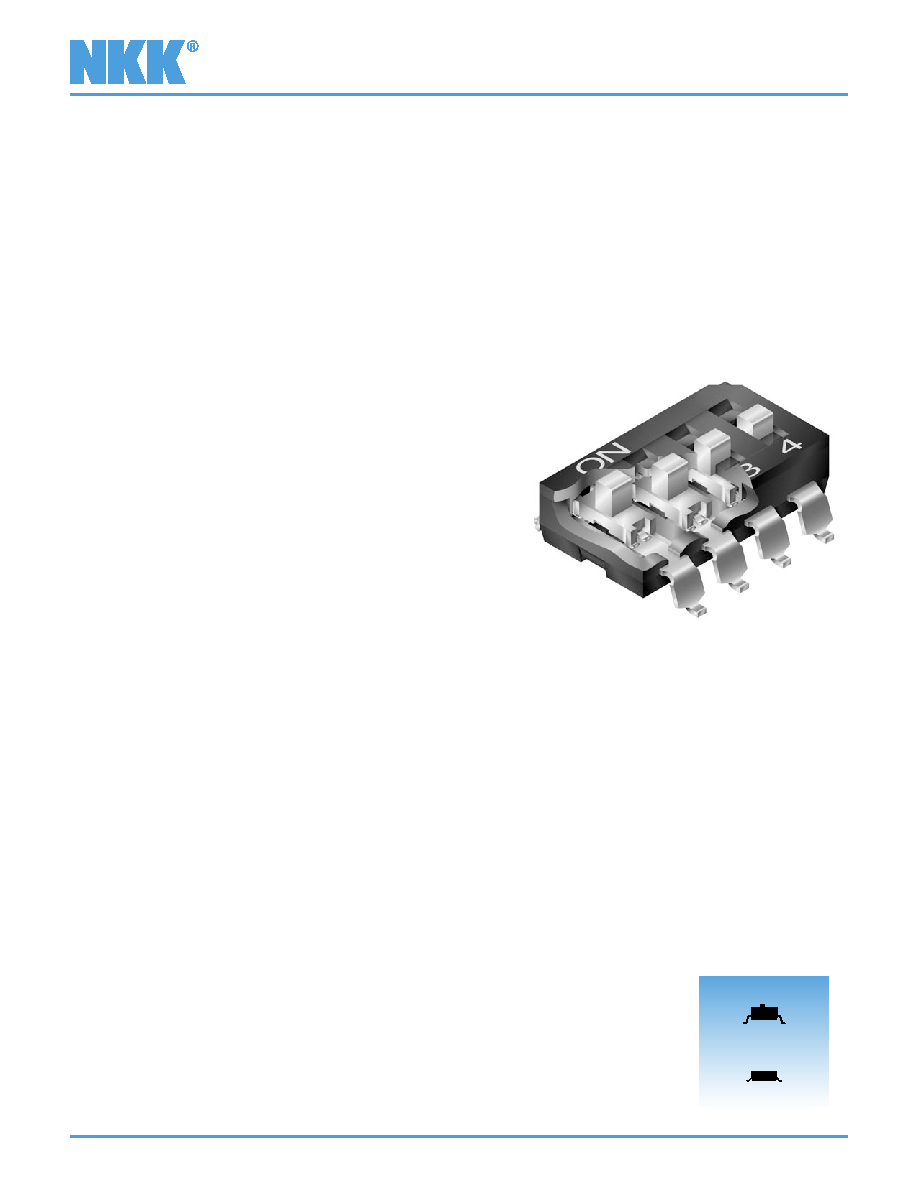

Ultra-Miniature SMT DIP Slides

Series JS

Distinctive Characteristics

Extended and flush slide actuators available.

Twin sliding contact mechanism with self-cleaning action (JS02)

provides smooth actuation and produces high contact reliability.

Gold plated contacts prevent oxidation and sulfide effect

and provide stable contact resistance.

Use of self-extinguishing UL94V-0 certified material

in cover and base provides high arc resistance and

high insulation resistance.

Gull-wing terminals ensure secure PCB mounting

and prevent dislodging during vapor phase and

infrared convection reflow soldering.

Terminal spacing conforms to standard PCB grid.

For JS02: .100” (2.54mm)

For JS04: .050” (1.27mm)

End-to-end stackable.

Packaged in tape-reel or stick-tube. Tape-reel packaging meets

EIA-481-2 Standard.

Coplanarity: all considered surfaces must lie between two parallel planes

that are a maximum distance apart of .0059” (0.15mm). (Additional

coplanarity details in Terms and Acronyms in the Supplement section.)

Actual Sizes

JS02

JS04
