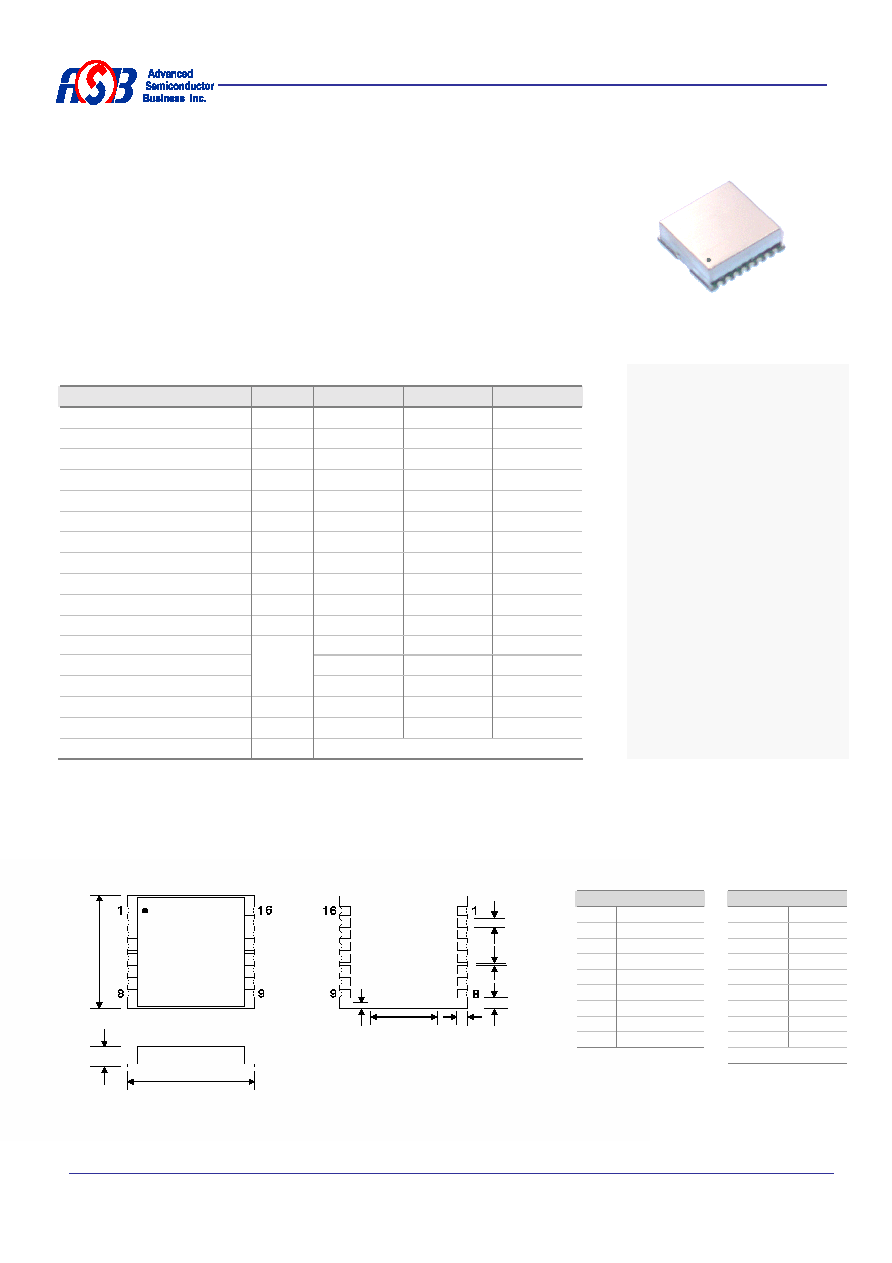

1 / 1 page

1/1

www.asb.co.kr

November 2006

plerowTM APL1515-R

PLL Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

1515.42

Output Power

dBm

-1

0

1

Supply Voltage

V

4.7

5

5.3

Current Consumption

mA

25

40

Channel Step Size

kHz

500

2

nd Harmonics

dBc

-25

-30

Spurious Level

dBc

-75

Lock Time

ms

3

5

Reference Frequency

MHz

10

Reference Input Level

dBm

1

3

5

Phase Noise (C / N)

@ 10 kHz

-103

-108

@ 100 kHz

-115

-120

@ 1MHz

dBc/Hz

-125

-130

Output Impedance

Ω

50

Operating Temp. Range

°C

-40

25

80

Package Type & Size

mm

SMT, 19.0W

×19.0L×5.8H

1) Measurement conditions are as follows: T = 25

°C, VCC = 5 V, Freq. = 1515.42 MHz, 50 ohm system.

Pin Configuration

1

GND

2

GND

3

GND

4

OSC IN

9

VCC (VCO)

13

RF OUT

15

VCP (PLL)

16

LOCK DETECT

Others

Ground

Dimension (mm)

A

19.0

B

19.0

C

5.8

D

1.5

E

0.5

F

1.75

G

1.35

H

15.0

I

0.9

Tolerance:

± 0.2

Features

Specifications

Outline Drawing

·

0 dBm Output Level at 1515.42 MHz

·

Channel Step Size : 500 kHz

·

2

nd Harmonic : < -30 dBc

·

Spurious Level : < -75 dBc

·

Lock Time : < 5 ms

·

40 mA Current Consumption

A

F

E

D

C

B

H

G

Top View

Side View

Bottom View

I

Description

The plerow

TM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7223

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejon 302-716, Korea
