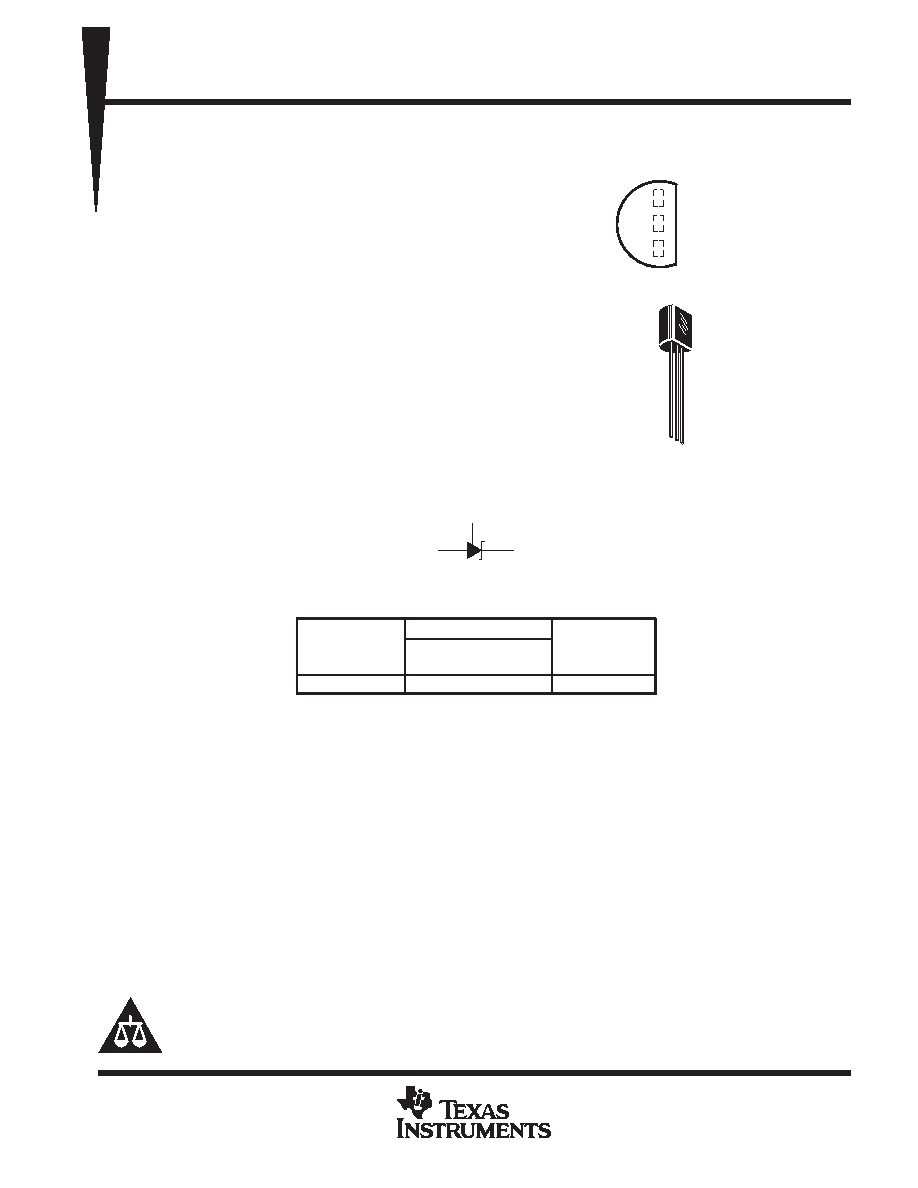

TL430

ADJUSTABLE SHUNT REGULATORS

SLVS050B – JUNE 1976 – REVISED JULY 1999

1

POST OFFICE BOX 655303

description

The TL430 is a 3-terminal adjustable shunt

regulator,

featuring

excellent

temperature

stability, wide operating current range, and low

output noise. The output voltage can be set by two

external resistors to any desired value between

3 V and 30 V. The TL430 can replace zener diodes

in

many

applications,

providing

improved

performance.

The TL430C is characterized for operation from

0

°C to 70°C.

symbol

REF

CATHODE

ANODE

AVAILABLE OPTIONS

PACKAGED DEVICES

CHIP FORM

TA

PLASTIC

(LP)

CHIP FORM

(Y)

0

°C to 70°C

TL430CLP

TL430Y

The LP package is available taped and reeled. Add R suffix to device

type (e.g., TL430CLPR). Chip forms are tested at 25

°C.

Copyright

© 1999, Texas Instruments Incorporated

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

LP PACKAGE

(TOP VIEW)

REF

ANODE

CATHODE
