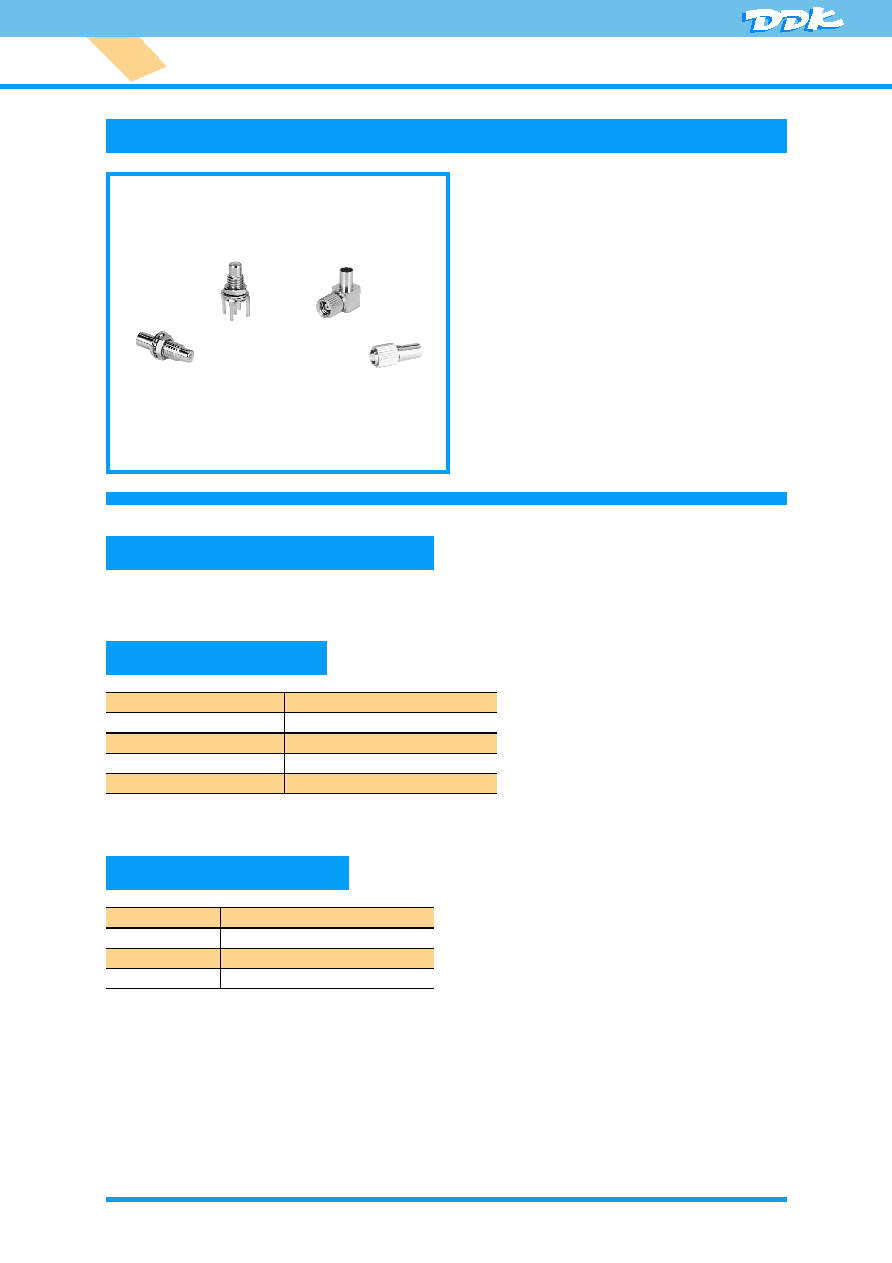

27DS Series

●

27DS series are connectors produced based on

SMC type (Sub-miniature type C) specified in

MIL-C-39012.

●

27DS is super small size coaxial cable connec-

tors for 50 Ω group corresponding to minimiza-

tion of communication equipment.

●

Screw coupling method is applied to connection

method and crimping method is applied to cable

fixing.

●

Recommendation coupling torque : 24.5 ～35.3

N･cm

MIL-C-39012

Specifications depends on each connector although these are basic specifications.

Please ask us for the cable assemblies to assure its performance.

SMC Type Connectors

CONFORMING STANDARD

SPECIFICATION

Characteristic Impedance

50Ω

Dielectric withstanding voltage

1000V AC (rms) for 1 minute

Insulation resistance

1000MΩmin. at 500V DC

Contact resistance

6mΩ max.

VSWR

1.2max. at DC～1GHz

MATERIAL/FINISH

Shell (Body)

Copper alloy/Gold or Nickel plating

Contact (male)

Copper alloy/Gold plating

Contact (female)

Copper alloy/Gold plating

Insulators

PTFE
