FEATURES

•

Operates on international licensed and licence free radio telemetry bands.

•

Range:

X8100 – 433 MHz

2km in free space, 0.2 - 0.5km in buildings

X8100 – 458 MHz

20km in free space, 1 – 3km in buildings

X8100 – 868 MHz

10km in free space, 0.7 – 2km in buildings

X8100 – GSM

World Wide GSM Mobile Phone Network

X8100 – LLM

Leased Telephone Line

§

Type approved to ETSI 300-220, ETSI 300-113, ETSI 300-683,

MPT1328, MPT1329, MPT1340, MPT1344

§

8 to 128 Digital Inputs

§

8 to 128 Digital Outputs, Voltage Free Contacts 30Vdc @ 1A

§

2 to 128 Analogue Inputs 0-20mA (Standard), 0-10V, 0-500mV.

(factory set option)

§

2 to 128 Analogue Outputs 0-20mA (Standard), 0-10V, 0-

500mV. (factory set option)

§

1 Serial Output Port for SCADA System

§

DIN Rail Mounted

§

Powered from 24Vdc (Standard), 110Vac, 240Vac.

Size:

X8100 Control Module 160mm by 105mm by 60mm

X8100 I/O Modules

52mm by 105mm by 60mm

DESCRIPTION

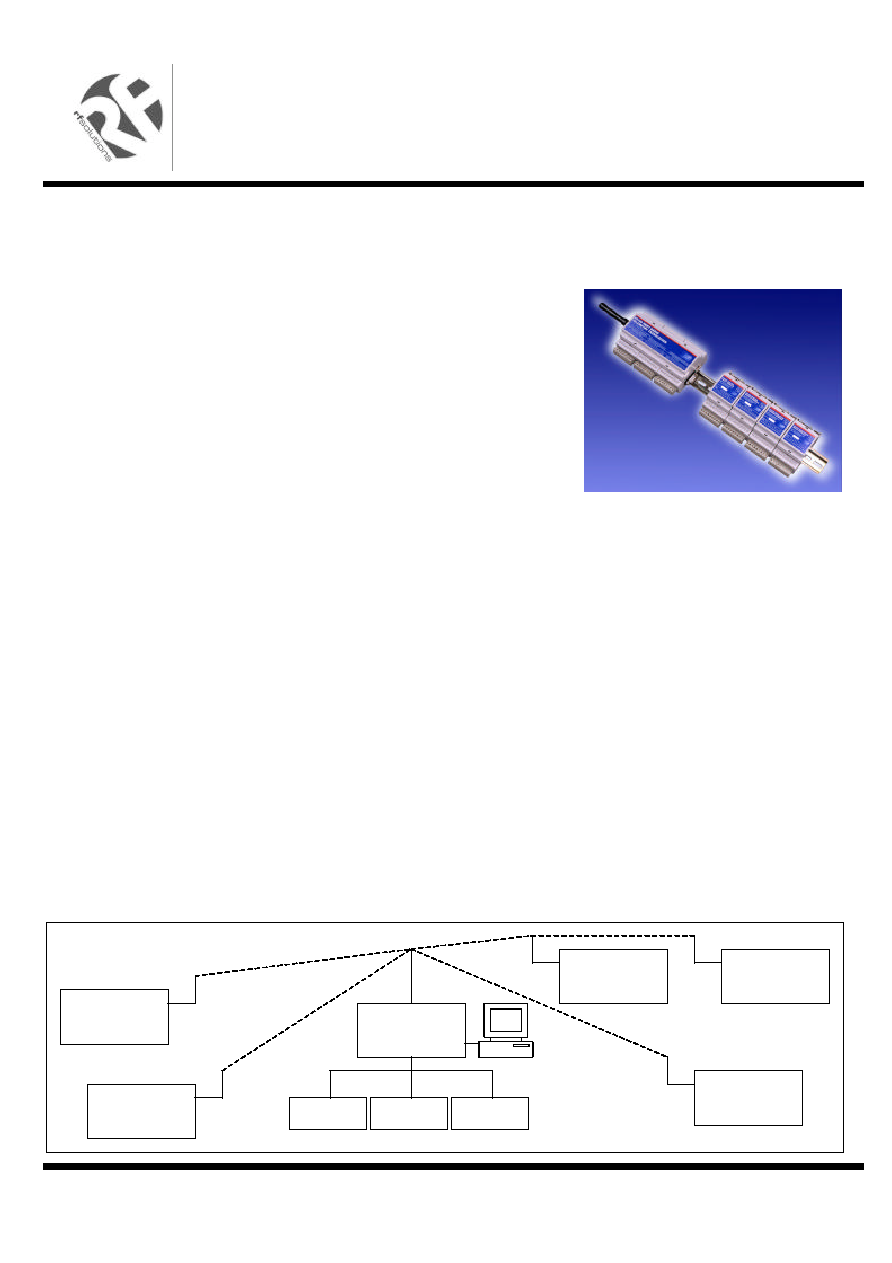

The XNET Radio Data Network offers a cost effective and flexible means of transmitting analogue, digital, and

pulse counter data over large areas without the need for cables. A programmable modular approach allows the

user to configure the exact combination of IO required for a specific application from standard XNET modules.

A system can be as simple as a one-way link or as complex as a multi-drop network.

An XNET Control Module consists of:

1 Synthesised Radio Transceiver

1 RS232 Serial Gateway Port

8 Opto Isolated Inputs

1 RS232 Programming Port

8 Voltage Free Relay Outputs 1A, 30Vdc

1 X-Bus Expansion Module Port

2 Analogue Inputs ,12bit, 0 to 20mA or 0 to 5V

1 12V DC Power Supply for Transducers

2 Analogue Outputs, 12 bit, 0 to 20mA or 0 to 5V

Additional analogue and digital Input/Output modules can be connected to the Control Module by means of a

single 10-way ribbon cable. The modules can be located locally or up to 50 metres away.

X8100 Analogue,

Digital & Serial

Data

X8100 Analogue,

Digital & Serial

Data

X8100 Analogue,

Digital & Serial

Data

X8100

Repeater

X8100 Analogue,

Digital & Serial

Data

X8100 Analogue,

Digital & Serial

Data

Expanded I/O

Expanded I/O

Expanded I/O

SCADA

SYSTEM
