CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

L-19

E-Mail: sales@glenair.com

A

B

C

D

E

F

G

H

J

K

L

M

N

P

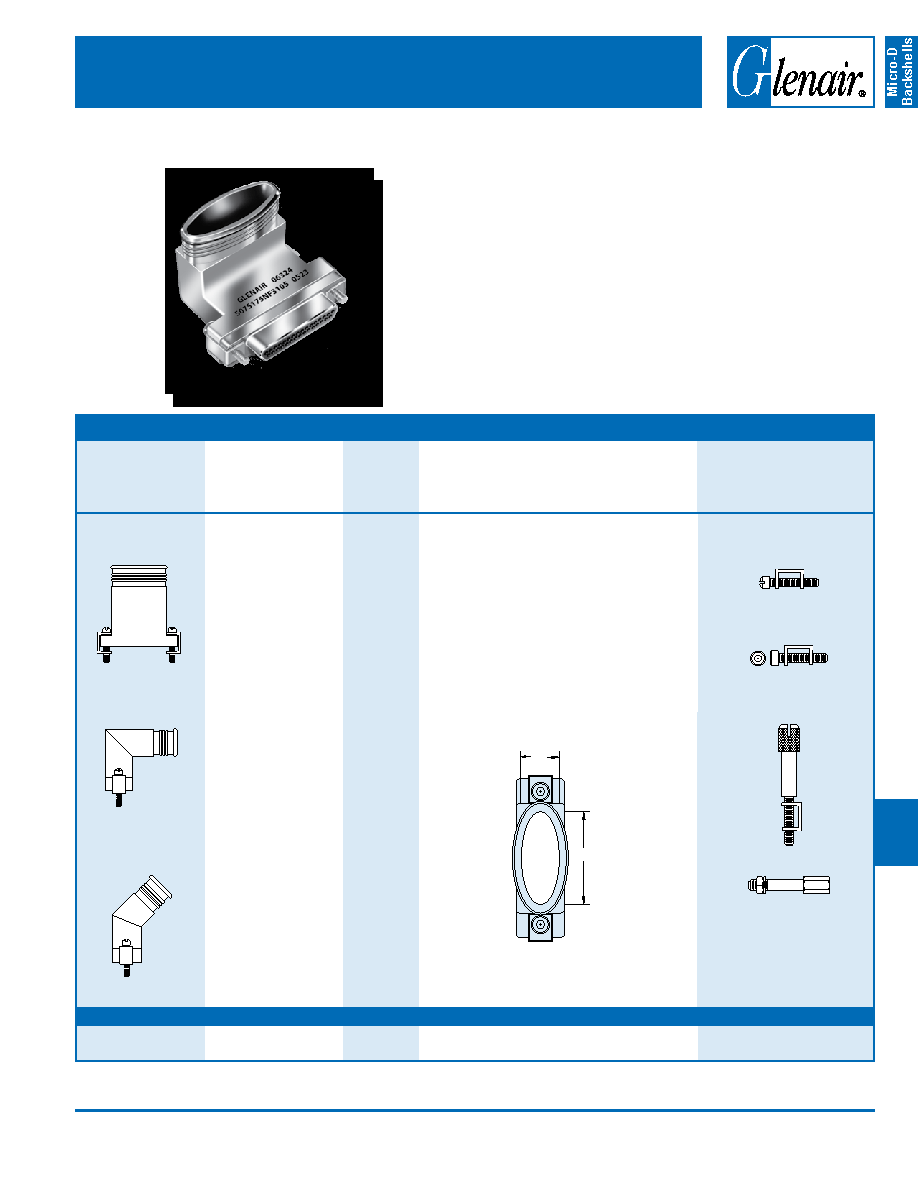

HOW TO ORDER 507-175 EMI BACKSHELLS

Series

Shell Finish

Connector

Size

Cable Entry Code

Hardware Option

Top Entry

507T175

Side Entry

507S175

45° Entry

507E175

E – Chem Film

(Alodyne)

J – Cadmium, Yellow

Chromate

M – Electroless

Nickel

NF – Cadmium,

Olive Drab

Z2 – Gold

09

15

21

25

31

37

51

51-2

67

69

100

Omit (Leave Blank)

Fillister Head Jackscrew

H – Hex Head Jackscrew

E – Extended Jackscrew

F – Jackpost, Female

Sample Part Number

507E175

M

25

04

D

E

Micro-D Backshells

EMI, Banding, Elliptical, One Piece 507-175

17-7PH Stainless Steel Clips attach the backshell to the

connector. These backshells accept standard and

micro BAND-IT® shield termination straps.

Straight, 45° and Right Angle elliptical backshell

provides plenty of working room for complicated wiring

situations.

Rugged One-Piece Aluminum Shell with stainless steel

hardware, available in standard nickel plating, or choose

optional finishes.

Size

D

E

Available

on Shell

Size

In.

± .010

mm.

± 0.25

In.

± .010

mm.

± 0.25

01

.344

8.74

.290

7.37

09 Thru 100

02

.494 12.55

.290

7.37

15 Thru 100

03

.644 16.36

.290

7.37

21 Thru 100

04

.744 18.90

.304

7.72

25 Thru 100

05

.894 21.34

.304

7.72

31 Thru 100

06

.994 25.25

.304

7.72

37 Thru 100

07

1.044 26.52

.304

7.72

37 and 100

08

1.024 26.01

.384

9.75

100
