SE2600S

2.4 GHz WLAN Switch/LNA Front End

Preliminary

Applications

IEEE802.11b DSSS WLAN

IEEE802.11g,n OFDM WLAN

Embedded applications

Features

Integrates SP3T Switch and LNA with by-pass

mode

12 dB gain,

1.8 dB NF

0.5 dB Bluetooth path loss

1.07x1.05x 0.38mm, 250 um pitch, SnAg solder

bump

Lead free, Halogen free and RoHS compliant

Ordering Information

Part No.

Package

Remark

SE2600S

11 pin CSP

Samples

SE2600S-R

11 pin CSP

Tape and Reel

SE2600S-EK1

N/A

Evaluation kit

Product Description

The SE2600S is a single chip integrated front-end

module (FEM) with a Bluetooth port to complement

WLAN chipsets with integrated Power Amplifier. The

FEM integrates SP3T Switch and Low Noise Amplifier

with bypass mode in an ultra compact package. It is

capable of switching between WLAN RX, WLAN TX

and Bluetooth™

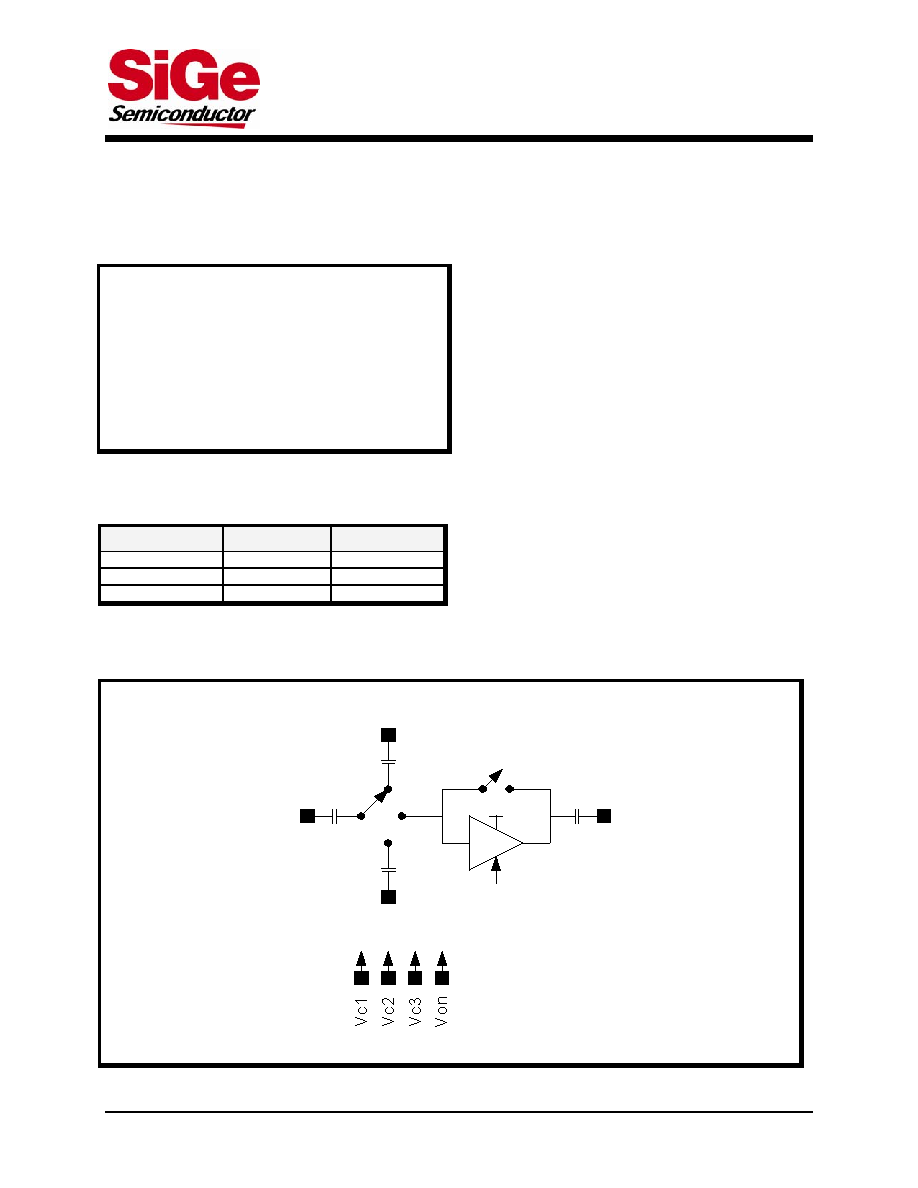

Functional Block Diagram

RFC

BT

TX

RX

1

2

3

4

123

4

Vdd

Figure 1: Functional Block Diagram

DST-00292 Rev 1.4

October-09-2009

1 of 12
