SE7262L

2.5-2.7 GHz WiMAX Power Amplifier

Applications

CPE and Mobile Computing

Features

25.5 dBm output power, with -28 dB EVM at 3.3V

High efficiency power amplifier with PAE>20%

37 dB gain

Integrated Step Attenuator

Integrated output power detector

All RF ports matched for 50 Ω operation

Supply voltage: 2.9 V – 4.2 V

Lead free, Halogen free, ROHS compliant

package (4 x 4 x 0.9 mm), MSL 3

Ordering Information

Part No.

Package

Remark

SE7262L

16 pin QFN

Samples

SE7262L-R

16 pin QFN

Tape and Reel

SE7262L-EK1

N/A

Evaluation kit

Product Description

The SE7262L WiMAX Power Amplifier is a high

performance device offering high output power with

high linearity and exceptional efficiency. Designed for

portable or mobile applications in the 2.5-2.7 GHz

band, it supports the IEEE 802.16d and IEEE 802.16e

wireless standards.

.

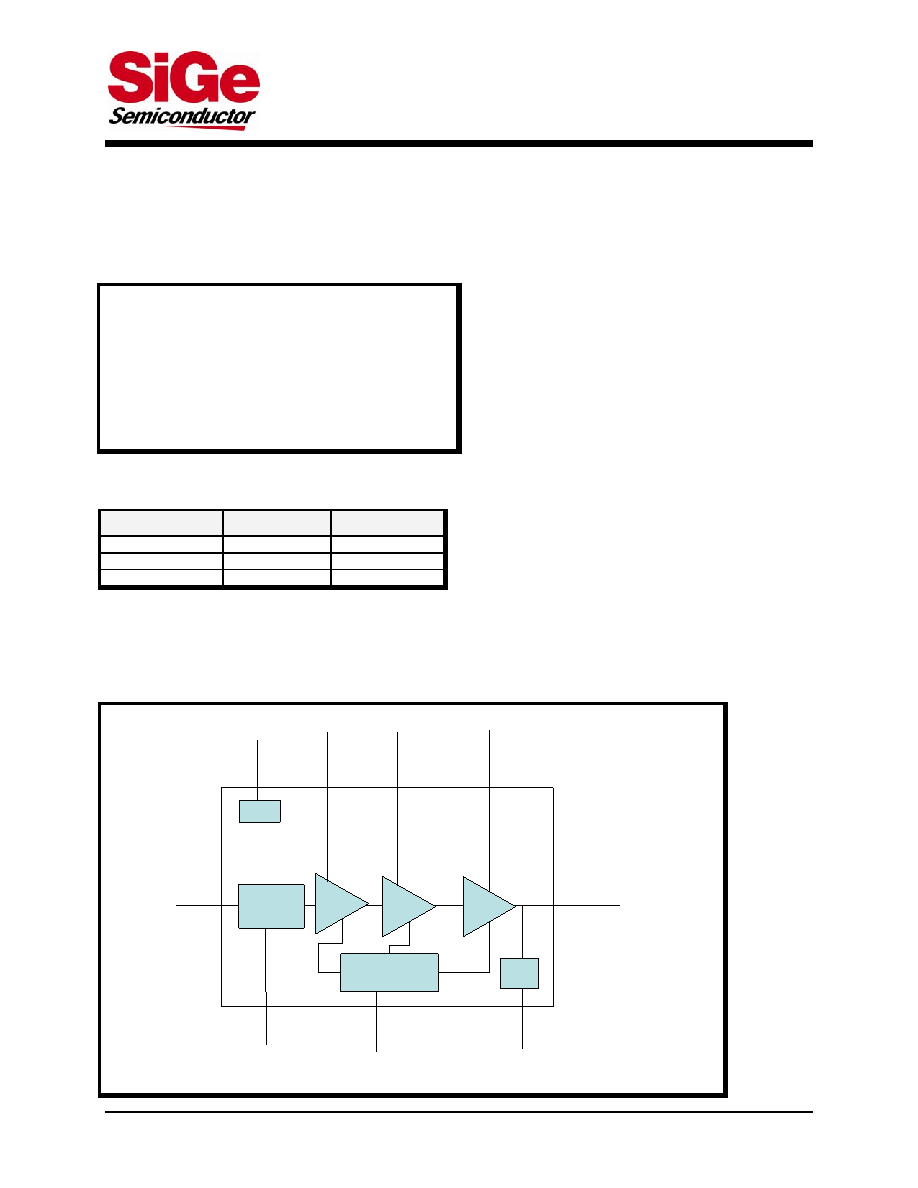

Functional Block Diagram

Figure 1: Functional Block Diagram

Bias Control

Power

Det

RF in

RF out

Step

Attn

Temp

Sensor

TEMP

Bias Control

Power

Det

RF in

RF out

Step

Attn

Temp

Sensor

TEMP

DST-00155 Rev 1.8 May-26-2009

1 of 10
