RST15-A2X-R10-R10JZB datasheet(3/3 Pages) AAC

部件名	RST15-A2X-R10-R10JZB

功能描述	HIGH POWER RESISTOR - Non Inductive Chassis Mount, Screw Terminal

PDF	3 Pages

Scroll/Zoom	100%

制造商	AAC [American Accurate Components, Inc.]

网页	http://www.aacix.com

标志

3 / 3 page

American Accurate Components, Inc.

HIGH POWER RESISTOR – Non Inductive Chassis Mount, Screw Terminal

The content of this specification may change without notification 02/19/08

188 Technology Drive, Unit H, Irvine, CA 92618

TEL: 949-453-9888

FAX: 949-453-8889

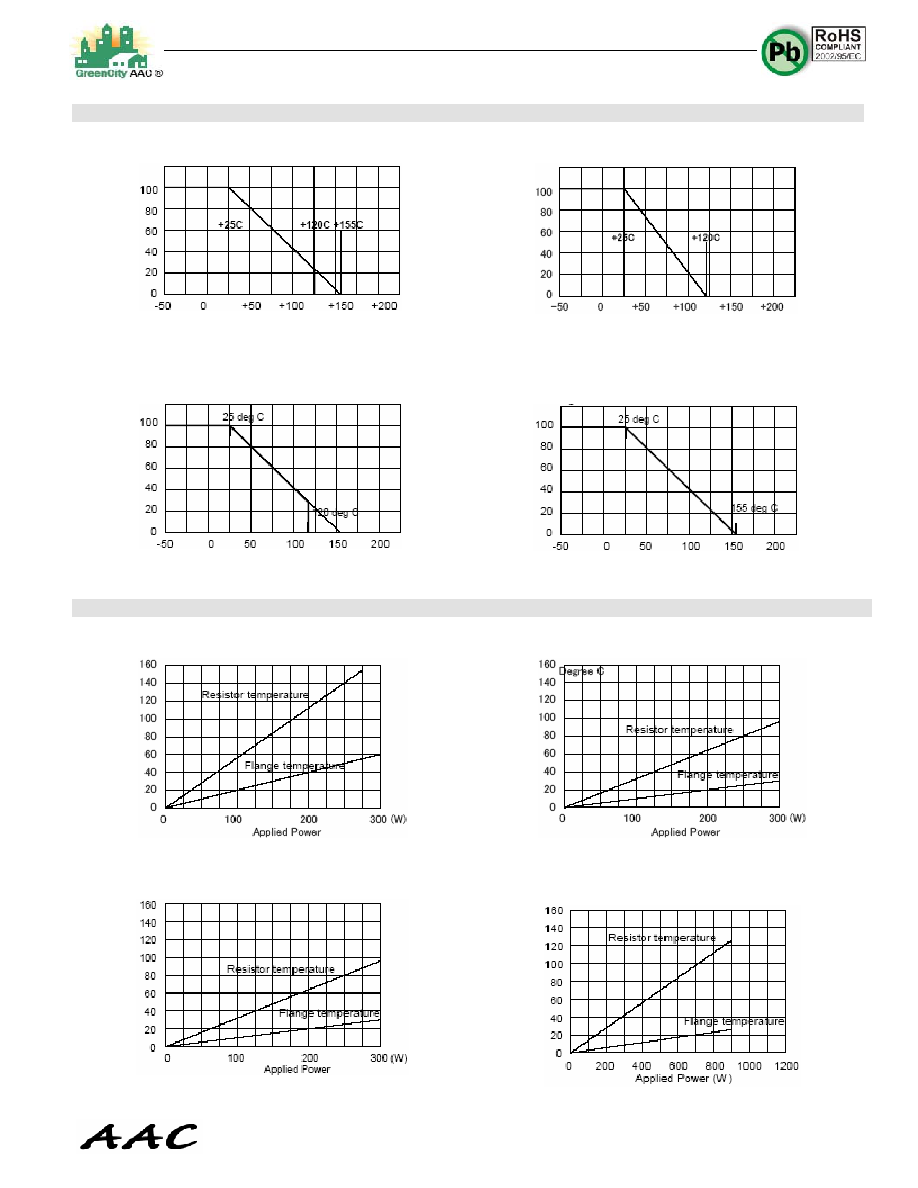

DERATING CURVE

RST15-A4X, A4Y

RST20-A2X, A2Y, A4Z

RST25-A4X

RST30-A4Z

% Rated Power

Flange Temperature (°C)

% Rated Power

Flange Temperature (°C)

RST15-B4X, B4Y

RST20-B2X, B2Y, B4Z

RST25- B4X, B4Y

RST30- B2X, B2Y, B4Z

RST55-B4X, B4Y

RST60-A4X, B2X, B2Y, B4Z

% Rated Power

Flange Temperature (°C)

% Rated Power

Flange Temperature (°C)

TEMPERATURE RISE

RST20-A2X, A2Y, A4Z with 0.2K/W heat sink

RST30-A4Z with 0.1K/W heat sink

Temperature Rise (°C)

RST30- B2X, B2Y, B4Z with 0.1° C/W heat sink

RST60-AX4, B2X, B2Y, B4Z

Temperature Rise (°C)
