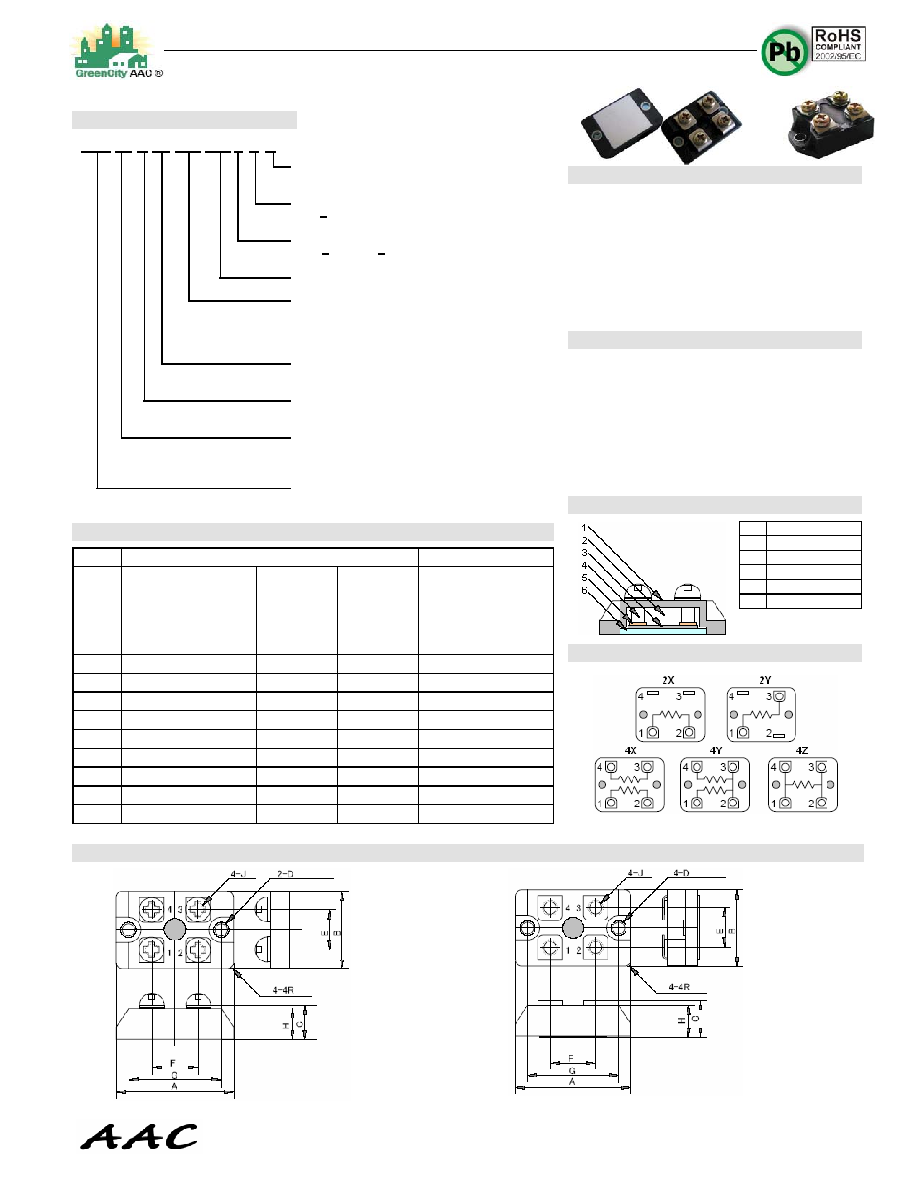

American Accurate Components, Inc.

HIGH POWER RESISTOR – Non Inductive Chassis Mount, Screw Terminal

The content of this specification may change without notification 02/19/08

188 Technology Drive, Unit H, Irvine, CA 92618

TEL: 949-453-9888

FAX: 949-453-8889

1

Custom solutions are available.

HOW TO ORDER

RST 25-A 4X-100-100 J Y B

Packaging

B = bulk

TCR

(ppm/°C)

Z = +100

Tolerance

J = +5% K= +10%

Resistance 2

(leave blank for 1 resistor)

Resistance 1

R10 = 0.1 ohm

1R0 = 1.0 ohm

100 = 10 ohm

101 = 100 ohm

102 = 1.0K ohm

Screw Terminals/Circuit

2X, 2Y, 4X, 4Y, 4Z

Package Shape

(refer to schematic drawing)

A or B

Rated Power

15 = 150 W

25 = 250 W

60 = 600W

20 = 200 W

30 = 300 W

90 = 600W (S)

Series

High Power Resistor, Non-Inductive, Screw Terminals

DIMENSIONS (mm)

Shape

A

B

Series

RST20-A2X, A2Y, A4Z

RST15-A4X, A4Y

RST25-A4X

RST30-A4Z

RST60-A4X

RST90-A4Z

RST20-B2X, B2Y, B4Z

RST30-B2X, B2Y, B4Z

RST60-B2X, B2Y, B4Z

RST15-B4X, B4Y

RST25-B4X, B4Y

RST55-B4X, B4Y

A

38.0

± 0.2

38.0

± 0.2

38.0

± 0.2

38.0

± 0.2

B

25.0

± 0.2

25.0

± 0.2

25.0

± 0.2

25.0

± 0.2

C

13.0

± 0.5

15.0

± 0.5

15.0

± 0.5

11.8

± 0.5

D

4.2

± 0.1

4.2

± 0.1

4.2

± 0.1

4.2

± 0.1

E

13.0

± 0.3

13.0

± 0.3

13.0

± 0.3

13.0

± 0.3

F

15.0

± 0.4

15.0

± 0.4

15.0

± 0.4

15.0

± 0.4

G

30.0

± 0.1

30.0

± 0.1

30.0

± 0.1

30.0

± 0.1

H

10.0

± 0.2

12.0

± 0.2

12.0

± 0.2

10.0

± 0.2

J

M4, 10mm

SCHEMATIC

Body Shape A

Body Shape B

FEATURES

TO227 package in power ratings of 150W,

250W, 300W, 600W, and 900W

M4 Screw terminals

Available in 1 element or 2 elements resistance

Very low series inductance

Higher density packaging for vibration proof

performance and perfect heat dissipation

Resistance tolerance of 5% and 10%

APPLICATIONS

For attaching to air-cooled heat sink or water

cooling applications

Snubber resistors for power supplies

Gate resistors

Pulse generators

High frequency amplifiers

Dumping resistance for theater audio equipment

on dividing network for loud speaker systems

CONSTRUCTION

1

Case

2

Filling

3

Resistor

4

Terminal

5

ALO. ALN

6

Ni Plated Cu

Depth of terminal screw M4 10mm, screws are excluded

CIRCUIT LAYOUT
