TAS5711PHPR 数据表(PDF) 21 Page - Texas Instruments

Click here to check the latest version.
部件名 TAS5711PHPR
功能描述  20-W DIGITAL AUDIO-POWER AMPLIFIER WITH EQ, DRC, AND 2.1 MODE
PDF  64 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  TI [Texas Instruments]
网页  http://www.ti.com
标志 TI - Texas Instruments

TAS5711PHPR 数据表(HTML) 21 Page - Texas Instruments

Back Button TAS5711PHPR Datasheet HTML 17Page - Texas Instruments TAS5711PHPR Datasheet HTML 18Page - Texas Instruments TAS5711PHPR Datasheet HTML 19Page - Texas Instruments TAS5711PHPR Datasheet HTML 20Page - Texas Instruments TAS5711PHPR Datasheet HTML 21Page - Texas Instruments TAS5711PHPR Datasheet HTML 22Page - Texas Instruments TAS5711PHPR Datasheet HTML 23Page - Texas Instruments TAS5711PHPR Datasheet HTML 24Page - Texas Instruments TAS5711PHPR Datasheet HTML 25Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 64 page
background image

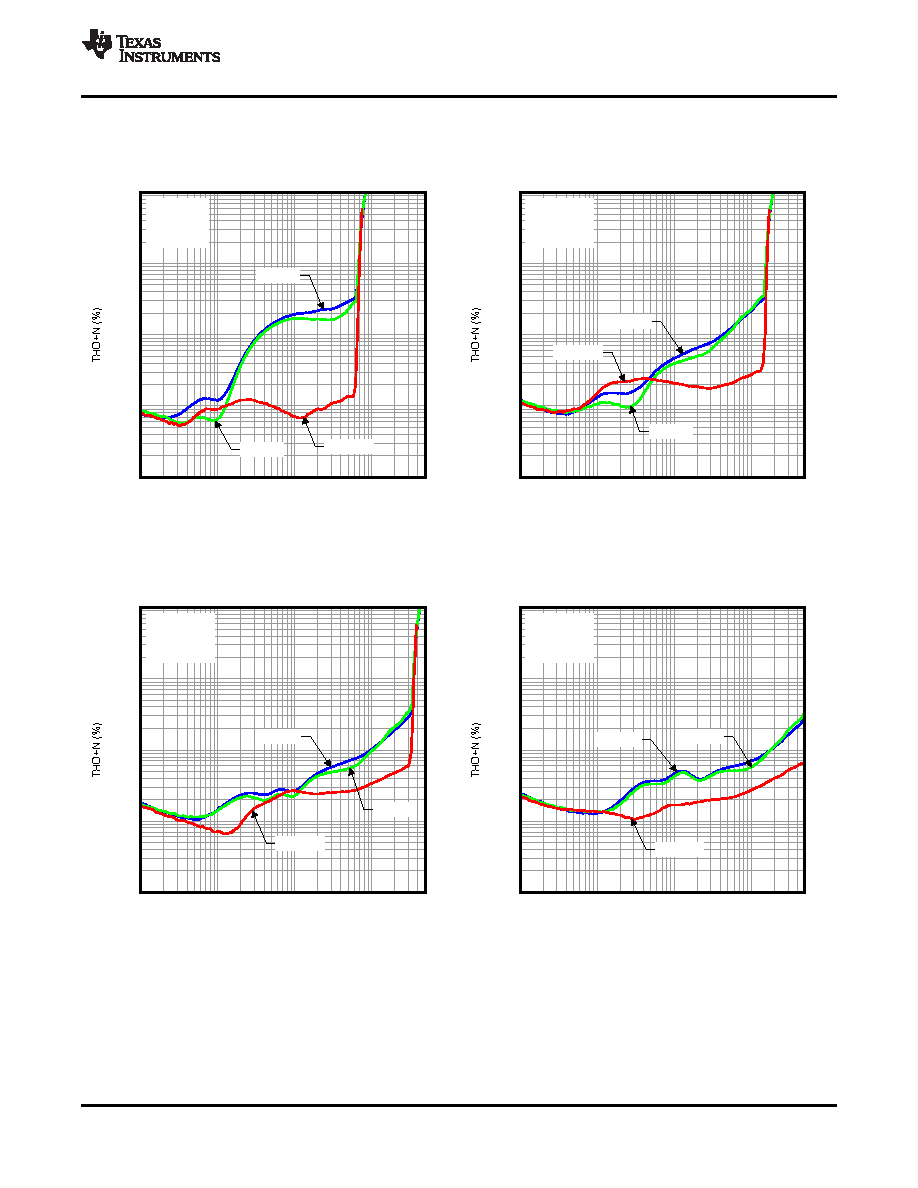

Output Power (W)
TOTAL HARMONIC DISTORTION + NOISE
vs
OUTPUT POWER
0.01
0.1
1
10
50
0.001
0.01
0.1
1
10
f = 20Hz
f = 1kHz
f = 10kHz
G025
PVDD = 8V
RL = 4Ω
TA = 25°C
Output Power (W)
TOTAL HARMONIC DISTORTION + NOISE
vs
OUTPUT POWER
0.01
0.1
1
10
50
0.001
0.01
0.1
1
10
f = 20Hz
f = 1kHz
f = 10kHz
G026
PVDD = 12V
RL = 4Ω
TA = 25°C
Output Power (W)
TOTAL HARMONIC DISTORTION + NOISE
vs
OUTPUT POWER
0.01
0.1
1
10
50
0.001
0.01
0.1
1
10
f = 20Hz
f = 1kHz
f = 10kHz
G027
PVDD = 18V
RL = 4Ω
TA = 25°C
Output Power (W)
TOTAL HARMONIC DISTORTION + NOISE
vs
OUTPUT POWER
0.01
0.1
1
10
50
0.001
0.01
0.1
1
10
f = 20Hz
f = 1kHz
f = 10kHz
G028
PVDD = 24V
RL = 4Ω
TA = 25°C
TAS5711
www.ti.com
SLOS600 – DECEMBER 2009
TYPICAL CHARACTERISTICS, PBTL CONFIGURATION (continued)
Figure 30.
Figure 31.
Figure 32.
Figure 33.
Copyright © 2009, Texas Instruments Incorporated
Submit Documentation Feedback
21
Product Folder Link(s): TAS5711
