Illuminated Tactile Switches

B3W-9

Accessories - Text Combination Films for B3W-9

Model Number Structure

1. Color

R:

Red

2. Color

B:

Blue

G:

Green

3. Color and text combination

F1:

Red

OFF

Blue or green

ON

F4:

Red

Blue or green

F5:

Red

Blue or green

Note: 1. Three ‘text combinations’ are available.

2. Films can also be customized with other text for 50 sheets (1,250 films) per lot. Delivery time is approximately five weeks.

(Ask your OMRON representative for details.)

Note: Minimum Order = 25 films/sheet (B3W-9 Films are sold in units of 25 films. Orders must be made in multiples of 25, the quantity per sheet.)

Recommended B3W-9 Switches

Note: Use the following 2 LED versions of the B3W-9’s with the above mentioned films for best results

Note: Text Combination Films are sold without the Switches. Order one of the above models of B3W-9 Illuminated Tactile Switches separately.

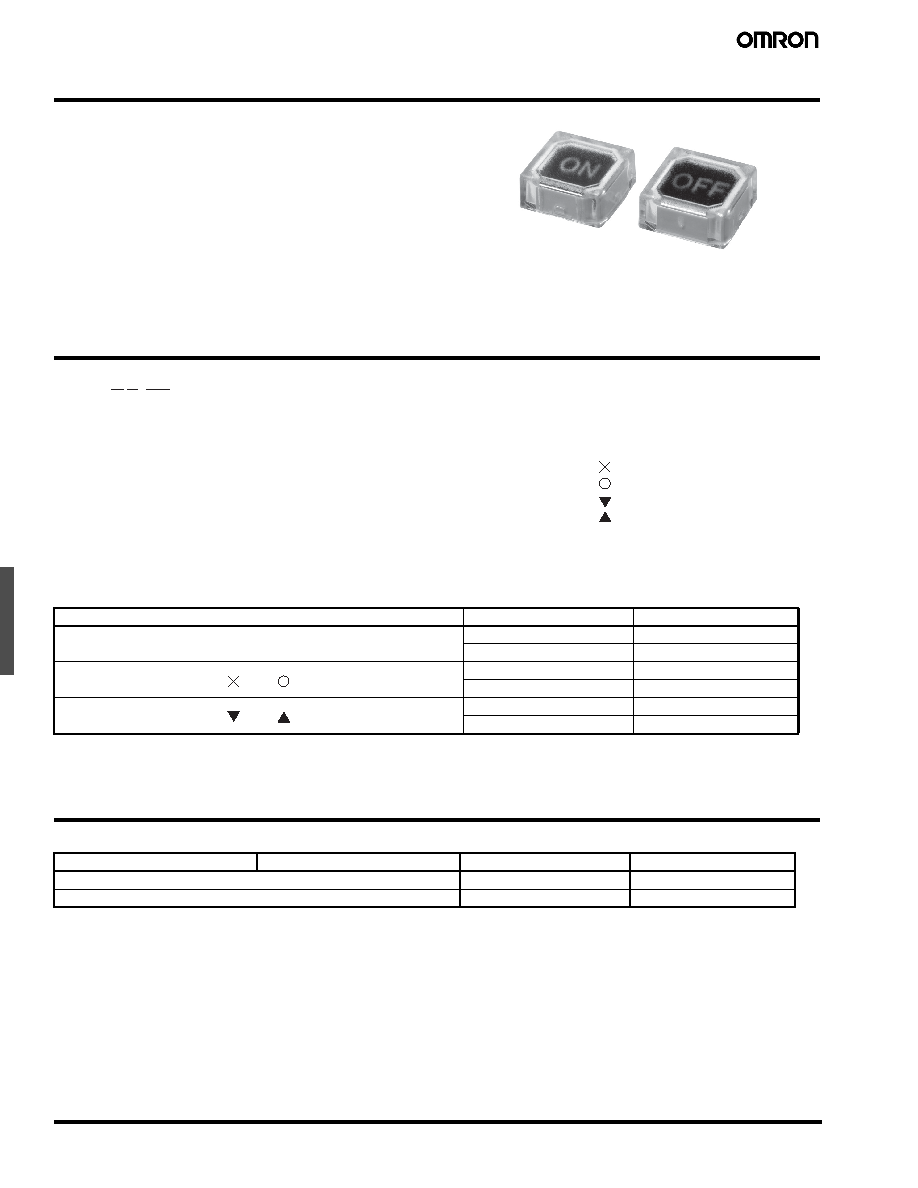

Text Combination Films for B3W-9

Illuminated Tactile Switches

• Display two different labels in combination with a single

2-LED B3W-9 Switch.

• Color combinations: Red/Green or Red/Blue

12

3

B3W-9

@@-F@

Text Combinations

LED colors

Model

"OFF" and "ON"

Red/Blue

B3W-9RB-F1

Red/Green

B3W-9RG-F1

"

" and "

"

Red/Blue

B3W-9RB-F4

Red/Green

B3W-9RG-F4

"

" and "

"

Red/Blue

B3W-9RB-F5

Red/Green

B3W-9RG-F5

Operating force

2-LED Switches

Red/Blue

Red/Bright green

Standard-force Switches

B3W-9000-RB2C

B3W-9000-RHG2C

High-force Switches

B3W-9002-RB2C

B3W-9002-RHG2C
