Solid State Pressure Sensors

D8M

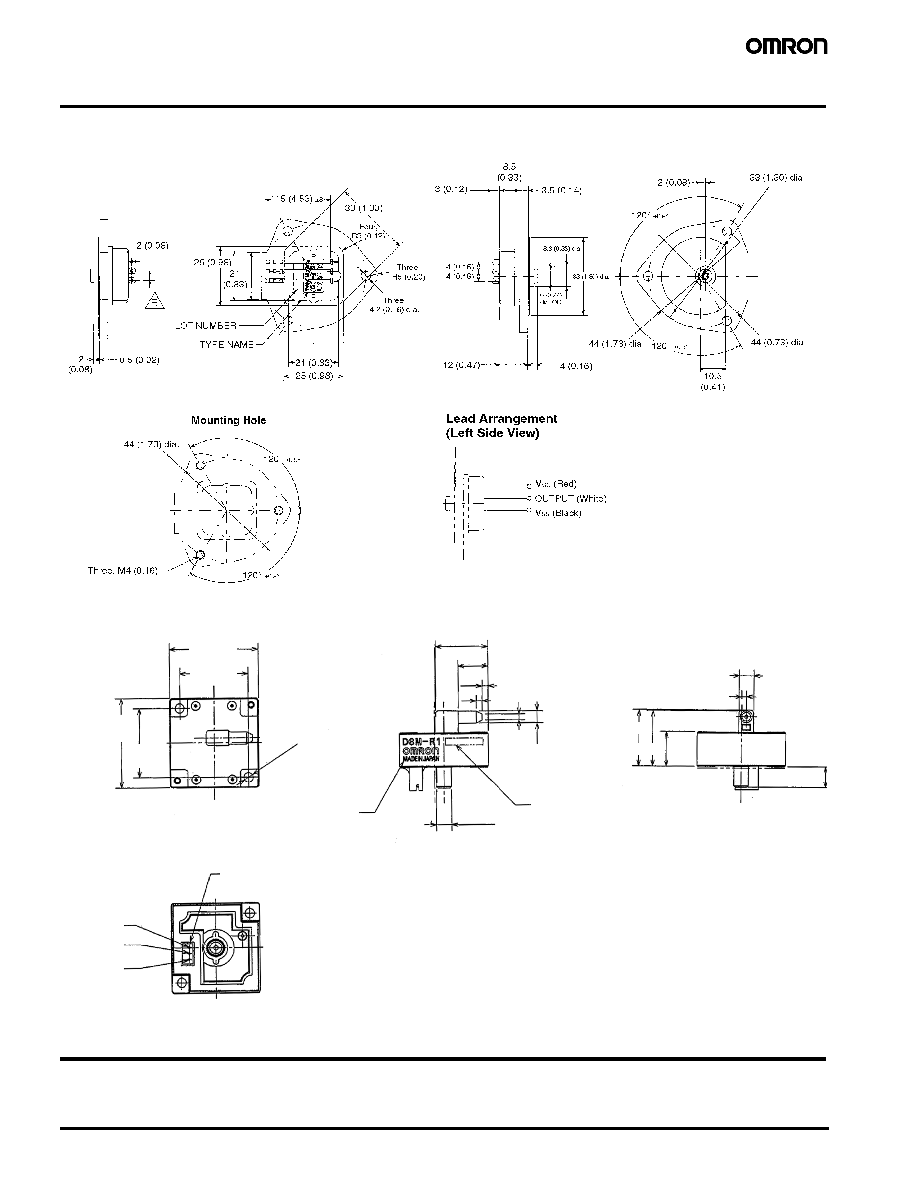

Dimensions

Unit: mm (inch)

■ D8M-D82

■ D8M-R1

Precautions

Be sure to abide by the following precautions for the safe operation of

the Sensor.

■ Mounting

For proper operation, mount the sensor within

±10 degrees of level.

30 (1.18)

23 (0.91)

(1.18)

(0.91)

Two, 3.2 (0.13) dia.

TYPE NAME

17.7 (0.70)

10.1 (0.40)

5 (0.20) dia.

2 (0.08)

2 (0.08) dia.

4 (0.16) OD

LOT NUMBER

5 (0.20)

1.6 (0.06)

7 (0.28)

18.8 (0.74)

18.6 (0.73)

11.6

(0.46)

CONNECTOR

VCC (Pin 1)

FOUT (Pin 2)

GND (Pin 3)

2 (0.08)
