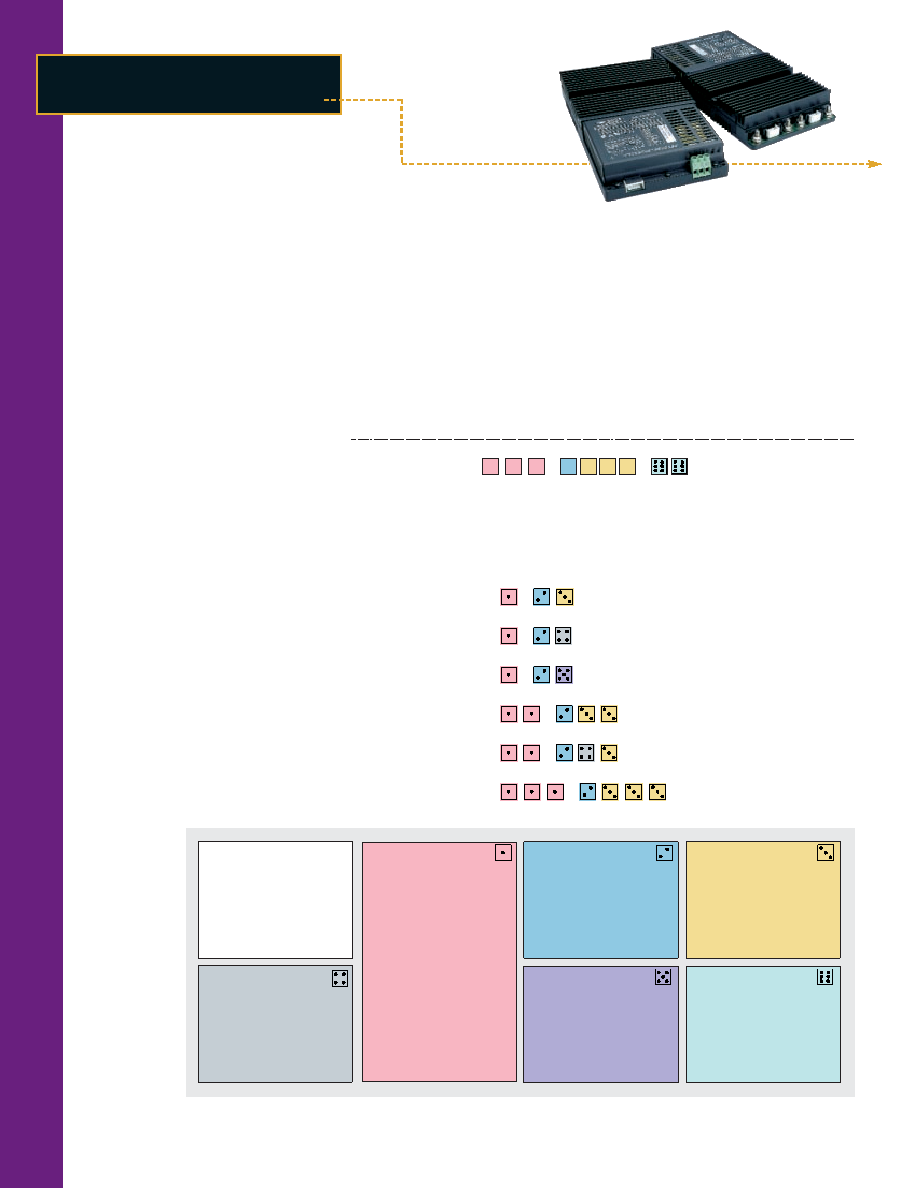

1 / 4 page

Input Characteristics

90-132/180-264Vac

U = Autoranging

Output Power/Current

Vout ≥ 5V

Vout < 5V

S = 300W

S = 60A

P = 450W

P = 90A

M = 600W

M = 120A

Product Grade

E = 0°C to +85°C Case

C = 0°C to +85°C Case

I = -30°C to +85°C Case

Output Power/Current

Vout ≥ 5V

Vout < 5V

Y = 50W

Y = 10A

X = 75W

X = 15A

W = 100W

W = 20A

V = 150W

V = 30A

U = 200W

U = 40A

Product Highlights

If you’re looking for the convenience

of a complete, low profile, agency-

approved switching power supply,

look no further. The FlatPAC combines

Vicor’s workhorse VI-200 family of

DC-DC converters with a modular

package and front end subassembly to

provide from 50 to 600W of output

power from one to three outputs.

A flat plate heatsink for use in

conduction cooled applications may be

specified as an alternate to the standard

finned version by adding “CC” to the

end of the model number.

Vicor’s FlatPAC is also available with

a current controlled output using

BatMod converter modules of 12, 24,

or 48Vdc outputs. This option is

specified by appending “BM” or “BC”

(for conduction cooled versions) to the

end of the FlatPAC model number.

The FlatPAC’s contemporary design

allows us to configure your order

quickly and provide rapid turnaround

on standard models. It is truly a

complete power solution, enabling

you to spend more time designing your

system and less time worrying about

how to power it.

Features

➤ Microcontroller architecture

➤ Inputs: 115/230Vac autoranging

➤ Meets FCC Part 15, EN55022, Class B

conducted emissions

➤ 80-90% efficiency

➤ Any output: 1 to 95Vdc

➤ Module enable/disable (except LU series)

➤ UL, CSA, TÜV, VDE, BABT, CE marked

➤ Remote sense and current limit

➤ BUS OK and AC OK (except LU series)

➤ 40mS ride-through time

➤ OVP and thermal shutdown

➤ 1 output; up to 200W

➤ 1 or 2 outputs; up to 400W

➤ 1, 2, or 3 outputs; up to 600W

FlatPAC

™

50 to 600W

Autoranging

AC-DC Switchers

FlatPAC Configuration Chart

Typical Model: V I - R U

–

Input: 115/230Vac; Output 1: 5Vdc at 200W

Output 2: 12Vdc at 200W

Output 3: 12Vdc at 200W

# of

Total Power

Part No.

Converters

Dimensions

50-200W

VI-LU

–

1

9.25" x 2.5" x 1.37"

(234,8 x 63,5 x 34,8mm)

200-400W

VI-MU

–

2

9.25" x 4.9" x 1.37"

(234,8 x 124,5 x 34,8mm)

300-600W

VI-NU

–

3

9.25" x 7.3" x 1.37"

(234,8 x 185,4 x 34,8mm)

100-400W

VI-PU

–

2

9.25" x 4.9" x 1.37"

(234,8 x 124,5 x 34,8mm)

150-600W

VI-QU

–

3

9.25" x 7.3" x 1.37"

(234,8 x 185,4 x 34,8mm)

150-600W

VI-RU

–

3

9.25" x 7.3" x 1.37"

(234,8 x 185,4 x 34,8mm)

U

E

1

0

Single

Outputs:

Dual

Outputs:

Triple

Outputs:

Options

BC = BatMod/Conduction

Cooled

BM= BatMod

CC = Conduction Cooled

Output Voltage

Z 2V

M 10V

K 40V

Y 3.3V

1 12V

4 48V

0 5V

P 13.8V H 52V

X 5.2V

2 15V

F 72V

W 5.5V

N 18.5V D 85V

V 5.8V

3 24V

B 95V

T 6.5V

L 28V

R 7.5V

J 36V

Output Power

Vout ≥ 5V

Vout < 5V

W = 100W

W = 20A

V = 150W

V = 30A

U = 200W

U = 40A

S = 300W

S = 60A

Q = 400W

Q = 80A

FlatPAC 10/02

1 of 4
