ADP151ACBZ-2.75-R7 datasheet(7/24 Pages) AD

7 / 24 page

ADP151

Rev. 0 | Page 7 of 24

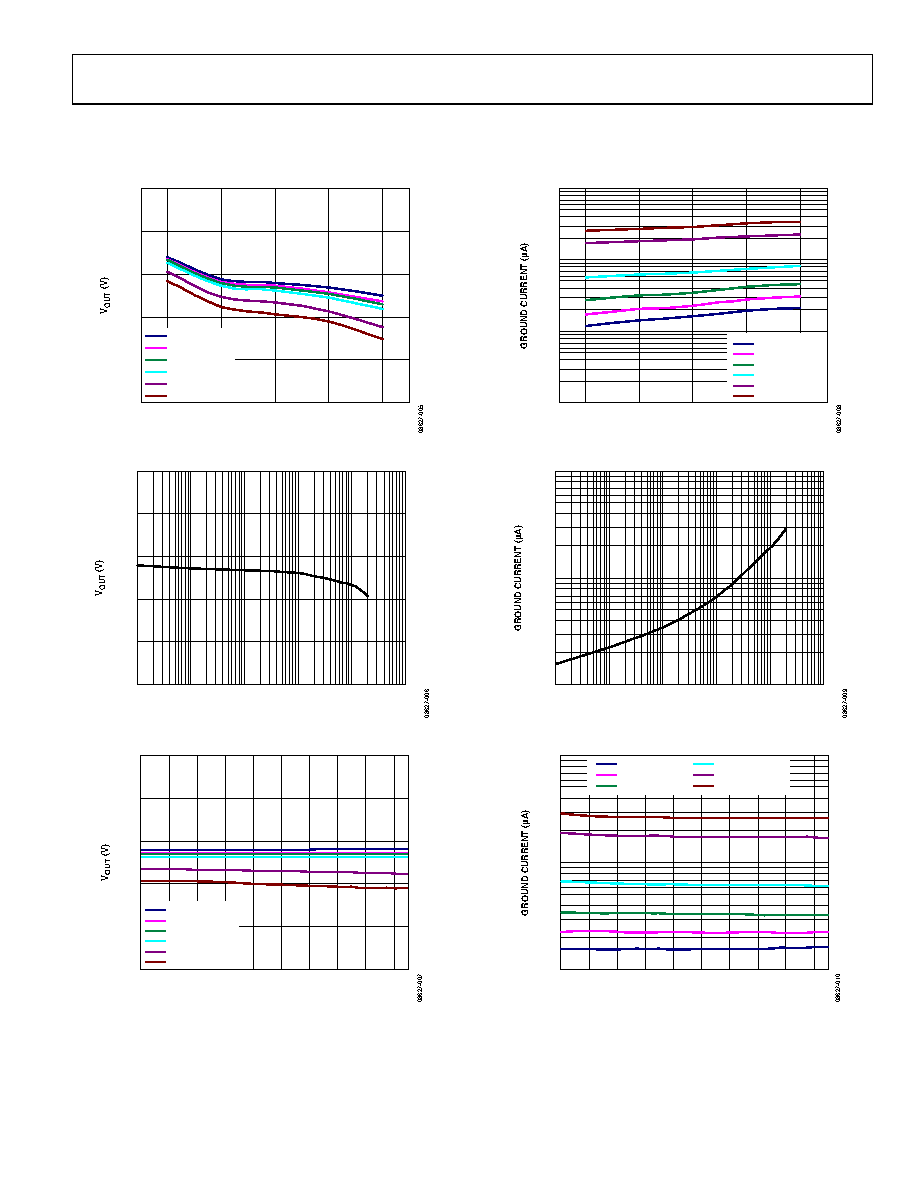

TYPICAL PERFORMANCE CHARACTERISTICS

VIN = 5 V, VOUT = 3.3 V, IOUT = 1 mA, CIN = COUT = 1 µF, TA = 25°C, unless otherwise noted.

3.35

3.25

3.27

3.29

3.31

3.33

–40

–5

125

JUNCTION TEMPERATURE (°C)

LOAD = 10µA

LOAD = 100µA

LOAD = 1mA

LOAD = 10mA

LOAD = 100mA

LOAD = 200mA

Figure 5. Output Voltage vs. Junction Temperature

3.35

3.25

3.27

3.29

3.31

3.33

0.01

1000

100

0.1

ILOAD (mA)

Figure 6. Output Voltage vs. Load Current

3.35

3.25

3.27

3.29

3.31

3.33

3.6

3.8

4.0

4.2

4.4

4.6

4.8

5.0

5.2

5.4

VIN (V)

LOAD = 10µA

LOAD = 100µA

LOAD = 1mA

LOAD = 10mA

LOAD = 100mA

LOAD = 200mA

Figure 7. Output Voltage vs. Input Voltage

300

200

100

–40

–5

125

JUNCTION TEMPERATURE (°C)

LOAD = 10µA

LOAD = 100µA

LOAD = 1mA

LOAD = 10mA

LOAD = 100mA

LOAD = 200mA

Figure 8. Ground Current vs. Junction Temperature

100

0.01

1000

100

0.1

ILOAD (mA)

Figure 9. Ground Current vs. Load Current

VIN (V)

100

3.6

3.8

4.0

4.2

4.4

4.6

4.8

5.0

5.2

5.4

LOAD = 10µA

LOAD = 100µA

LOAD = 1mA

LOAD = 10mA

LOAD = 100mA

LOAD = 200mA

Figure 10. Ground Current vs. Input Voltage
