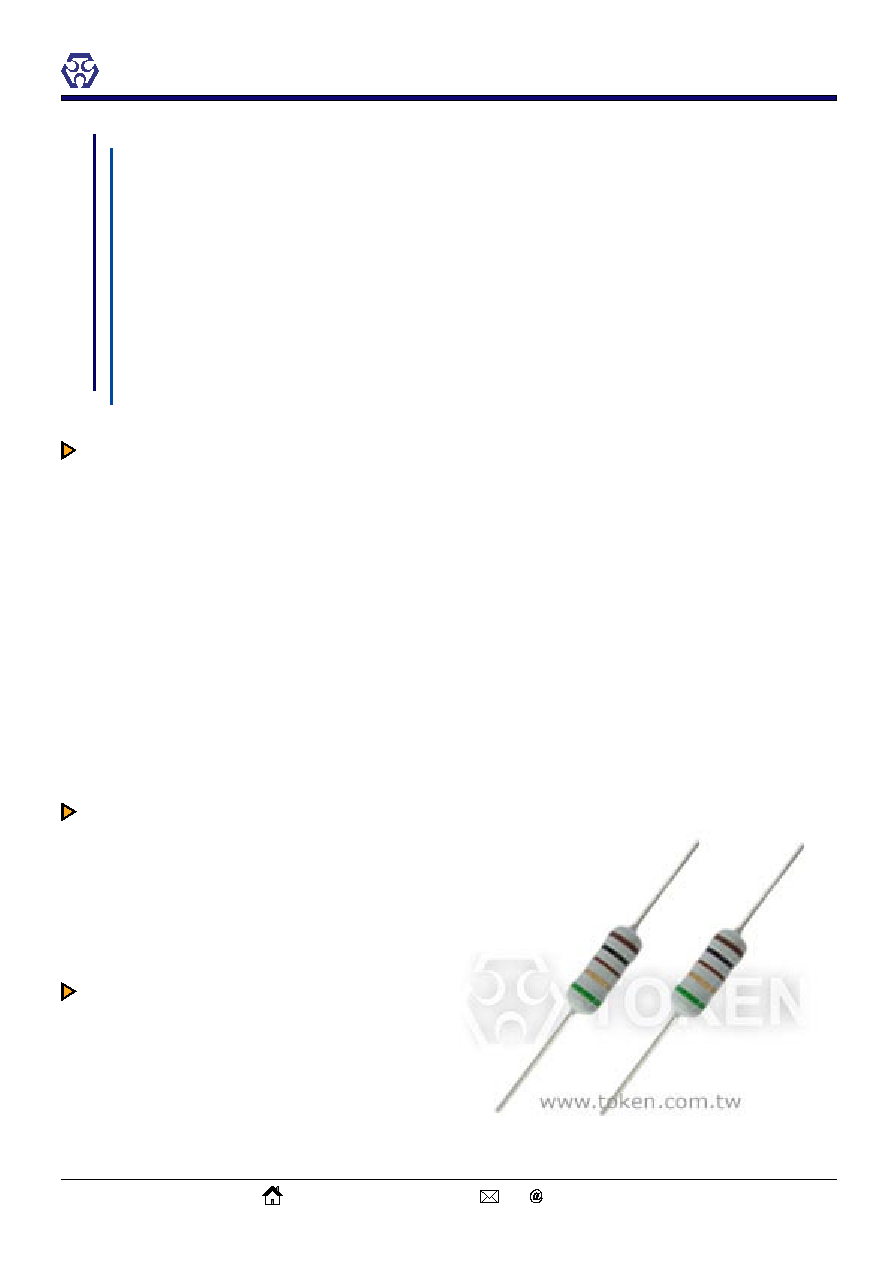

Token Electronics has introduced a non-inductive version KNPN Series of conformal coated, leaded wire-wound

resistors.

The KNPN series offers the expected performance of a wire wound resistor with the added characteristic of

vastly improved inductance, making it suitable for high-switching applications.

Wirewound technology has long been known as a leading technology for power resistor needs though it is

inherently inductive. Known as Ayrton Perry winding, a non-inductively wound wirewound has one winding in

one direction and one in the other direction.

By using a non-inductively wound version this greatly reduces the inductance of any given resistor size and value

combination; however, it does not completely eliminate the inductance.

This non-inductive winding is available in all standard KNPN sizes from 0.5 watts up to 6 watts with options

1%, 2% and 5% tolerance. The KNPN series is RoHS compliant and also can be supplied with radial, goalpost or

lancet preformed leads.

To address your need for technical and economic success in a timely manner, our custom solutions are available.

KNPN Non-inductive Resistors

Applications

- Power tools

- Current sensing

- Consumer applications

- Power supplies, Welders

- High voltage applications

- High-switching applications

- Home entertainment, appliances

Non-inductive Wirewound Resistors

Improves Inductance for High Frequency Applications

Non-inductive

Wirewound Resistors

Features

- Low cost

- Excellent pulse load capability

- Non-inductive Ayrton Perry winding

- A wide resistance range 0.1Ω to 50Ω

- Operating temperature range -55°C ~ 155°C

- A wide range of power ratings 0.5W to 6W

- Products with Pb-free Terminations and RoHS compliant
