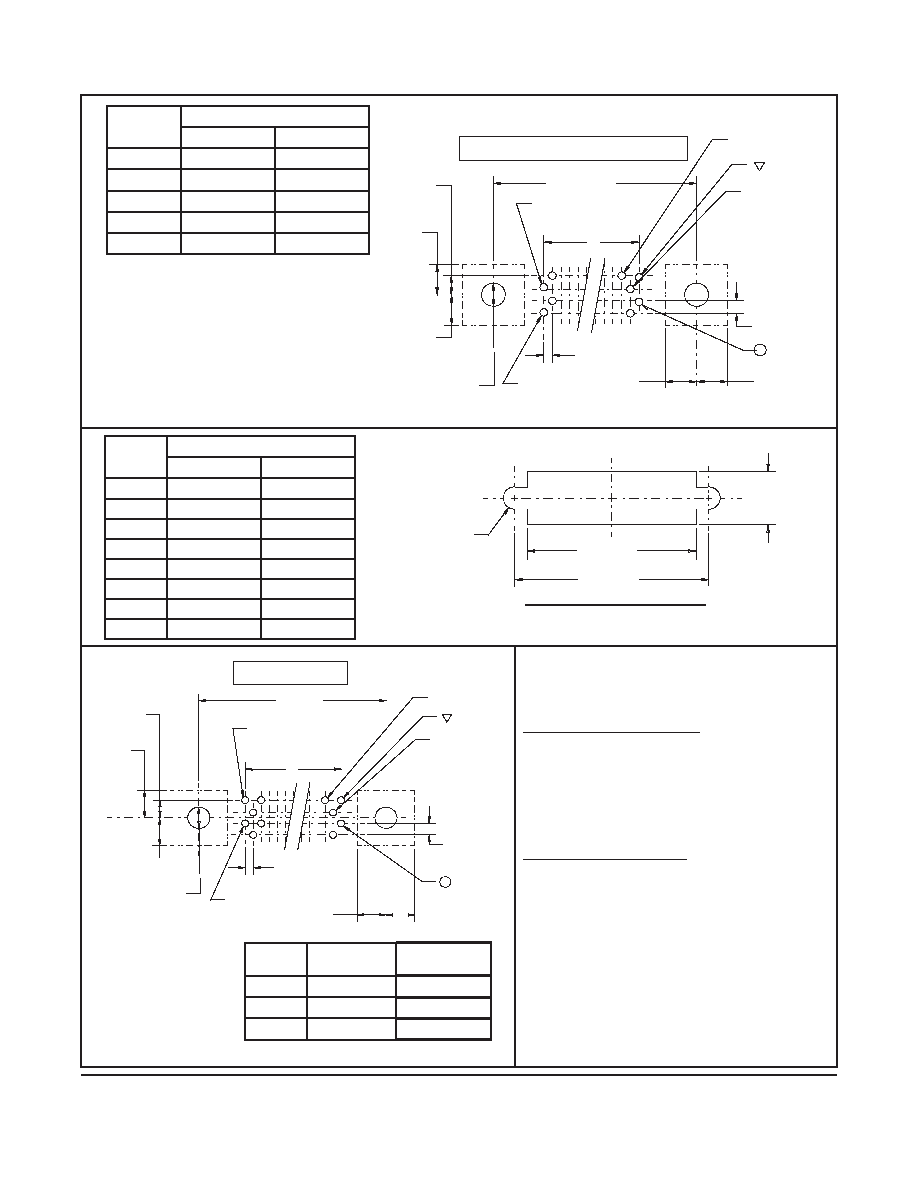

.050” Boardmount Compliant Pin Vertical Receptacle - Shielded

102 Series

TS-0961-C

Sheet 3 of 3

Contact

Quantity

Dimension

A

B

20

.450 [ 11.43 ]

.931 [ 23.64 ]

36

.850 [ 21.59 ]

1.481 [ 37.61 ]

40

.950 [ 24.13 ]

1.581 [ 40.15 ]

68

1.650 [ 41.91 ] 2.281 [ 57.93 ]

80

1.950 [ 49.53 ] 2.581 [ 65.55 ]

A

Hole size: See note

Position 3

Position 1

Position 2

2x0.112

[ 2.86 ]

.2

[ 5.0 ]

2x0.20

[ 5.0 ]

Last Position

.050 Typ

[ 1.27 ]

2x0.20

[ 5.0 ]

2x0.16

[ 4.0 ]

.075 Typ

[ 1.90 ]

20, 36, 40, 68 and 80 position

2X ∅ .118 ± .003

[ 3.0 ]

(See Note*)

Position

B ± .004

*Note: Plated-through mounting holes

C ± .004

D ± .004

Note: Panel thickness .079 [ 2.00 ] Max.

R .060

[ 1.52 ]

.340 ± .004

[ 8.64 ]

Recommended Panel Cut-Out

A

.20

[ 5.00 ]

B ± .004

Hole size: See Notes

.050 Typ

[ 1.27 ]

2x0.20

[ 5.0 ]

2x0.16

[ 4.0 ]

Last Position

2X ∅ .118 ± .003

[ 3.0 ]

(See Note*)

Position 3

Position 1

Position 2

2x0.112

[ 2.86 ]

.075 Typ

[ 1.90 ]

2x0.20

[ 5.0 ]

Position

14, 26, 50 pos only

Recommended Board Layout Viewed from Connector Side

Contact

Quantity

Dimension

C

D

14

.78 [ 20.0 ]

.93 [ 23.64 ]

20

.94 [ 23.9 ]

1.08 [ 27.45 ]

26

1.09 [ 27.6 ]

1.23 [ 31.26 ]

36

1.33 [ 33.9 ]

1.48 [ 37.61 ]

40

1.44 [ 36.5 ]

1.58 [ 40.15 ]

50

1.69 [ 42.8 ]

1.83 [ 46.50 ]

68

2.13 [ 54.2 ]

2.28 [ 57.93 ]

80

2.44 [ 61.9 ]

2.58 [ 65.55 ]

Contact

Quantity

A

B

14

.300 [ 7.62 ]

.931 [ 23.64 ]

26

.600 [ 15.24 ] 1.231 [ 31.26 ]

50

1.200 [ 30.48 ] 1.831 [ 46.50 ]

Notes:

1. Listed below are the PCB hole sizes and tolerances recommended for

use with the 3M MDR Compliant Pin Vertical Receptacle. The insertion

force is designed not to exceed 147N (33lbs) per pin

Recommended Hole Size in Millimeters:

For Copper plus Pre-Flux Coated PBC Holes

Option 1

a. Drilled Dia. 0.85 +0/-0.020 mm

b. Finished Dia. 0.68 to 0.79 mm

c. Cu Plating 0.025 mm minimum

Option 2

a. Drilled Dia 0.80 +0.025/-0.020 mm

b. Finished Dia 0.68 to 0.78 mm

c. Cu Plating 0.025 mm minimum

For Copper and Solder Plated PCB Holes

Option 1

a. Drilled Dia. 0.85 +0.03/-0.03 mm

b. Finished Dia. 0.65 to 0.81 mm

c. Tin Lead Plating 0.015 mm maximum

Option 2

a. Drilled Dia0.80 +0.02/-0.02mm

b. Finished Dia0.68 to 0.81mm

c. Cu Plating0.015mm minimum

2. Board thickness: .095 ± .010 to .125 ± .010

3. Assembly Tooling:

(See Ordering Information)

*Note: Plated-through mounting holes
